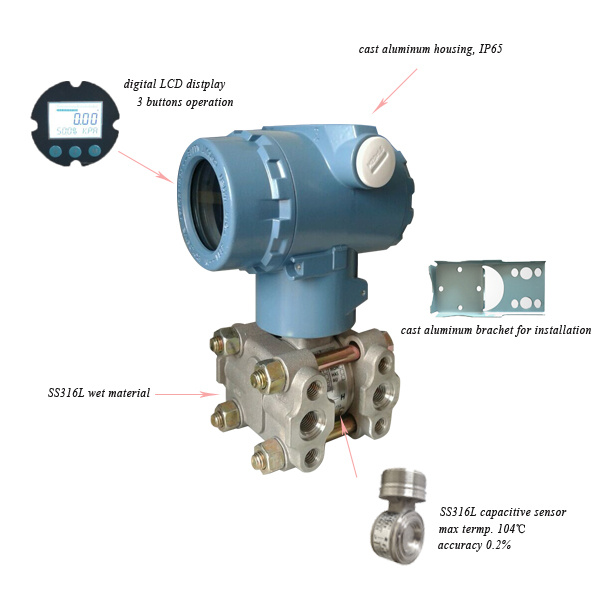

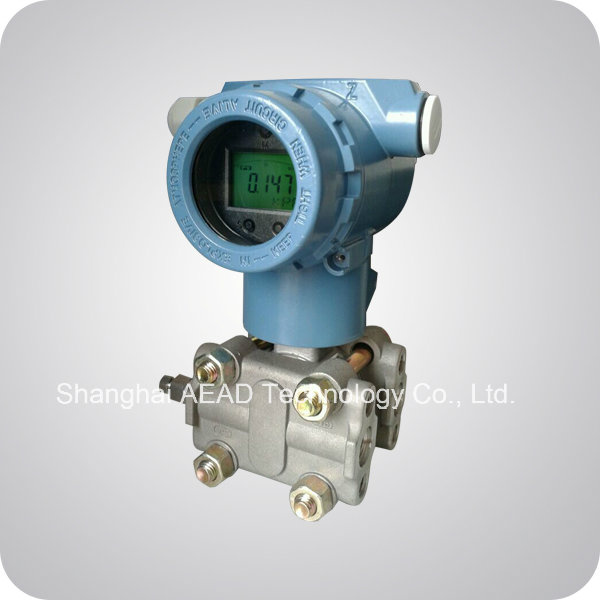

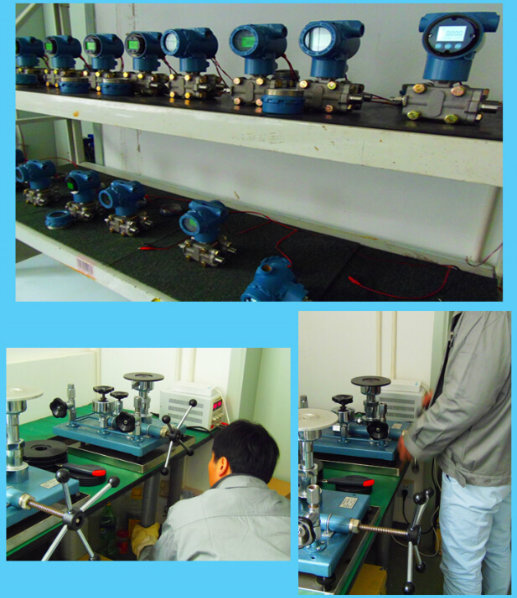

Hart Capacitive 4-20mA Differential Pressure Transmitter (A+E-920C)
The Hart Capacitive Differential Pressure Transmitter adopts advanced integrated circuit and surface mounting technique. Compared with analog transmitter, the differential pressure transmitter has more functions like communication, test and configuration, etc. It has improved standard accuracy and temperature compensation to enhance the quality.
1. The differential pressure transmitter adopts advanced digital technique and frequency phase shift keying craft so that make the connection of site and control room more convenient.
2. Besides remote communication, the differential pressure transmitter possesses measuring range self-adjusted, zeroing button. The transmitter could be adjusted after mounted.
Differential Pressure Transmitter Specification| Applicable media | liquid, gas and steam |
| Output | two wire 4-20mA direct current signal with HART digital signal |
| Supply voltage | DC12-45V, generally DC24V |
| Load resistance | Max load 600Ω |
| Display | Pointer or digital LCD optional |
| Zeroing | With button on transmitter or by HART operator |
| Alarm | Self-diagnostic program |
| Process temperature | -40 to 104ºC for sensor, -40 to 85ºC for circuit |
| Ambient temperature | -40 to 55ºC |
| Starting time | < 2s |
| Damping | 0-16s, resolution 0.1s |
| Accuracy | 0.25% |
| Stability | Within 0.2% in 12 months |
| Temperature impact | < 0.3% full scale |
| Static pressure impact | Revised |
| Vibration impact | 0.1% full scale |
| Power impact | < 0.005% |
| Material | SS316 or bespoke |
| Cable inlet | M20*1.5 or 1/2NPT |
| Net weight | 3.5kg |
| Protection | IP65 |
| Ex-proof | Exd II CT4 or Exia II CT6 |
Measuring range | 2E | 0-0.16~1kPa |
| 3E | 0-1~6kPa |
| 4E | 0-6~40kPa |
| 5E | 0-40~200kPa |
| 6E | 0-0.16~1MPa |
| 7E | 0-0.4~2.5MPa |
| 8E | 0-1.6~8MPa |
| 9E | 0-4~20MPa |
| 0E | 0-6~40MPA |
| HP4E | 0-6~40kPA |
| HP5E | 0-40~200kPA |
| HP6E | 0-1.6~1MPA |
Different Pressure Transmitter Installation
The transmitter would be used to measure flow, level and other situation where need accurate pressure or differential pressure. Correct installation will affect the measured result. To get better performance, the transmitter should try to avoid great temperature change, impact and vibration conditions.
*Note: Measuring media must not be frozen. Otherwise the sensor would be damaged.
