| Prod Model: |
HP5 |
| Sizes: |
Customized |
| Price: |
Best |
| Quality: |
High |
| Application: |
Insulators |
| Type: |
Insulation Sleeve |
| Material: |
Mica |
| Maximum Voltage: |
<10KV |
| Chemistry: |
Electric Insulation |
| Thermal Rating: |
800 |
| Classification: |
Mica Insulation Material |
| Certification: |
Ce |
| Color: |
White or Brown |
| Brand: |
Changfeng |
Product Description

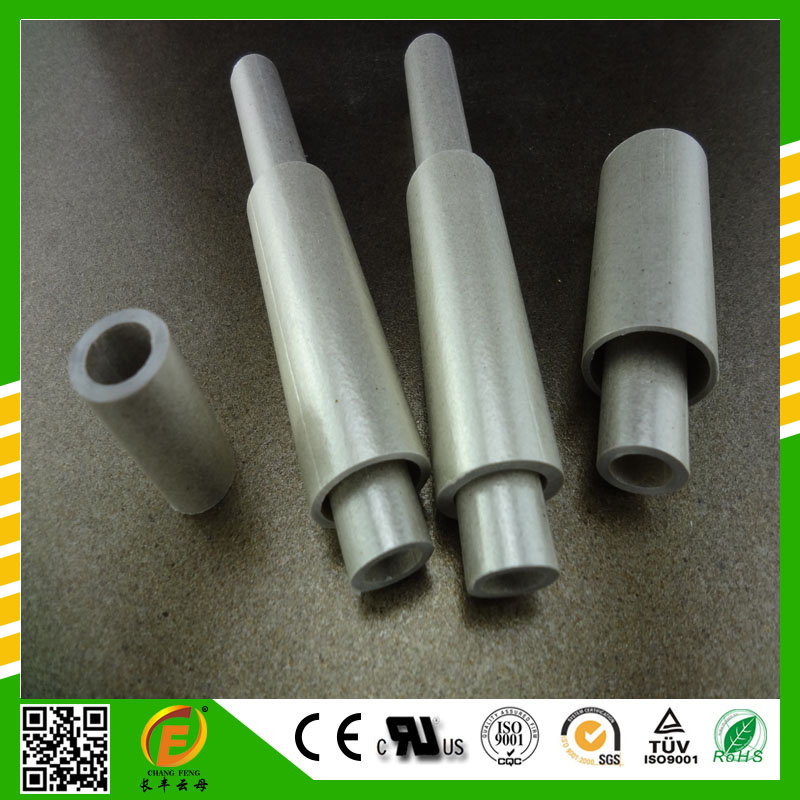

PRODUCT DESCRIPTIONThe mica tube is hard pipe insulation material prepared by using mica paper or splitting mica fixed with glue or by using mica paper glued on side of reinforced material, then processed rolling. It has excellent mechanical strength and electrical properties. It is suitable for all kinds of electric motors and electrical appliances electrical smelt furnace etc

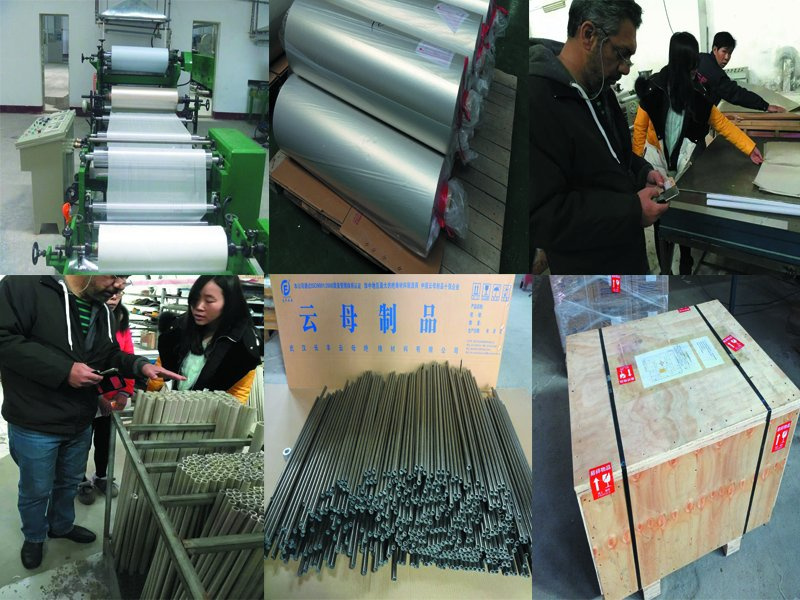

production process
Moscovite and phlogopite mica tubes with silicone resin. High temperature resistance, low thermal conductivity and excellent electrical insulation.
Type: Moscovite and Phlogopite
Thermal Class: 500º and 700º during non-stop operation, capable of withstanding peaks of 700º and 1000º
Formats:Diameters between 6 and 1000 mm.
Minimum thickness 0.5.
Lengths up to 1000 mm.
3.Diameter Deviation(mm)
Standard inner diameter |
Inner diameter deviation |
Outside diameter deviation |
<10mm |
±0.3mm |
±0.4mm |
10-20mm |
±0.4mm |
±0.5mm |
21-50mm |
±0.5mm |
±0.7mm |
51-100mm |
±0.6mm |
±1.0mm |
101-200mm |
±0.8mm |
±1.2mm |
201-300mm |
±1.0mm |
±1.5mm
|

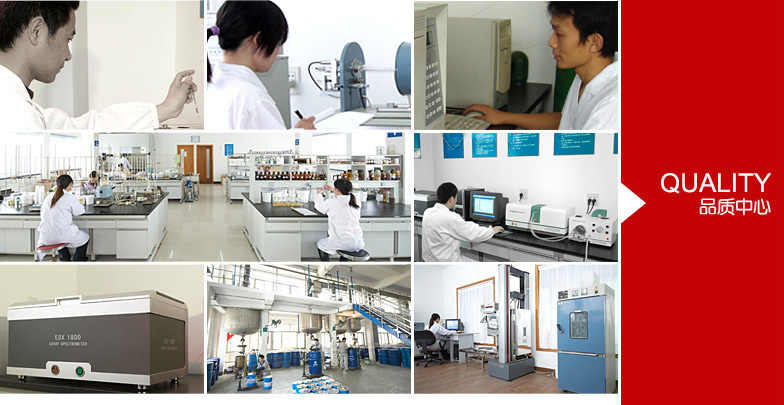

quality center
our serviceService advantages:
From the quotation, making sample to proceeding production, until shippment.We will let you know the each process clearly by emails or Phones.And we will also offer you more considerate after-service if you have any question for using the products
FAQ1.Q Can I have a sample order?
A: Yes,for mica tube, sample order is available.
2.Q: What is the lead time?
A: Usually 7-10 days, also according to the order volume.
3.Q: Do you have MOQ limit?
A: No, there is no MOQ limit for mica tube.
4.Q: How do you ship the goods and how long does it take?
A: We usuaUy ship by CIF or FOB Shanghai,wuhan it will take 20-25 days.
For samples, we usually delivery by DHL or TNT or FDX, it will take 3-5 days.
5.Q: How do you pack the goods?
A: We usually pack goods by non fumigation wooden pallets. For special needs, Iron pallet is available.
6.Q; We want to visit your company?
A: Of course you can,we look forward to your arrival and we will lead you to visit our factory.
Located in Qingshan District,Wuhan City,adjacent to Wuhan iron and steel group,Wuhan Changfeng mica insulating material co.,Ltd.Formerly known as Wuhan insulating material factory,now is the largest manufacturer of mica insulating material in central China.The company also assumes the position of vice president of insulating material branch of China electrical equipment industry Association.Furthermore,it is a high-tech enterprise in Hubei province,and one of the organizations that draft that national standard of insulating material.
The company owns two production factories,the most advanced equipment for mica deep processing production line,detecting instruments,manufacture technologies and R&D bases in domestic.Necessary equipment for R&D and test are also equipped,including nearly 50 detecting devices.Key technologies and equipment are introduced from Japan,German,etc.In addition,the production capacity of the company ranks top in the country,and is one of the key production bases of mica material in China.
The company is devoted to the R&D ,Manufacture and sales of high-temperature-resistant mica insulating material,and boasts the capacity to manufacture high-quality mica papers,mica tapes,mica tubes,mica gasket,mica sheets,specially-shaped mica parts and 3240 epoxy glass-cloth laminated products.The company also provide high-temperature-resistant mica insulating parts suitable for high temperature electrical furnaces such as line frequency furnaces,intermediate frequency furnaces and furnaces for silicon production.The temperature electrical furnaces such as line frequency furnaces,intermediate frequency furnaces and furnaces for silicon production.The company is designated manufacture of several domestic steel enterprises,including Wuhan iron&steel Group ,baosteel and benxi steel group.The products manufactured by the company are widely applied in high-temperature insulating industries like iron& steel ,motor,household appliances,aeronautics,petroleum,chemical engineering,metallurgy,subway,rolling stock,power line and cables.
Adhering to the development road integrating enterprise,universities and research institutes,the company has established enterprise-university R&D with Hubei chemicals research institute,Wuhan university of technology and xi 'an Jiaotong university.Therefore,the company has a R&D team composes of doctorates,masters and undergraduates which possesses vast experience and capacity of technical innovation in R&D and application of products.The company ' s capacity to develop new products ranks top in its peers.
Since its founding,the company has administered and operated itself in strict accordance with modern enterprise system.Therefore,it has realized rapid development.Now the company boasts annual production of mica paper 1,800 tons,mica plate 2,000 tons,mica tape and other mica products 800 tons.The company and its products have been accredited and certified by ISO 9001,UL,SGS,TUV,etc.In addition,the company boasts the strongest R&D team in mica products in domestic,in which a number of experts have engaged in mica business for over 40 years,over 20 senior and intermediate personnel engage in the R&D,manufacture and application of mica insulating material.These team members are the leading figures and core force in the technical research and manufacture of mica insulating material.
The company always sticks to the philosophy"quality and user come first ;Reputation is the core and abide by the contract"relying on the high-quality,good reputation and excellent service of the company,the products are sold to nearly thirty province,cities,and autonomous regions in domestic and to the countries in Asia,Europe,Oceania and Africa.The company serves the user with high-quality and fair-prices products as well as first-rate after-sales services.The company would like to cooperate with enterprises at home and abroad to develop jointly and create a brilliant future together.
