| Prod Model: |
TP-14.0H-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Swimming Pool |
| Type: |
Heat Exchanger Tube |
Product Description

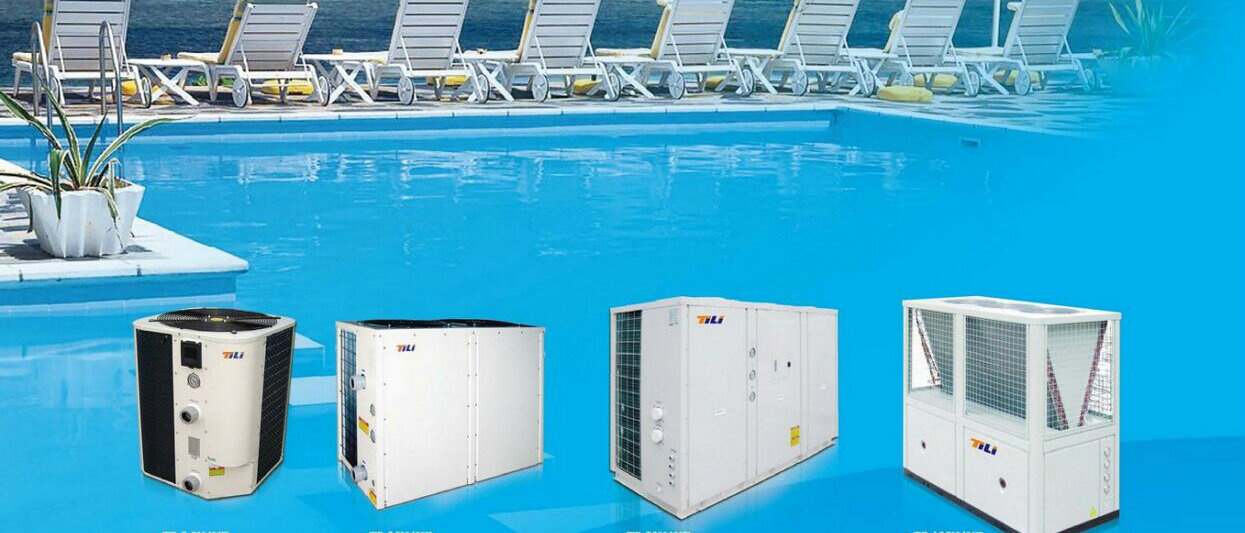

Heat pump, Swimming pool heat pump, Air heat pump, Swimming pool water heater, heating and cooling.
Heating: 14~26Kw, Cooling: 9~18Kw
Certificate: CSA, CE, MEPS.
| Code: R410a | TP-14.0H-A | TP-17.0H-A | TP-26.0H-A-S |
Measuring Coditions
A 24 Deg W 26 Deg | Heating Capacity (KW) | 14 | 17 | 26 |
| Input Power (KW) | 2.8 | 3.54 | 5.2 |
| Running Current ( A ) | 12.7 | 16.1 | 8.6 |
| C. O. P | 5 | 4.8 | 5 |
Measuring Coditions
A 15 Deg W 26 Deg | Heating Capacity (KW) | 11.9 | 13.9 | 22.1 |
| Input Power (KW) | 2.77 | 3.39 | 5.14 |
| Running Current ( A ) | 12.6 | 15.4 | 8.48 |
| C. O. P | 4.3 | 4.1 | 4.3 |
Measuring Coditions
A 7 Deg W 26 Deg | Heating Capacity (KW) | 10.5 | 11.9 | 19.5 |
| Input Power (KW) | 2.7 | 3.2 | 5 |
| Running Current ( A ) | 12.3 | 14.5 | 8.25 |
| C. O. P | 3.9 | 3.7 | 3.9 |
Measuring Coditions
A 35 Deg W 29 Deg | Heating Capacity (KW) | 9.5 | 10.2 | 17.3 |
| Input Power (KW) | 3.3 | 3.8 | 5.96 |
| Running Current ( A ) | 15 | 17.3 | 9.83 |
| EER | 2.9 | 2.7 | 2.9 |
| Power Supply | (V/PH/Hz) | 220~240V/1PH/50Hz | 380~400V/3PH/50Hz |
| Max Heating Input | (Kw) | 3.3 | 4.1 | 5.98 |
| Max Heating Current | (A) | 15 | 18.6 | 9.9 |
| Max Cooling Input | (Kw) | 3.8 | 4.27 | 6.85 |
| Max Cooling Current | Inch | 17.3 | 19.4 | 11.3 |
| Compressor | | Rotary | Scroll |
| Input Power of Fan | W | 220 | 220 | 220 |
| Fan Speed | RPM | 830 | 830 | 830 |
| Noise | DB(A) | 55 | 55 | 57 |
| Water Connection | (mm) | 50 | 50 | 50 |
| Water Flow Speed | (m3/h) | 4~8 | 4~8 | 7.5~11.5 |
| Water Pressure Drop | (Kpa) | 14 | 16 | 16 |
| Unit Dimension | (mm) | 660/660/860 | 660/660/860 | 660/660/960 |
| Packing Dimension | (mm) | 700/740/1010 | 700/740/1010 | 700/740/1110 |
| Net weight/Gross weight | (Kg) | 104/112 | 107/119 | 112/125 |
Founded in the year 1991, Guangdong Tili Refrigeration Equipment Co., Ltd. (hereinafter referred to as "Tili") has more than 20 years history in refrigeration industry.
Who we are:
Tili specializes in supplying HVAC products because it is built up to meet customers' specific needs with professional skills in controlling the quality of the products and manufacturers. From product design, raw material sourcing inspection and production management to quality control, logistics, shipping and other important functions, its spectrum of services covers the entire supply chain end-to-end.
Our products:
With advanced equipments, experienced engineer team, qualified supplier management team and professional marketing team, Tili offers series of energy saving products, including air/water cooled chillers, air/water source heat pumps, multifunction heat pumps, heat recovery units, screw type chillers and fan coil units, which are welcome by customers all over the world.
Why choose Tili:
1. With HVAC background for more than 20 years, we understand HVAC business and the China business process
2. We have experienced techinal teams which master your products and keep good control of the quality of the products.
3. We work for you, our client, exclusively we are your eyes and ears on the ground in China
4. We are a group company with 25 years history. We can cooperate with you in a flexible way, giving you safeguard with great honest.
5. We speak the language, our sales team provide you with professional service before and after sales.
6. We work with the best in the industry to offer a turnkey solution!
Choose Tili, choose success!
With advantage of these vast benefits, tili is ready to establish good partnership with the worldwide corporations. With your interest and passion in this business, please enjoy a long lasting business partnership with Tili.
Tili' Great Achievements:
1.1997, authorized to be sole agent of Panasonic Rotary compressor in China
2.1999, authoirized to be general agent of Daikin scroll compressor
3.2000, authorized to be general agent of LG rotary compressor
4.2003, authorized to be general agent of Daikin Refrigerant in China and agent of Panasonic Automotive A/C compressor
5.2010, authorized to be distributor on Danfoss products
6.2014, authorized to be agent of McQuay J&E Hall screw compressor
7.2015, authorized to be dealer of Ingersoll Rand Compressed Air Systems
