Hfbr-4503/4513 Patchcord

Hfbr-4503/4513 Patchcord
Price: US $ 3.5-500/Set
Min Order: 5/Set
Pay Type: T/T,Western Union,Paypal,Money Gram
1.Applications
1)Industrial automation control system
2)Industrial robot system and servo system
3)Communication system
4)Digital multimedia systems
5)Medical sensor system
6)Power system, etc


2.Features
1)Light in weight\energy saving and safe
2)High bandwidth\excellent flexibility\vibration resistance
3)Anti-electromagnetic interference\stable and reliable signal transmission
4)Heat and code resistant(-20- 70 Celsius Degrees)
5)Easy to install and connect, maintenance easily
6)Complied with YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard.


3.Technical Parameters
ParametersUnitNumerical value
Fiber diametermm0.75/1.0/1.5
Cable diametermm2.2± 0.1  / 1.0± 0.05
Fiber material---PMMA
Jacket material---PE
AttenuationdB/m≤ 0.2
Insertion lossdB< 0.5
NA---0.5
Wavelengthnm650
Incident angle---≤ 60°
BandwidthMHz@ 100m≥ 10
Cable lengthm1~100m to order
Bend radius---≥ 10 times of fiber dia.
Operating temperatureCelsius Degrees-20~70
Storage temperatureCelsius Degree-20~70
Refractive index---Step index

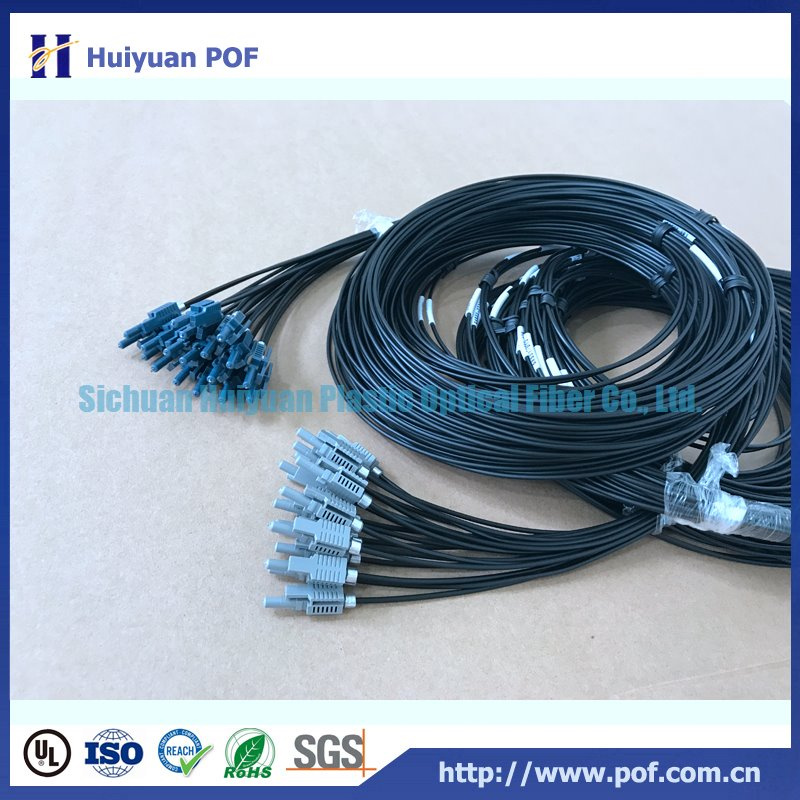

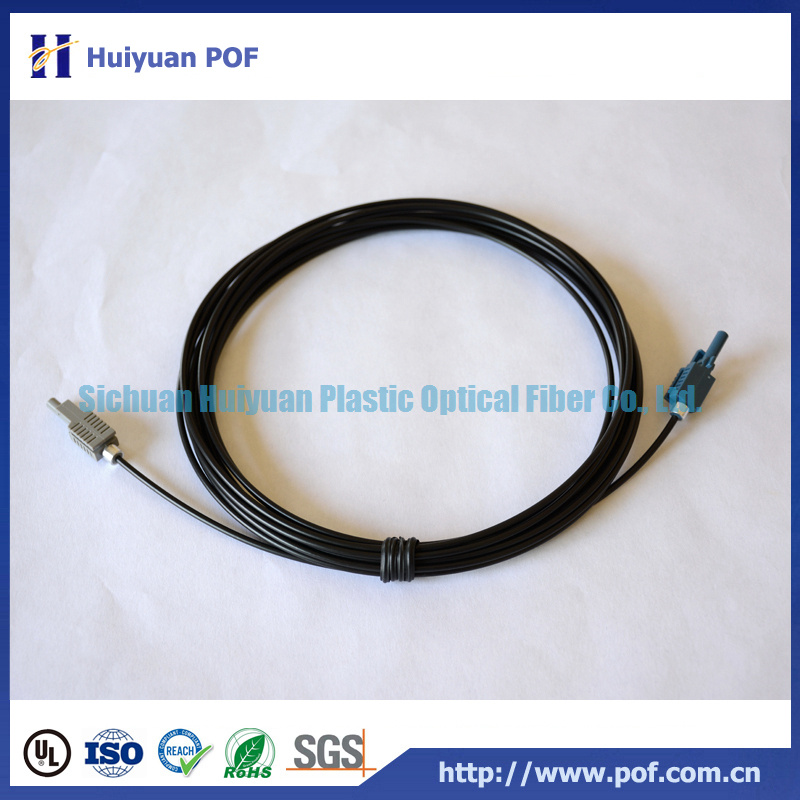

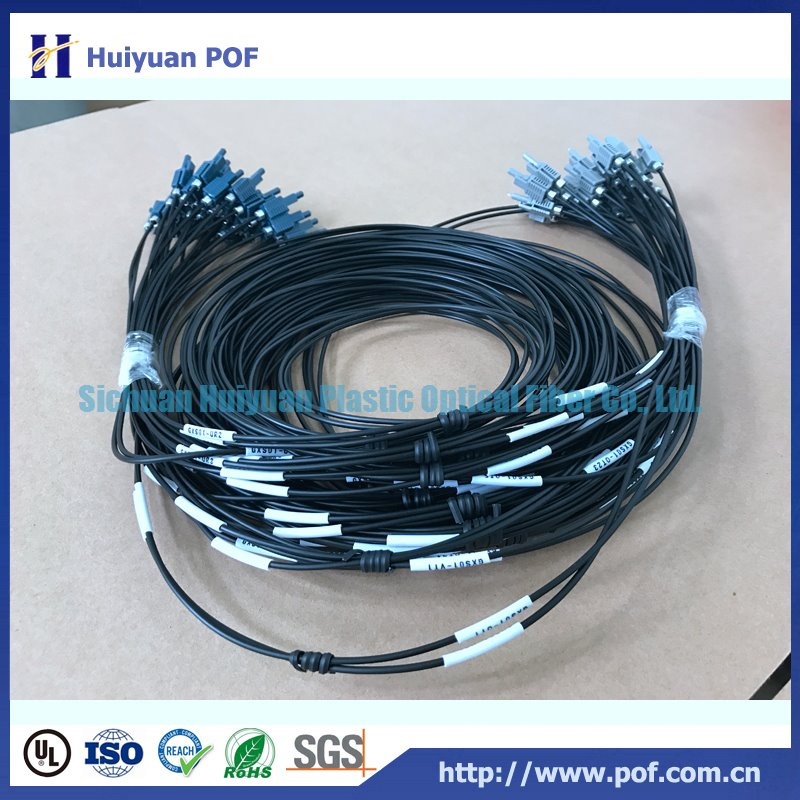

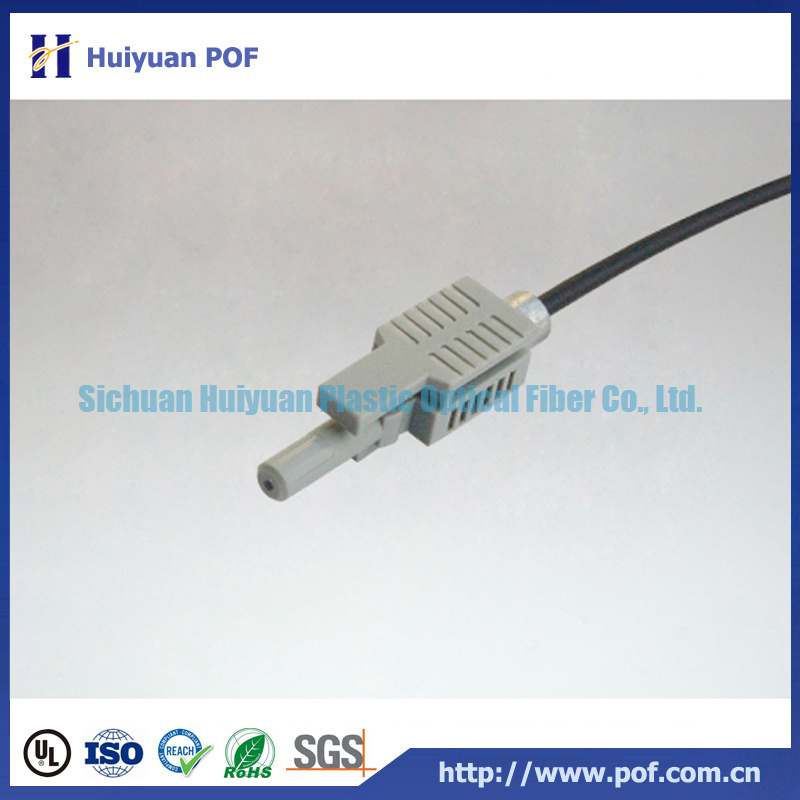

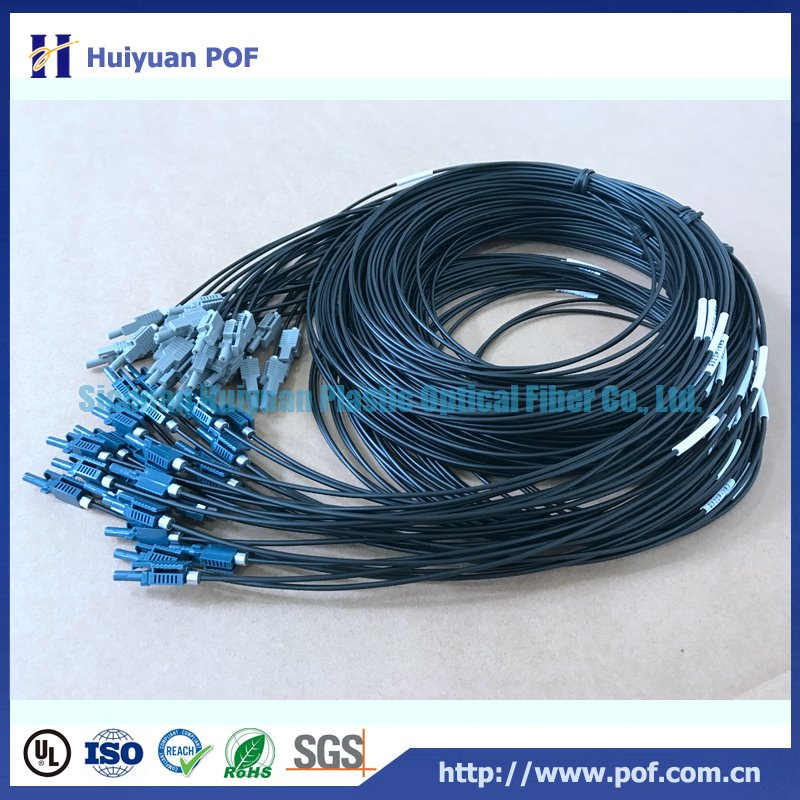

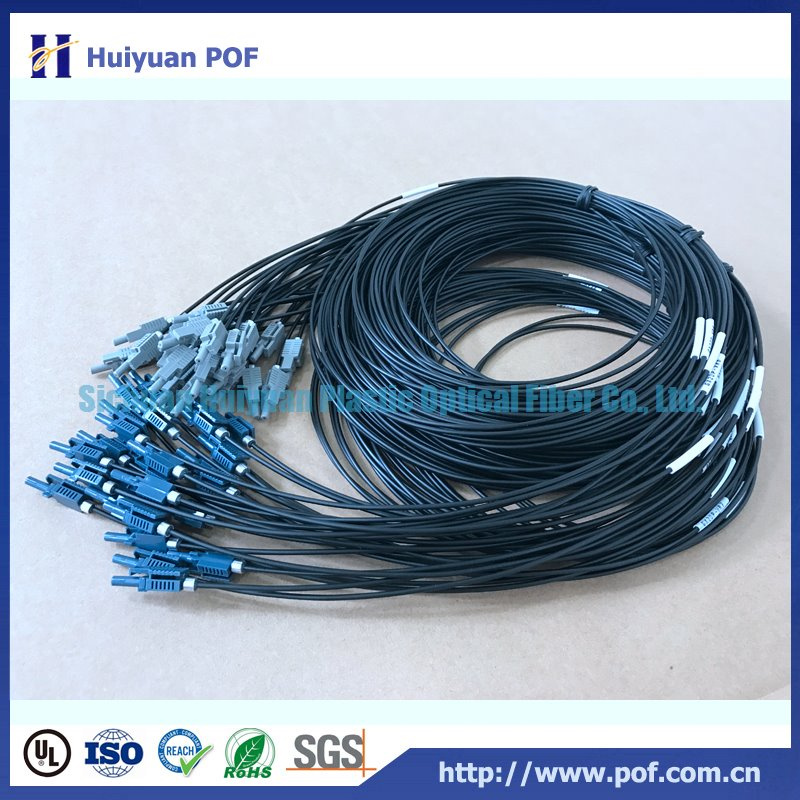

4.Product pictures













Prod Model: HFBR-4503/4513
Length: 2m/Piece or Customize
Transmission Medium: Multimode
Number Of Cores: Single-Core
Structure: Hfbr Series
Ferrule Endface: Customized
Connector Type: Hfbr Connectors
Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
