Hh52p Relay 8 Pin Dpdt My2 Relay 12V
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |

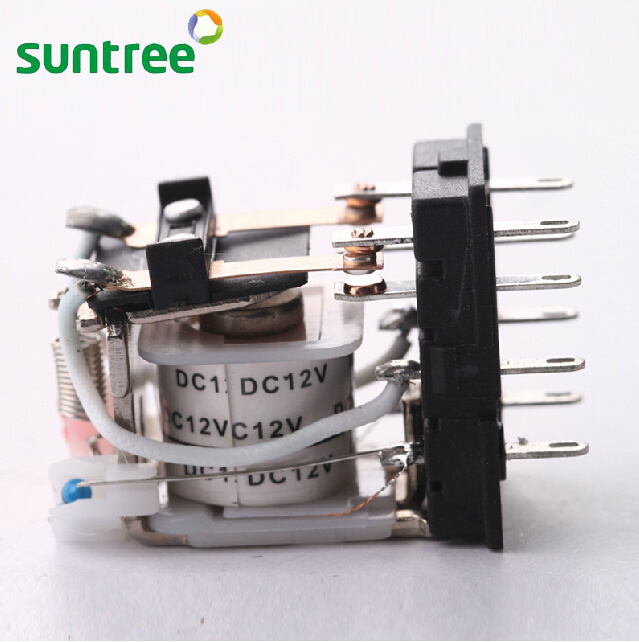

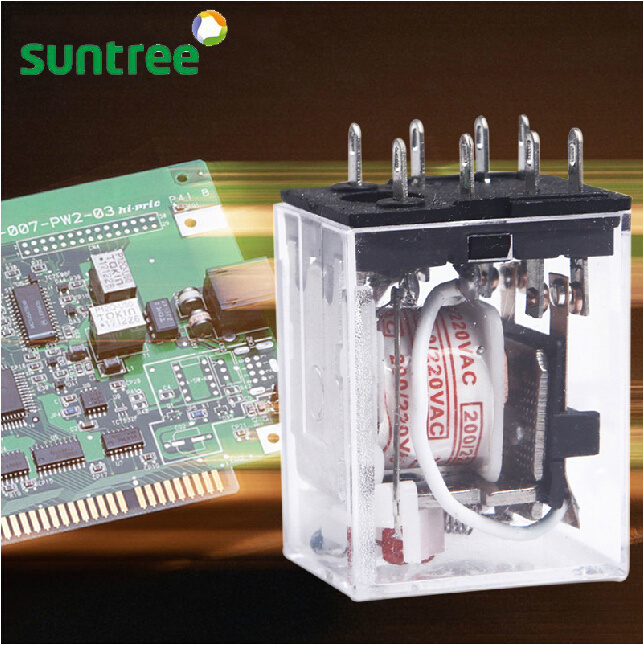

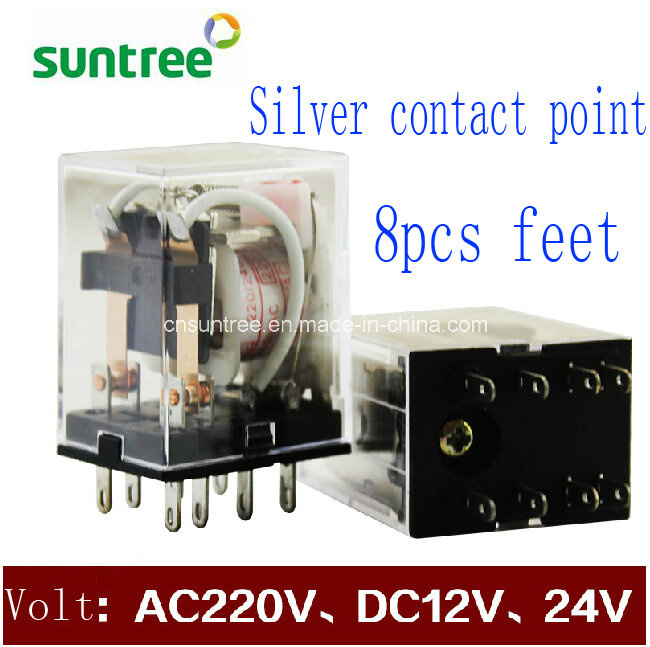

HH52P relay 8 PIN DPDT MY2 relay 12v
Description
The HH52, 53 and 54 are a series of miniature general purpose relays
specially designed for users demanding small size, sturdy construction and
high electrical capacity. Mechanisms are furnished in polycarbonate dust-proof
enclosures and are recommended for a multitude of electrical control applications for their reliability and
compact size.Continuous duty coils, either AC or DC
are available for voltages up to 240V AC or 120V DC.
Contacts can be supplied in 2PDT, 3PDT, 4PDT arrangements.
Continuous current ratings are 3, 5 and 7 Amps. Many terminal types are available for solder,
plug-in or printed circuit board mounting.
Features
3, 5 and 7 Amp. contacts
2PDT, 3PDT and 4PDT
Reliable operation, long service life
High dielectric strength
Solder, PC board, wire wrap and
screw terminal socket
AC or DC coils
Barriered contacts for opposite polarity available
Dust proof enclosures
Features:
Size (mm):20.5×27×33.4
Terminal layout:2Z
Contact capacity:5A 220VAC/5A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/BCC 1500VAC
Specification:
| Product Model | HH52P (MY2NJ) |
| Outline Dimension(L×W×H) (mm) | 27.5×21×35.5(mm) |
| Contact Form | 2Z,2C |
| Initial Contact Resistance | 50mΩ (1A 6VDC) |
| Coil Voltage | 5VDC~110VDC; 6VAC~240VAC |
| Operate Time (at nomi. Volt) | 25ms |
| Release Time (at nomi. Volt) | 25ms |
| Coil Power(W) | 0.9W, AC:1.2VA |
| Contact Rating | 5A 250VAC/30VDC |
| Insulation Resistance | 1000MΩ,500VDC |
| Dielectric Strengh | Between Open Contact | 1000VAC 1min. |
| Between Coil and Contact | 1500VAC 1min. |
| Electrical Life | 1×105 |
| Mechanical Life | 1×107 |
| Max. Switching Voltage | 250VAC/30VDC |
| Max. Switching Current | 7A |
| Max. Switching Power | 210W/1750VA |
| Impact Resistance | Stability 100m/s2 Intensity 1000m/s2 |
| Humidity | 98% R.H.+40% |
| Temperature Range | -55~+70°C |
| Vibration Resistance | 1mm 50~55Hz |
| Construction | Dust vover |
| Technical Parameter | | | | | | | |
| Model | Coil | Electrical
life | Mechanical
life | Opetating
temperature | Weight | Mounting
methods |
| Rated voltage | Rated power |
HH52P
(MY2) | DC 6 to 220V | DC≤0.9W | 105OPS | 107OPS | -40°C~70°C | ≤32g | Printed-circuit
board, Flange,
outlet |
| AC 6 to 380V | AC≤1.2VA |
HH53P
(MY3) | DC 6 to 220V | DC≤0.9W | 105OPS | 107OPS | -40°C~70°C | ≤35g |
| AC 6 to 380V | AC≤1.2VA |
HH54P
(MY4) | DC 6 to 220V | DC≤0.9W | 105OPS | 107OPS | -40°C~70°C | ≤35g |
| AC 6 to 380V | AC≤1.2VA |
| Prod Model: |
HH52P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE / RoHS |
| Model: |
Complete |
| Shape Size: |
Miniature |
| Grade: |
a, B |
| Price: |
Competitive |
| Quality: |
Stable and Reliable |
| Quality Assurance: |
2 Years |
| Professional Manufacture: |
10years |
| Brand: |
Suntree/ OEM/ ODM |
