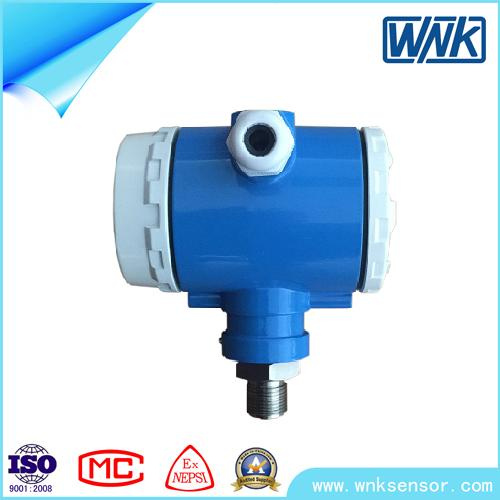

High Accuracy 0.075% Gauge/Absolute Flow Transmitter
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
WNK59 Smart Gauge/Absolute Pressure Transmitter| Features | Applications |
| 1. High reference accuracy up to 0.075%, higher on request. | 1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement. |
| 2. Long-term drift ≤±0.25%URL for 5 years. |
| 3. Range down ratio 100:1; higher on request. | 2. Level,volume or mass measurement in liquids. |
| 4. Replaceable display unit & electronic module. |
| 5. Universal electronics. | 3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow) |
| 6. Menu-guided operation. |
| 7. Factory default data recovery is supportive |
| 8. Hart, PROFIBUS-PA or FF protocol for option. | 4. High pressure up to 700bar. |
WNK59 Smart Gauge/Absolute Pressure Transmitter
Technical Data |
| Applicable media | liquid, gas and steam |
| Pressure range | -100KPa~70MPa |
| Accuracy | 0.075%, higher on request |
| Stability | ±0.25% of URL for 5 years |
| Temperature drift | ±0.045% of URL/10ºC |
| Output signals | 4~20mA, Hart, PROFIBUS-PA for option |
| Housing material | Aluminum14 |
| Mechanical connection | M20×1.5;G1/2;1/2NPT |
| Protection class | IP66/67 |
| Ex-proof | Exia II CT4, other option per request |
| Power Supply | 10.5-55V DC 10.5-30V DC |
| Ambient temperature | -40 to 85ºC,-40 to 80ºCfor LCD header |
| Storage temperature | -45 to 85ºC,-40 to 80ºC for LCD header ; |
| Measurement | with display: 95*126*52 (mm) |
| without display: 95*115*52 (mm) |
| Net Weight | 1.7kg (without bracket or process connection) |

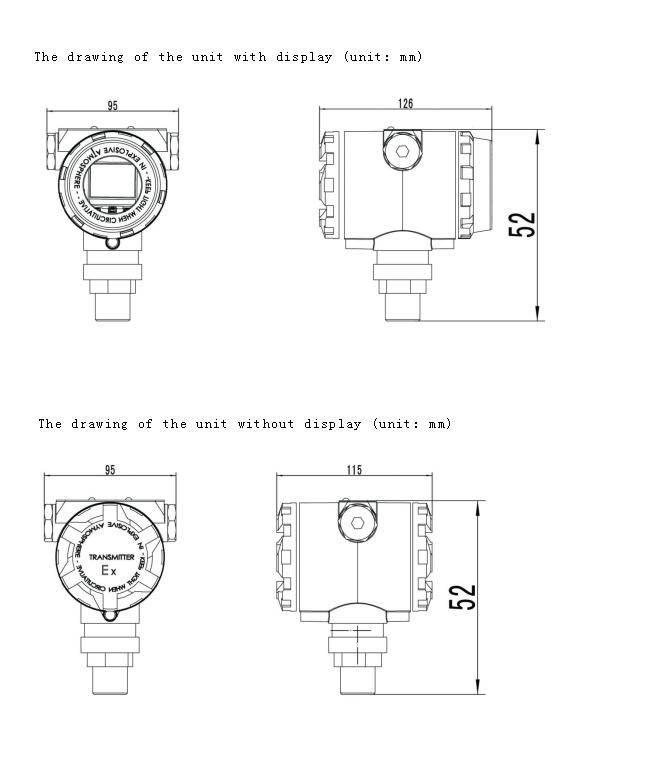

For more information, please contact us for product manual.WNK59 smart pressure transmitter
installation diagram (unit : mm)
Why Choose us?
1. we are manufacturer, with more than 12 years producing experience in our field.
2. Our produce quality is guaranteed, since 100% of all products we do temperature compensation and aging test before shipment. Customer specific requirement ODM/OEM is welcome.
| Prod Model: |
WNK59 |
| Range Down: |
100:1 |
| Output Signal: |
4~20m, 4~20mA/Hart, Profibus-PA |
| Housing Material: |
Aluminum Alloy |
| Stability: |
±0.15% of Url for 5 Years |
| Temperature Drift: |
±0.03% of Url/10oc |
| Protection Class: |
IP66/67 |
| Connection Type: |
M20*1.5,G1/2, 1/2NPT |
| Measuring Medium: |
Gas, Steam, Liquid |
| Accuracy Grade: |
0.075% |
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
