WNK05 Capacitive Pressure Sensor

Metal Capacitive Pressure Sensor has special sealing method. In the closed chamber it integrates a temperature diode which provide real-time temperature parameters for digital compensation circuit after the sensor. Thus, the sensor provide accurate temperature compensation. Accuracy level of transmitters manufactured through this method normally will be up to 0.1%.

WNK05 is widely used in Chemical, Power, Steel and other industrial field.

Sensor Technical Property
Accuracy Level:	0.1% 0.2% 0.5%
Annual Stability:	0.2% of Full Span
Temp. Range:	(-40~+104)ºC
Temp. Influence:	Zero error is ±0.25%/10ºC of span
Span Error:	±0.5%/10ºC of span

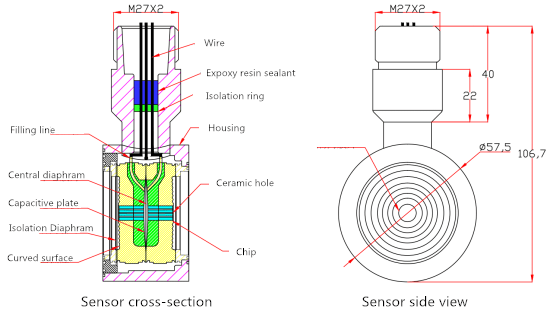

Sensor Cross-section and Side View - WNK05 Capacitive Pressure Sensor

Model No.	Product Specification
WNK05	Capacitive Pressure Sensor
code	Pressure type
G	Gauge
D	Differential
A	Absolute
H	High Static Pressure
Code	Sensor Rated Range
2	0-0.16~1kPa
3	0-1~6kPa
4	0-6~40kPa
5	0-40~200kPa
6	0-0.16~1MPa
7	0-0.4~2.5MPa
8	0-1.6~8MPa
9	0-4~20MPa
0	0-6~40MPa
Code	Accuracy
A	0.1%
B	0.2%
C	0.5%
Typical Model:WNK05D2A

Prod Model:	WNK05
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Industrial
Pressure Reference:	Gauge, Differential, Absolute, High Static
Compensation Temperature:	-20~70ºC
Accuracy Level:	0.1% 0.2% 0.5%
Annual Stability:	0.2% of Full Scale
Measuring Medium:	Liquid, Gas, Vapour
