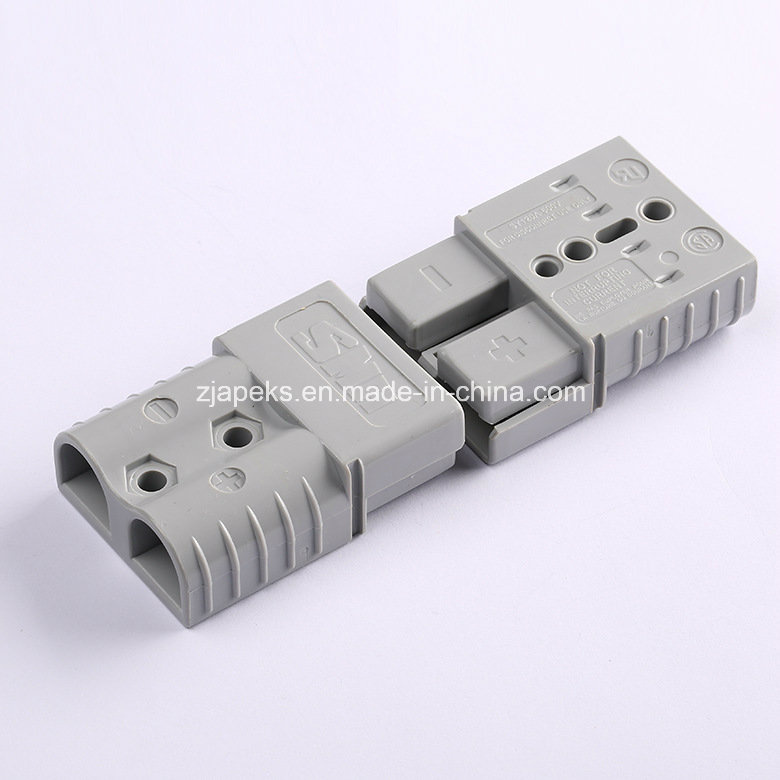

High-Current Forklift Connector High AMP Quick Connector Sb175 Connector
| Price: |
US $ 1.8-2/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
<1> Flat wiping contact systemMinimal contact resistance at high current, wiping action cleans contact surface during connection/ disconnection
<2>Structured color-codedPrevents accidental mating of components operating at different voltage levels.
<3> Interchangeable genderless designMakes assemble easy and reduces stock.
<4>Flexible applicationMeet cable to cable connection and cable to board requirement.
<5> Finger proofHelps prevent fingers (or probes) from accidentally touching live contacts.
<6> Molded-in dovetailsSecures individual connectors into "keyed" assemblies which prevents misconnection with similar configurations.
<7> Auxiliary contactsProvides additional poles up to 30 amps for auxiliary
<8> Horizontal/ Vertical mounting wings or surfaceExcept retaining pins, allows horizontal or vertical mounting.
<9> Molded side grovesAllows for a secure panel mounting fit.
<10> Locking dovetail designProvides positive mechanical spring latch, including lockable/un-lockable and other type.

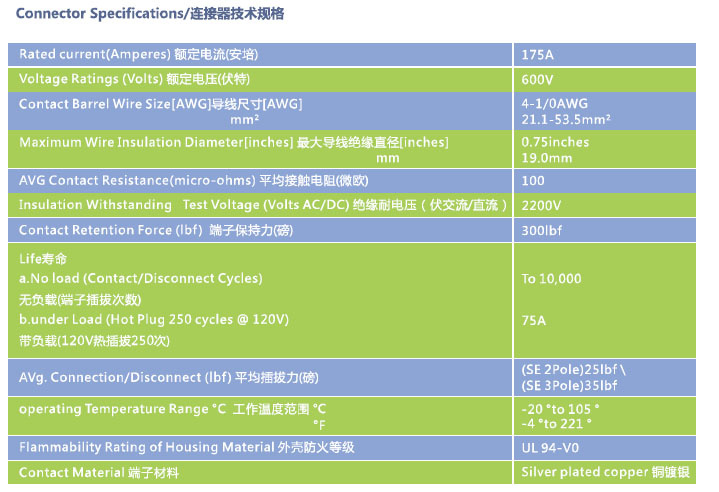

| Rated current (amperes): | 175A |
| Rated voltage (volts): | 600V |
| Contact barrel wire size (AWG) : | 1-4(AWG) |
| Contact material: | copper, plate with silver |
| Insulation material: | PC |
| Flammability: | UL94-V0 |
| Life | without load (contact/disconnect cycles): | To 10,000 |
| with load (hot plug 250 cycles & 120V): | 75A |
| Average contact resistance (micro-ohms): | <95 |
| Insulation resistance: | 5000MΩ |
| Average connection\disconnection(N) | 150N |
| Connector holding force(lbf) | 500 N Min |
| Environment temperatures(ºC) | -20ºC...+75ºC |
2.ApplicationsThis series of products meets strict UL, CUL, CCC certification which can be used safety in logistics communication, power-driven tools,UPS system Electric vehicles, medical equipment AC/DC power etc of widely industry and the most area around the world.
| Prod Model: |
SB175 |
| Type: |
Dual Hole Terminals |
| Material: |
Silver-Plated Copper |
| Application: |
Conduct Electricity |
| Brand: |
Smh/OEM etc. |
Apeks Electric Co., Ltd. is a specialist for industrial plugs, socket outlets and combination of distribution board system in China. We offer industrial electrical connection solutions in various fields, such as buildings and public works, mining, harbors, industrial equipments, transportation, chemical industry, entertainment/recreation and so on.
Our products cover industrial plugs and socket, aviation plug and connector, heavy duty connector, mini circuit breaker, distribution boxes and rotary switch, most of which have got the CE, CB, CCC and SEMKO approval and strictly conform to the international standard like IEC60309, IEC60898, IEC60947 etc. With reliable quality, competitive price, prompt delivery and good service, our products enjoy high reputation in the international market.
Apeks Electric Co., Ltd., an ISO9001 certificated enterprise, owns modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained technicians and skilled workers. We can self-design, develop and manufacture standard product ranges. Furthermore, we work out "tailor-made" solutions to meet the specific needs for our customers. We use latest generation materials and exploit the most innovating technologies in order to manufacture new products of high performances and to benefit existing products.
We have an individual mould workshop which has capacity in mold development, design, manufacturing and plastic injection. It produces about 300 sets of various types of mold per year. Standard workshop covers 2000 square meters, and it is well equipped with advanced CAD/CAM facilities, including CNC machining centers, EDM machine, wire-cutting machine, precision milling machine and grinding machine, various lathes and welding equipment. It has 20 staffs now including 5 professional engineers. Most of them have many years working experience in Taiwan-funded mould company. The technician team uses PRO-E, Solidworks, and Auto-CAD for moulds and plastic parts design, with strong mould design and drawing reading ability. These ensure good technical communication with our customers. Skilled and qualified QC can ensure the quality of our products.
Never losing sight of the need for safety, energy conservation, environmental protection and personal service, we promise to provide for and protect what came before us and what must remain after us. At Apeks, we look forward to serving you and believe that You simply get more when you choose Apeks.
