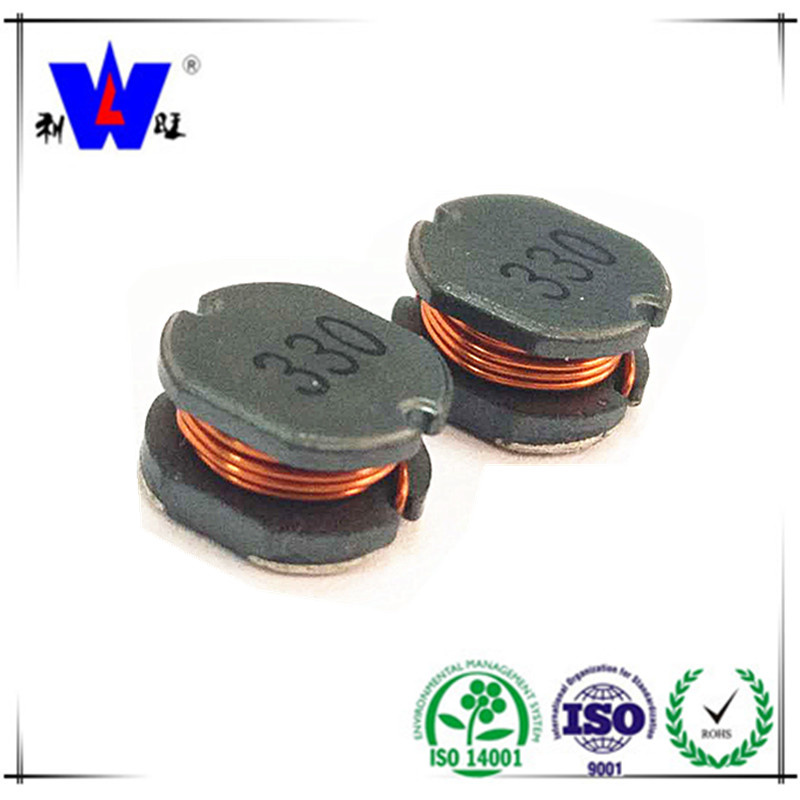

High Current SMD Inductor Coil Inductor

Name: High Current SMD Inductor Coil Inductor
Brand: all-electronics-online.com
SKU: 825016275
Availability: InStock
Rating: 4.4 (125 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CD
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Model Number:	Cdrh
Safety Certification:	CQC03003095~3097
Other Certification:	RoHS
Material:	Ferrite Core
Type:	Fixed Inductor
Structure:	Core
Brand:	Liwang

Product Description

Power Inductors:
CD30,CD31,CD32,CD42,CD43

CD51,CD52,CD53,CD54

CD73,CD75,CD104,CD105

Dimensions

Type	A±0.30	B±0.30	C(Max)	D	E	F	G	H
CD31	3.0	3.50	1.80	1.0	1.30	0.90	1.30	3.50
CD32	3.0	3.50	2.40	1.0	1.30	0.90	1.30	3.50
CD42	4.0	4.50	2.30	1.50	1.80	1.20	1.80	4.50
CD43	4.0	4.50	3.50	1.50	1.80	1.20	1.80	4.50
CD51	5.20	5.80	2.30	1.50	2.70	1.20	2.70	5.80
CD52	5.20	5.80	2.80	2.0	2.40	1.80	2.40	5.80
CD53	5.20	5.80	3.80	1.80	2.70	1.20	2.70	5.80
CD54	5.20	5.80	4.80	1.50	2.60	1.40	2.60	5.80
CD73	7.0	7.80	3.80	2.50	3.0	2.0	3.0	7.50
CD75	7.0	7.80	5.20	2.50	3.0	2.0	3.0	7.50
CD104	9.0	10.0	4.20	3.20	3.75	2.50	3.75	9.50
CD105	9.0	10.0	5.80	3.20	3.75	2.50	3.75	9.50

1. Various high power inductors
2. RoHS certificati
Its mechanical strength and thermal stability is good enough to bear the temperature changes from the reflow soldering and the outside force. It is mini size, high energy-stored, low resistance makes itself an ideal inductor when used in the PDA, DC/DC switches. Be suitable to work in the big current condition.
SMD Inductance is manily used in VCR, liquid crystal screen TV, Cell phones, Notebook computers, PDA palm computers, Electronic clock
Watches, DC/DC switches, OA nstallment, Flash-storing scrubbers. Can provide as per customer's requirements and conform to RoHS.

. Features:
. High saturation current
. Good resistance to heat and humidity
. High Q value
. Good for high density mounting
. Characteristics:
. Inductance range: 10 to 560uH
. Operating temperature: -20 to 100 degrees Celsius
. Customized to customer specifications
. Applications:
. DC to DC converter
. Computer
. TV
. Power supply unit
. PDA
. Portable telecommunication devices

Please contact me for more details if you have reference inquiries, different appreance is also customied designed by our engineers!

Welcome to provide us your specification, we will submit the best quotation shortly.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
