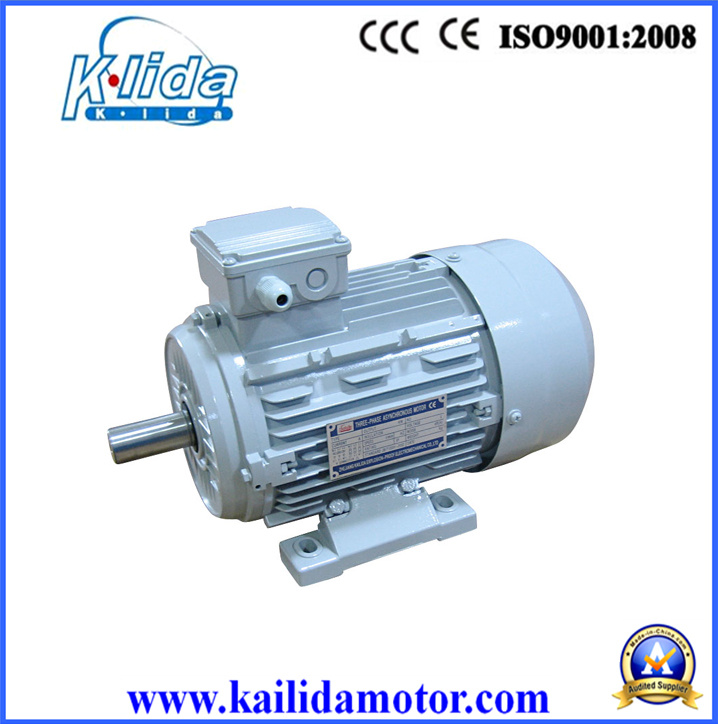

High Efficiency Ie2 (YX3-250M-2) Electric Motor

Prod Model:	YX3-250M-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	55kw
Rated Voltage:	380/660
Frequency:	50Hz/60Hz
Duty:	Continuous(S1)
Insulation Class:	F
Protection Class:	IP55
Cooling Method:	IC411
Application:	Industrial
Operating Speed:	High Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Species:	Yx3

Product Description

Kailida motors advantage:

Prompt Quotation.
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples.


Packing:

Inspecting spare parts every processing
100% test after each process and final test before packing.
WHAT KAILIDA CAN DO FOR CUSTOMERS
Kailida supplies standard products to customers.
Kailida supplies standard products under customers' brands and packaging, etc
Kailida R&D department develops any new products together with the customers.
We Promise you all the time after you working with us for Win-Win Business.
Prompt Reply to Your Inquiry within 24 Hs during Working Days.
Long Life Time Products
Products One Year Guarantee from the Date of Sales.
Professional Service in Handling Your Goods in Daily Communications
Deliver Time about 15-20 days for Normal Models.
Deliver Time about 30 days for New Models upon Receiving the New Samples.

Series Name :	YX3-250M-2
Certificate:	CE,ISO9001,CCC,ROHS
Phase:	Three Phase
Housing	Aluminium/Cast iron
Voltage:	380/660V
Rate Frequency	50HZ/60HZ
Current	435.7A
Standard:	IE2
Wire:	100% copper
Frame Size:	250(mm)
Frame material	cast iron/aluminium
Poles:	2
Duty:	Continous S1
Insulation Class:	F
IP:	55
Speed	2980r/min
Ambient Temperature	-15°C-40°C
Model of CONEECTION	Y-Connection for 3 KW  motor  or less  while DeltaConnection for 4 KW motor or more
IM:	Horizontal / Vertical
Delivery Time:	30 Days
Package	ply-wooden box/pallets
