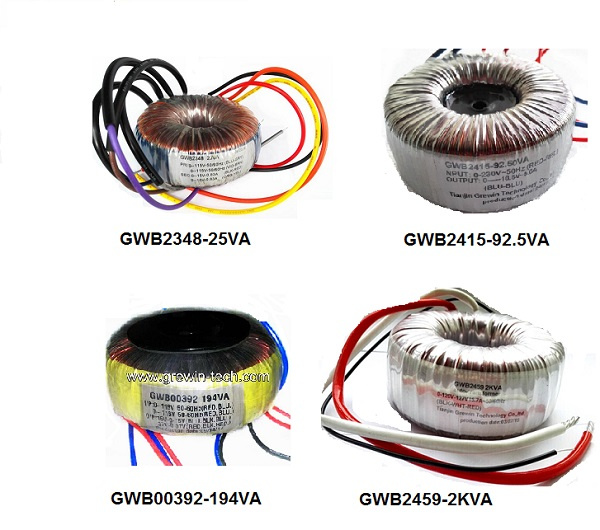

Prod Model: |
GWB2348 etc. |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Toroidal Transformer |
Coil Number: |
High Flux Density Grain- Oriented Silicon Steel |
Voltage Design: |
Customized |
Application: |
Amplifier,DVD,Aircraft |
Phase: |
Single |
Cooling Method: |
Dry-type Transformer |
Winding Type: |
Auto-transformer |
Coil: |
Toroid Core |
Certification: |
CE |
Usage: |
Audio Device, Amplifier, DVD, Loudspeaker |
Brand: |
Grewin High Efficiency Audio Toroidal Transformer |
Product Description

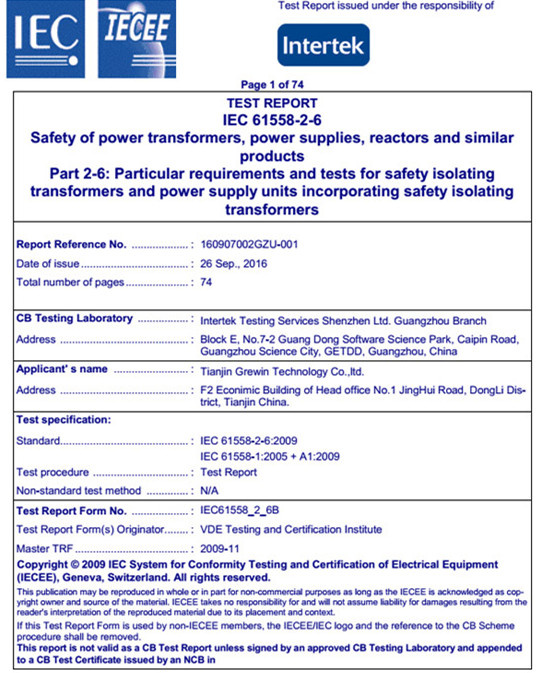

We have passed ISO9001:2015,CE,SGS approval and IEC report
1.Technical parameters Power | Input Voltage(V) | Output Voltage(V) | Dimension OD*H(mm) | Weight (kg) |
GWB50VA | 220V (230V) | 12V | 80*38 | 0.74 |
GWB100VA | 220V (230V) | 12V | 95*45 | 1.25 |
GWB200VA | 220V (230V) | 12V | 112*52 | 2.05 |
GWB250VA | 220V (230V) | 12V | 118*54 | 3.36 |
GWB500VA | 220V (230V) | 12V | 140*65 | 4.2 |
GWB1000VA | 220V (230V) | 12V | 170*75 | 7.2 |
GWB1500VA | 220V (230V) | 12V | 180*85 | 9.75 |
GWB2000VA | 220V (230V) | 12V | 185*105 | 12 |
GWB3000VA | 220V (230V) | 12V | 200*120 | 16.6 |
GWB5000VA | 220V (230V) | 12V | 230*135 | 24 |
Toroidal Transformer |
Power | Dimension (mm) | Efficiency % | Current | Weight |
GWB20VA | 60*25 | >82 | 10mA | 1.200.45kgs |
GWB30VA | 65*35 | >84 | 10mA | 1.200.50kgs |
GWB50VA | 70*40 | >88 | 20mA | 1.151.30kgs |
GWB100VA | 85*60 | >90 | 30mA | 1.151.50kgs |
GWB120VA | 90*75 | >93 | 40mA | 1.102.00kgs |
GWB200VA | 110*80 | >93 | 100mA | 1.102.80kgs |
GWB300VA | 120*80 | >94 | 150mA | 1.083.50kgs |
GWB500VA | 130*80 | >94 | 150mA | 1.085.00kgs |
GWB800VA | 140*85 | >94 | 200mA | 1.086.50kgs |
GWB1000VA | 140*85 | >95 | 300mA | 1.058.50kgs |
GWB1500VA | 160*90 | >95 | 400mA | 1.0512.0kgs |
GWB2000VA | 180*90 | >95 | 400mA | 1.0515.0kgs |
GWB4000VA | 220*95 | >95 | 500mA | 1.0520.0kgs |
GWB6000VA | 250*95 | >95 | 500mA | 1.0525.0kgs |
2. We have abtained VDE,UL,CE,ISO9000 approval .we guarantee quality is the first.
Test process:1). No-load test (included no-load voltage,no load current and no load loss)
2). IInductive voltage test
3). Load test (load voltage and temperature rise
4). Temperature rise test .
5). Insulated resistance
6).Hi-pot test
7).Leakage indutance test
8).DC resistance test
9).Surface inspection.
3. Application:
1. audio equipment
2. electric control
3. computer
4.instrument
5.telecommunications
6.high-end and middle-end vedio etc
2). Advantages:
1.High quality 100% copper core
2.a full range of toroidal transformer3.Specially sales and technical services:5-10Years4.With 14 years' producing history in transformer induatry5.our company have cooperated with many customers around the world and gained good reputation at home and abroad.3).Note
The above-mentioned toroidal transformer is frequently-used, we can also manufacture the products by customer design. And the specification is for reference, if has the change further, please take the material object as the standard.
4).GREWIN'S Dimension :
External diameter: 40mm-300mm, height :13mm-130mm, Efficiency: 75-98%
we can design the appropriate products according to customers' requirments such as installation dimension, input and output voltage,power...etc.)
4.product procedure

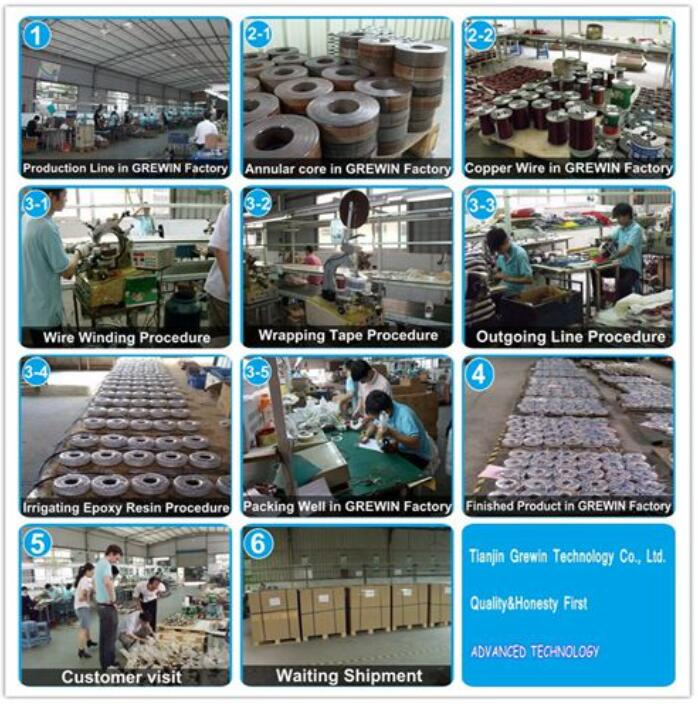

The following picture showed you about all finished toroidal transformer production line and package with export standard carton and strong pallets:
About us:
1. Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".
2.Flow chart of trading activities:
NO | Step | Days need |
1 | Request for quotation | 1 day |
2 | Making quotations | 1 day |
3 | Offer and counter offer | 3 days |
4 | Sending and receiving samples | 3-10 days |
5 | Sample confirmation | 3 days |
6 | Placing a firm order | 1 day |
7 | Paying and receiving the down payment | 1-4 day |
8 | Factory production & Quality inspection | 15-20 days |
9 | Paying and receiving the balance | 4 days |
10 | Delivery of goods | 1 days |
