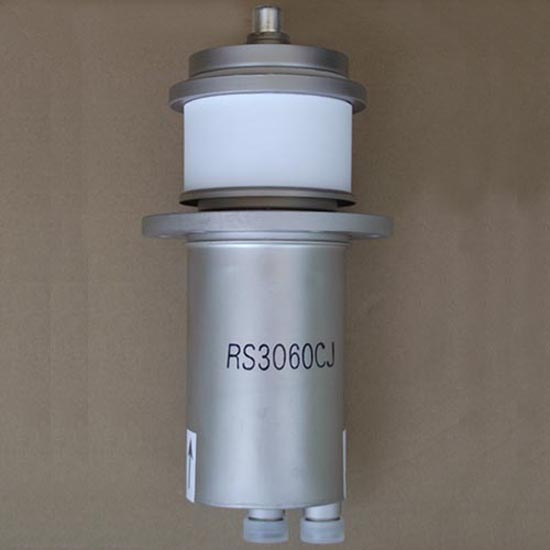

High Frequency Electron Tube Vacuum Triode (RS3060CJC)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
RS3060CJ is a metal ceramic power triode tube for metal welding machine designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tube may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics.
We manufacture the following all models.FC-10FA, FC-10FT, FC-732F, FC-735F, FC-735FT, FC305F, FC311, FC312F, FC620F, FC620FT,FD911S, FD003Z, FD-5S.FC10FT, FC201F, FC307F, FC307FS, FC308C, FC310C, FC310F, FC502F, FC732F, FC734F, FC735F.FU-33, FU-833A, 833A, 833C, FU-74F/RY-74B, FU-100F, FU-728F, FU-113F, FU-113FG, FU-998F, FU-5S, FU-62S, FU-610F, FU-610FA, FU-610S, FU-724F, FU-724S, FU-727F, FU-824F, FU-824FA, FU-832F, FU-834F, FU-834FA, FU-836F, FU-924F,FU-924FA,FU-928F,FU-101F,FU-101M,FU-101Z,FU-101C,FU-832C,FU-832FA, FU-832F,FU-832M, FU-917F,FU-917M, FU-307S, FU-74F, FU-250F, FU-252F, FU-946F, FU-947F FU611F, FU612F, FU613F, FU001F, FU104C, FU104Z, FU115F, FU116F, FU252F, FU615F, FU616C, FU617F, FU618F, FU720F, FU820C,FU820F, FU002F, FU617FT, FU-84F, FU-74F, FU-1608C, FU-1608F.GU84B, GU74B, GU78B.FM70FT,ML8533, ML8536,YU191B, YU191C, YU-148, YU-108,, YU-148, YU-191B,YL1050, YL1057, YL1631, YL1420,YD1202, YD1212.BW1184J2F, BW1185J2F, BW1184J, BW1185J, BW1184J2, BW1185J2, BW1608J2F, BW1608J.CQK25-2,CQK50-2.3CX4500H3,3CX6000A7,3CX2500H3,3CX2500A3,3CX2500F3,3CX3000A7,3CX3000F7,3CX1500D3,3CX10000D3,3CX10000A3,3CX10000A7,3CX10000H3,3CX15000A3,3CX15000A7,3CX15000H3,3CX20000H3,3CX20000A7,3CX800A7,3CPX800A7,3CX1500A7,3CPX1500A7,3CX5000A7,3CPX5000A7,YU-158.YC-156,YC-156A,YC-179,YC-236,YC-257.3CW5000F1,3CW5000F3,3CW40000H3,3CW45000H3,3CW20000A7,3CW20000H3,3CW20000H7,3CW30000H3,3CW30000A7,3CW30000H7.3CX2500A3,3CX2500F3,3CX2500H3,3CX3000A7, 3CX1500A7, 3CW20000A7.4CX250B, 4CX250R, 4CX250FG, 4CX800A/RY-74B, 4CX800A, 4CX350A, 4CX350F, 4CX1000A,4CX1500B,4CX3500A,4CW1000A,4CX1500A,4CX3000A,4CX5000A,4CX5000R,4CX7500A,4CX10000D,4CX10000J,4CX15000A,4CX20000C,4CX20000D,4CX20000E,4CV100000C, 4CX250K, 4CX1500A, 4CX3000A, 4CX3500A, 4CX15000A, 4CV100000C, 4CX35000C, 4CX5000A,5CX1500A.CTK12-4, CTK12-1, CTK15-2, CTK25-4, ITK12-1, ITK3-1, ITK5-1, ITK15-2, ITK30-2, ITK60-2, ITK70-2, ITK90-1, ITL12-1, ITL3-1, ITL5-1, ITL9-1, ITL15-2.TH5-6, TH6-3A, TH382, TH382, TH584, TH338, TH331, TH537, TH527, TH327, TH582, TH558, TH610, TH375, TH576, TH373, TH328, TH347.E3061, E3062, E3062E, E3069, E3130.RS3060CL, RS3060CJ, RS3021CJ, RS3026CJ, RS3040CJ, RS3041CJ, RS3041CJ, RS3040CJ, RS3060CJC, RS3021, RS2048CJ, RS2048CJC, RS1034SK, RS1034SL, RS1072C, RS2054SK.8560AS, 928F,836F, 8741, 7T85, 7T69, 8F75R, 7F71RA, 8F68R.6T51, 6T58RA, 7T62R, 7T62RE, 7T85RB, FU-947F, 7T69RB, 7T84RB, 7T69RB, 8T25RA, 8T85B, 8T85RB, 8T87RB, 8F76R, 8T69JB.SK300 Socket, SK1300 Socket, SK2210 Socket, SK184 Socket.
| Prod Model: |
RS3060CJC |
| Filament Voltage: |
10V |
| Filament Current: |
185A |
| Amplifcation Factor: |
22 |
| Power: |
120kw |
| Max Height: |
348mm |
| Working Position: |
Vertical |
| Max Diameter: |
185mm |
| Max Weight: |
7.5kg |
| Cooling: |
Water |
| Cooling Method: |
Water Cooled Tube |
We are a skilled company and knowledgeable exporter for Electron tube, Electron valve, Ultra-high frequency electron tube, CO2 Laser power tube, Power grid tube, Ceramic vacuum tube, Electronic triode, Electronic tetrode, quadrode, pentode, Metal-ceramic transmitting tube, Broadcasting transmitter power tube, Microwave magnetron, Ceramic vacuum capacitor, Relay, Electronic components, and so on source.
Products are mainly used in high-frequency heating, plastic welding machine, Laser power supply, wood drying machine, radar scanning, RF system, Amplifier, radio transmitter, MRI and such equipments, widely applied in the textile and equipments, radio communications, medical, machining, plastics processing industries, and so on...And with over twenty years experience in export business. There is more than 480 staff, all kinds of 150 management engineers and technicians among them now. We have grown into a high efficient team to service and provide our customers with an extensive and high quality products range with competitive prices.
