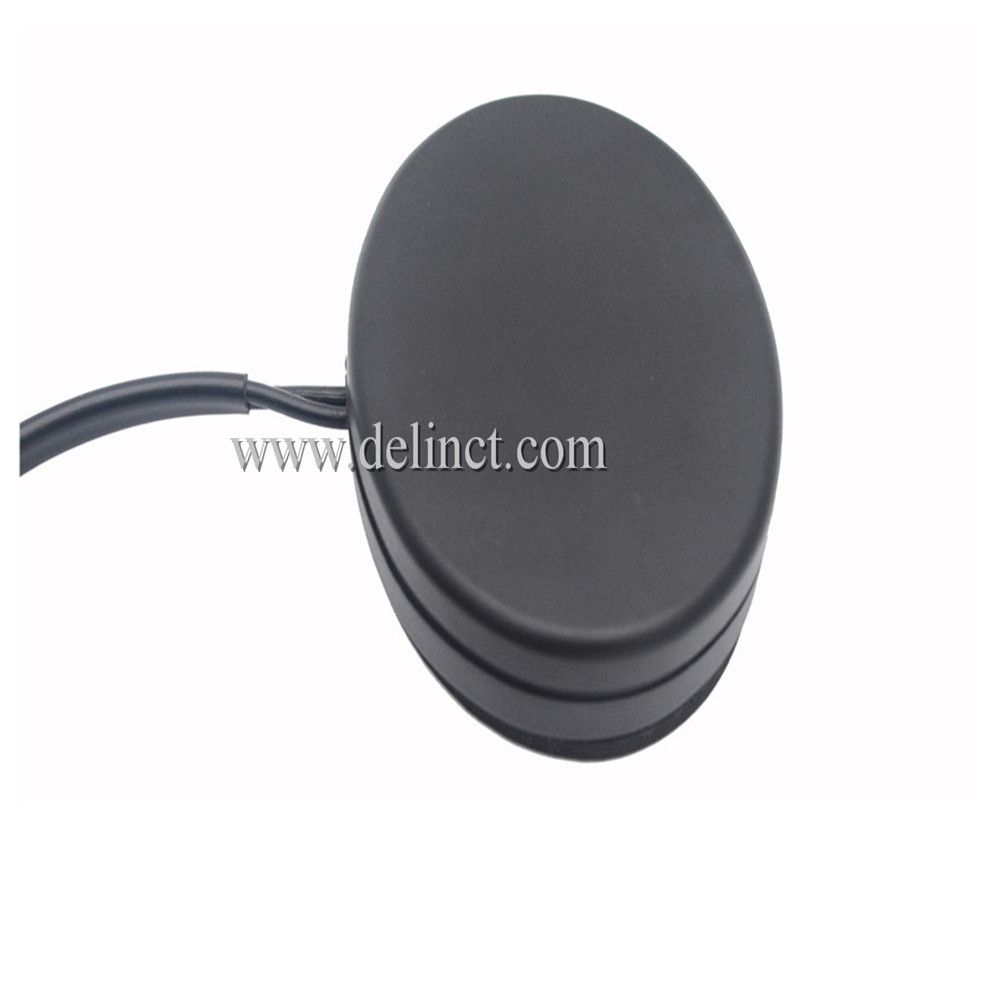

High Gain GPS&GSM Combined Antenna Vehicle Navigation Antenna

Name: High Gain GPS&GSM Combined Antenna Vehicle Navigation Antenna
Brand: all-electronics-online.com
SKU: 823900375
Availability: InStock
Rating: 4.7 (132 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL-CA-014
Size:	1022261mm
Mounting:	Sticking
Weight:	150g
Connector:	SMA/BNC/MCX/MMCX/SMB/Fakra/Gt5
Color:	Black
Cable:	Rg-174
Polarization:	Right-Handed Circular
Usage:	Car Antenna
Operating Wavelength:	Medium Wave
Material:	Cu
Directionality:	Directional Antenna
VSWR:	2

Product Description

GPS&GSM vehicle combined antenna of our company, can receive GPS satellite positioning signal and GSM network signal, is a kind of high gain, high sensitivity, universal GPS&GSM combined antenna work. It has many advantages, such as small size, light weight, strong durability, high accuracy and sensitivity, low power consumption, high reliability and so on. It is widely used in vehicle navigation, scheduling, vehicle tracking, monitoring, measurement and control and other fields

Antenna specification

NO	Item	Specification	PostEnvironmental Tolerance
1	Range of receiving frequency	1575.42±5MHz	±2.5
2	Center frequency	1575.42MHz	±3.0
3	Band width	≥10MHz	-
4	V.S.W.R.	≤2.0	-
5	Gain	3dB	±0.5
6	Axial ratio	≤4	-
7	Polarization	Right-handed circular	-
8	Impedance	50Ω	-

Amplifier Specification

NO	Item	Specification
1	Range of frequency	1575.42±5
2	Amplifier gain	28±2
3	V.S.W.R.	≤2.0
4	Noise factor	≤2.0
5	Volts D.C.	3~5V
6	Direct current	≤20mA
7	out of band rejection	≤-25(fo+100MHz) ≤-40(fo-100MHz)

Operating condition
Temperature: -40ºC~+80ºC
Humidity: 95%~100%

Storage condition
Temperature: -45ºC~+85ºC
Hunidity: 95%~100%
