High Performance NEMA 34 Stepper Motor 2 Phase
Price: |
US $ 40.32-48.39/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
86HS120156 |
Name: |
High Performance NEMA 34 Stepper Motor 2 Phase |
Number Of Stator: |
Two-Phase |
Excitation Mode: |
HB-Hybrid |
Type: |
Electromechanical |
Application: |
CNC Machine,Printing Equipment |
Speed: |
Adjust Speed |
Operate Mode: |
Driving |
Certification: |
Ce,RoHS |
Brand: |
Novotech |
Product Description

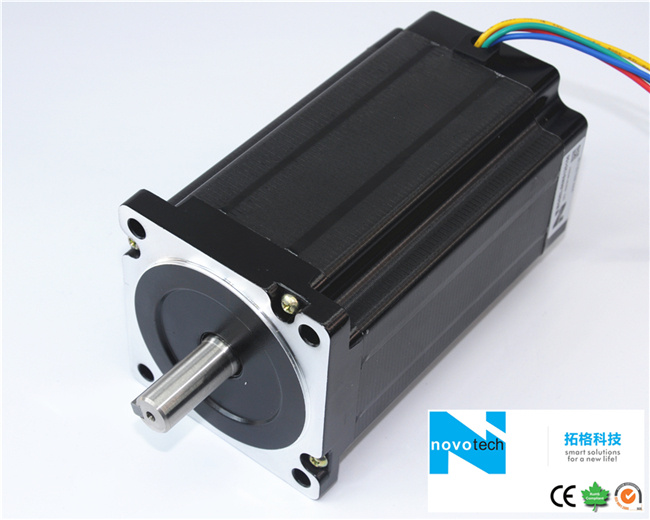

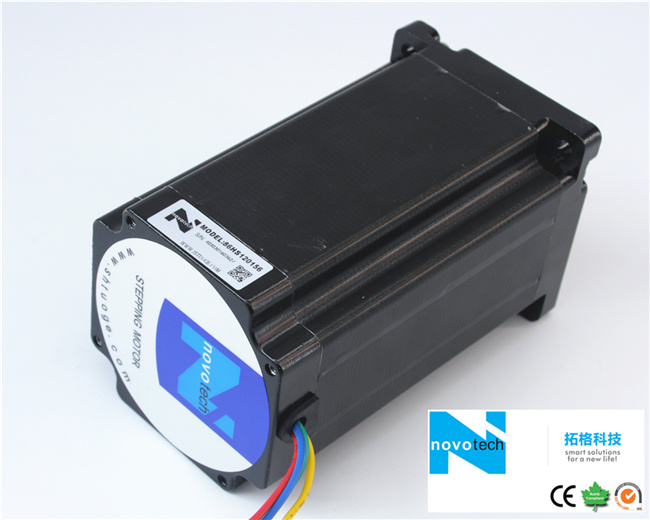

High Performance Nema 34 Stepper Motor 2 Phase
Technical ParameterItem | Specifications |
Step Angle Accuracy | ±5%(full step,no load) |
Temperature Rise | 80 degree Max |
Ambient Temperature | -10 degree to +50 degree |
Insulation Resistance | 100MΩMin.500VDC |
Withstand Voltage | 500VAC |
Shaft Radial Play | 0.06Max.(450g-load) |
Shaft Axial Play | 0.08Max.(450g-load) |
SpecificationsModel No. | Phase | Step Angle | Holding Torque | Rated Current | Phase Inductance | Phase Resistance | No.of Leads | Rotor Inertia | Detent Torque | Weight | Length |
| | ° | Nm | A | mH | Ω | | gcm2 | kg·cm | kg | mm |
86HS3566 | 2 | 1.8 | 3.5 | 2.8 | 3.9 | 1.4 | 4 | 800 | 0.8 | 2 | 66 |
86HS4576 | 2 | 1.8 | 4.5 | 4.2 | 3.5 | 0.8 | 4 | 1400 | 1.3 | 2.3 | 76 |
86HS85118 | 2 | 1.8 | 8.5 | 4.9 | 5.2 | 0.95 | 4 | 2800 | 2.5 | 3.8 | 118 |
86HS120156 | 2 | 1.8 | 12 | 4.9 | 8.7 | 1.4 | 4 | 4000 | 3.8 | 5.4 | 156 |

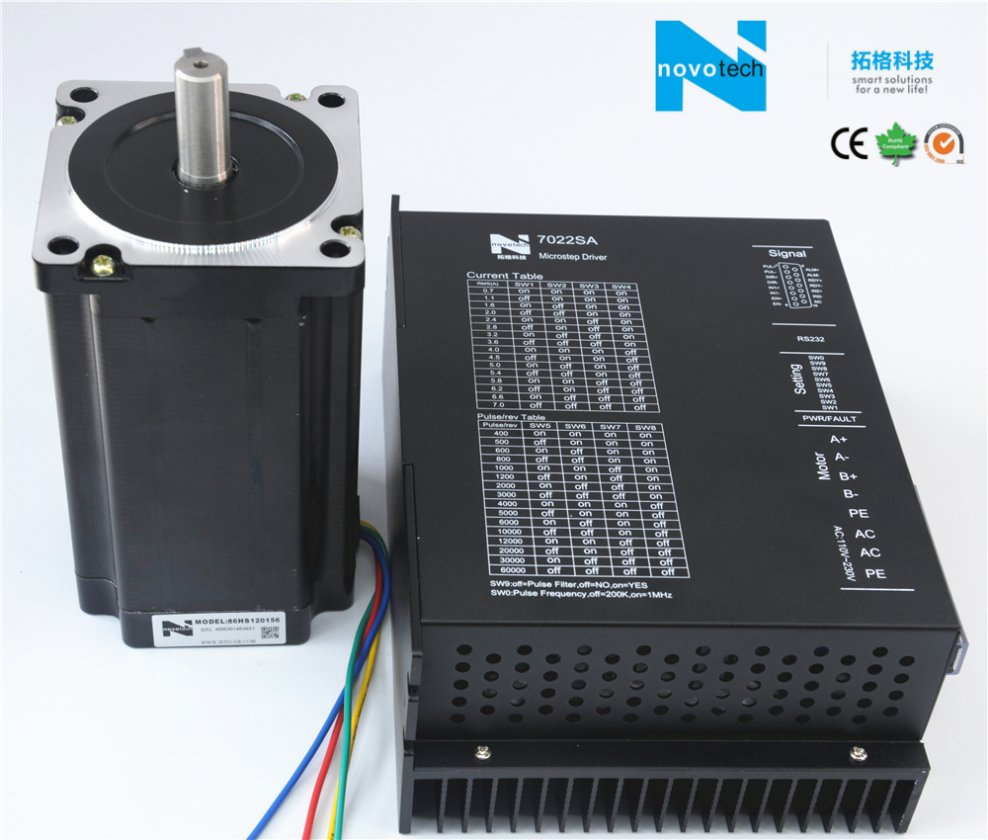

Note : All above is normally used, and we can customize according to your request or choose the suitable model for you, please tell us following parameters: current, voltage, holding torque, body length,the application area. Besides, we also have matched stepper motor driver.ApplicationOur products are widely used in 3d and inject printers, CNC routers, Engraving Machines, Stage Lighting Control, Security Surveillance, Video Equipment, Laser workstation, Carving Machine, Office Automation,Smart Toy, Digital Controlled Machinery,Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera,Robotic and other automatic equipment.Packaging and shipping1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirementsOur service1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.
2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.
3.Warrantity period : 18 months and Life-long maintenance service for the product.
4.We accept products customize.FAQQ1: How to choose the suitable stepper motor?
A1: There are serveral important items: size, length of stepper motor, holding torque, voltage, current etc.After confirm them and told us, we can choose the suitable one for you.
Q2: Any other methods to finalize the model?
A2: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3:How to guarantee the Quality of Industrial Parts?
A3: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.
Q4:What's the Advantage of Your Parts for Industry Products?
A4:The advantage of our products is the competitive prices, fast delivery and high quality. Our
employees are responsible-oriented, friendly-oriented,and diligent-oriented. Our products are featured by strict tolerance, smooth finish and long service time.2.Before we send out the goods,we check them more than three times.Contact
Jiangsu Novetech Electronic technology Co., Ltd is a professional company which offers automatic control devices and System integral solution. Novotech was established in 2011. After years of devotion on marketing and technology research, Novetech has won an excellent reputation by offering stable and consistent products to domestic and oversea equipment manufacturers.

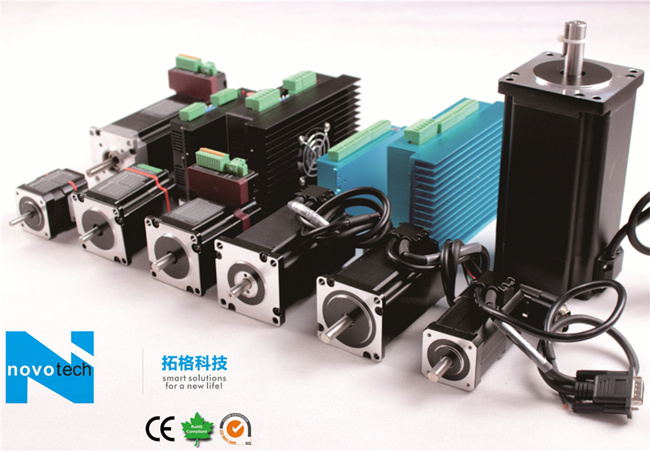

The main motion control products of Novetech include: Stepper motor, stepper driver, hybrid servo, low Voltage servo, integrated motor drive and professional CNC system based on independent style stepper controller. Our products are widely applied to electrical, machinery, measurement, laser, medical, textile, package and advertising industries for a long time.
