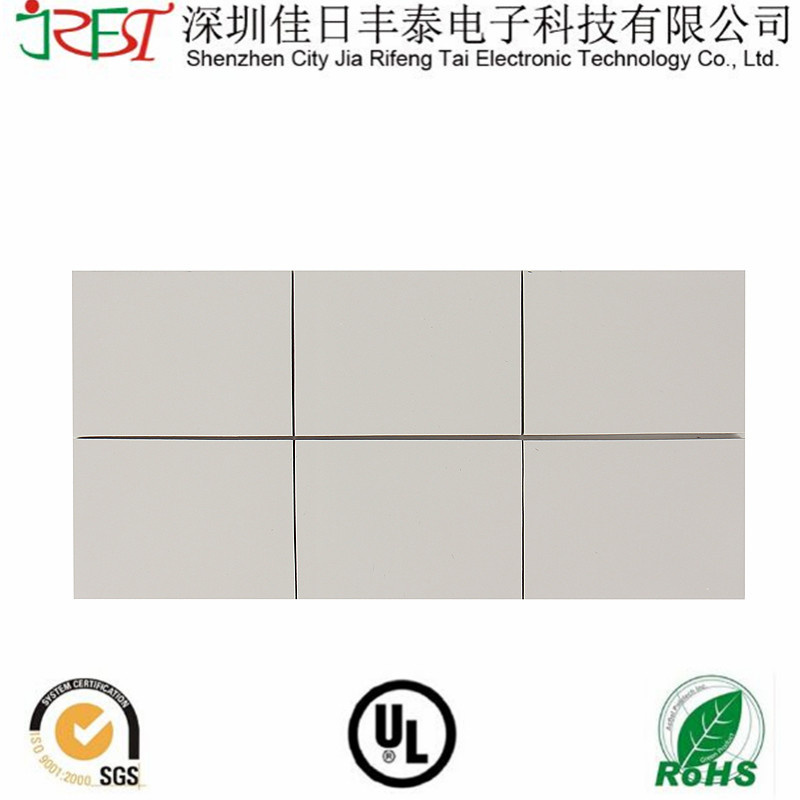

High Performance Thermal Silicone Insulation Rubber Pad for LCD Display
| Price: |
US $ 0.2-15/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
PM300 |
| Thickness: |
0.3~15mm |
| Breakdown Voltage Strength: |
4.5kv |
| Thermal Conductivity: |
1.5~5.2W/Mk |
| Working Temp: |
-50~200ºC |
| Elongation: |
48% |
| Hardness: |
30±5 |
| Name: |
Silicone Thermal Washer |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Organic Insulation |
| Material: |
Silicone |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
10KV~20KV |
| Color: |
Blue |
| Brand: |
Jrft |
Product Description
High Performance Thermal Silicone Insulation rubber pad for LCD displayProvides an effective thermal interface between heat sinks and electronic devices where uneven surface topography, air gaps and rough surface textures are present.Gap Pad provides:1.Elimination of air gaps to reduce thermal resistance
2.High conformability to reduce interfacial resistance
3.Low-stress vibration dampening
4.Compatible with automated dispensing equipment
| Test Item (Unit) | Numerical Value | Testing Method |
| Model No. | PM150 | PM200 | PM200s | PM260 | PM300 | PM350 | PM460 | PM500 | |
| Thickness (mm) | 0.25-18 | ASTM D347 |
| Color | Grey/Blue | Black | Pink | Green | Yellow | Grey | Blue | Blue | Visual |
| Working Temp(ºC) | -50~200 | TGA+DMA |
| Thermal Conductivity (W/m-k) | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 3.5 | 4.5 | 5.0 | ASTM D5470 |
| ThicknessTolerance (mm) | 0.16±0.01 | ASTM D347 |
| Volume Resistivity (Ω-cm) | 10^12 | 10^15 | 10^17 | 10^16 | 10^16 | 10^16 | 10^16 | 10^16 | ASTM D347 |
| Dielectric Strength (KV) | 4.5 | 4.5 | 6.0 | 5.0 | ASTM D149 |
| Hardness (shore A) | 30±5 | 30±5 | 25±5 | 20±5 | 35±5 | 40±5 | 45±5 | 50±5 | ASTM D2240 |
| Specific Gravity | 2.05 | 2.6 | 2.8 | 3.0 | 3.15 | 3.2 | 3.5 | 3.5 | ASTM D792 |
| Tensile Strength (kg/cm^2) | 15 | 40 | 70 | 50 | 52 | 60 | 70 | 65 | ASTM D412 |
| Elongation (%) | 48 | 48 | 60 | 55 | 55 | 58 | 68 | 57 | ASTM D412 |
| EP(12) | Check out | IEC 62321 |
| Halogen(4) | Check out | EN 14582 |
| Flame Rating | 94V-0-1 | ULNO:E34163 |
Applications:1.LED lighting, lighting equipment
2.Household appliances LCD display
3.Between electronic and heat sink
4.Communication product, smart phone, tablet .
5.Desktop, notebook and other portable computer
6.Large power supply etc.
Performance and characteristics:1.High thermal conductivity, heat transfer coefficient 1.5~5.2W/m-k
2.Stable performance, low thermal resistance, effectively improve the heat transfer speed
3.Low hardness, its viscosity high, easy to use
4.By UL and V-O certification standards
Specification:1.Silicon Thermal washer
2.Thickness 0.3-15mm

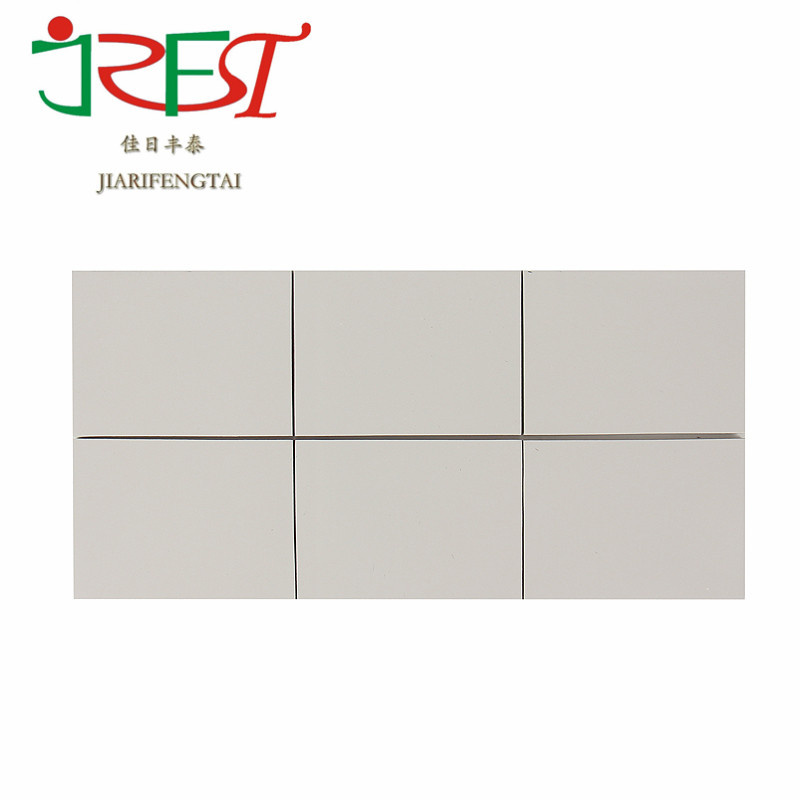

3.Die-cutting part available
4.Easy to install
Product Range:1.Thermal Conductivity:1.5,2.0,2.5,3.0,3.6,4.6,5.2W/m-k
2.Ultra soft model:JRFT-PM150,ultra soft,and with fiberglass for puncture,tear resistance.
3.Service:One stop service,solution offer,die-cutting sizes for customer.
4, Meet with the environmental requirements of ROHS and UL
Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.
Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.
Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.
High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
