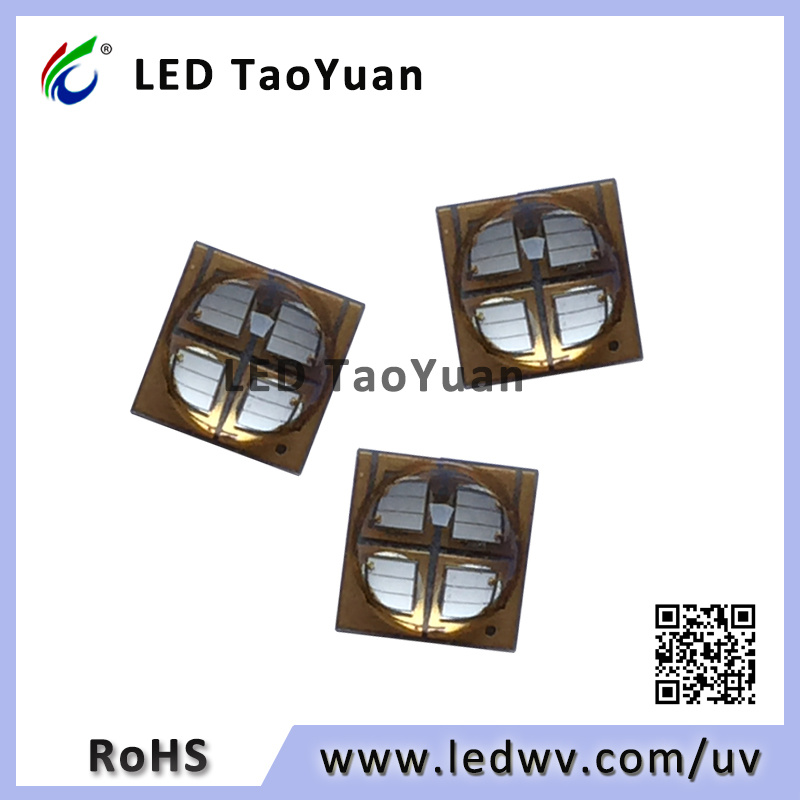

High Power 395nm 10W UV LED Diode

Prod Model:	TY-6565-395nm-10W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wave Length(Nm):	395nm

Product Description

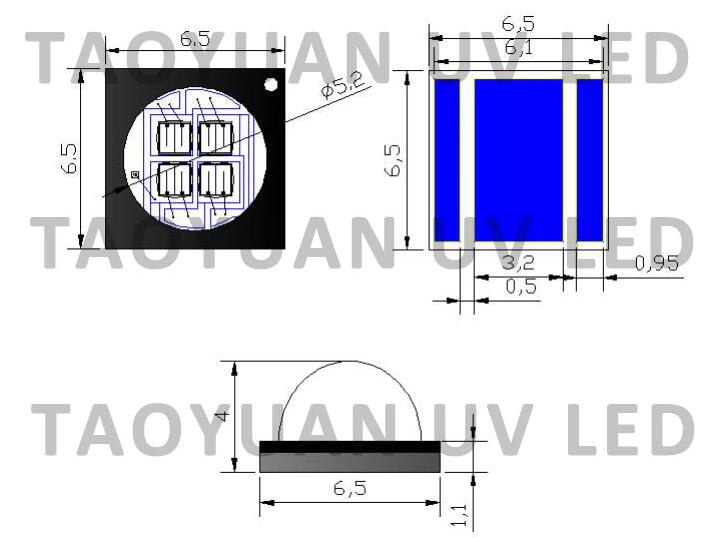

Product Dimension

High Power UV LED 395nm 10W The N5050UUNx2 product series is a compact, high quality and reliable 4chip UV LED. Featuring high radiometric power density and design flexibility - the N5050UUNx2 spectrum can be tailored to your application.

High Power 395nm 10W UV LED Product Data Sheet:

Parameter	Rating
	TY-T5050U-UNx2 Series
DC Forward Current(mA)	700mA
VF	11-15V
Calculated Minimum Radiometric Power 700mA	2500-3600mW
LED Junction Temperature	150°C
LED Operating Temperature	-40°C~85°C
Storage Temperature	-40°C~125°C
Soldering Temperature	Max.260°C/Max.10sec.(JEDEC 202c)
ESD Sensitivity	2,000 V HBM(JESD-22A-114-B)
Reverse Voltage	Not desinged to be driven in rever bias(VR≤5V)
Preconditioning	Acc.to JEDEC Level 1

Note: 1. Radiometric power is measured with an accuracy of ±10%
2. The forward voltage is measured with an accuracy of ±0.2V
* Calculated values are for reference only.
3.Can provide a complete product Specifications.
Application:

UV curing refers to a special way in which coatings, inks and adhesives are cured or dried using "energy" from UV light sources, rather than conventional heat. In effect, the ultraviolet light spectrum in a UV lamp interacts with specially formulated chemistries to cure materials--typically more quickly, using less energy and thereby at lower cost than by other methods.

 The advantages of UV have been well-documented, particularly when used with manufactured products that include inks, adhesives and coatings on substrates that are sensitive to heat. In addition, UV is considered environmentally friendly since most of the solvents in inks, paints, adhesives and coatings can be eliminated, thanks to the special capabilities of UV curing.

 The UV LED technology is further revolutionizing the UV curing space. Since traditional UV light sources such as tubes and arc lamps contain Mercury, a notorious pollutant, the availability of mercury free UV LEDs is bringing further environmental soundness to the UV curing industry.

 TaoYuan LEDs provides a wide range UV LEDs in the UVA range (360nm - 420nm). Please visit our Products page to learn more about our UV products.
