| Prod Model: |
PLTB450B |
| Wavelength: |
445nm 450nm 455nm |
| Operating Current: |
1.2A |
| Operating Voltage: |
4.8V |
| Allowable Reverse Current: |
20mA |
| Color: |
Blue |
| Life Time: |
10,000 Hours |
| Operating Temperature: |
-20~70 Degree |
| Storage Temperature: |
-40~85 Degree |
Product Description
Features:
1. High quality blue laser diode 450nm 1600mw
2. OSRAM laser diode PLTB450B
3. TO18-5.6mm package type

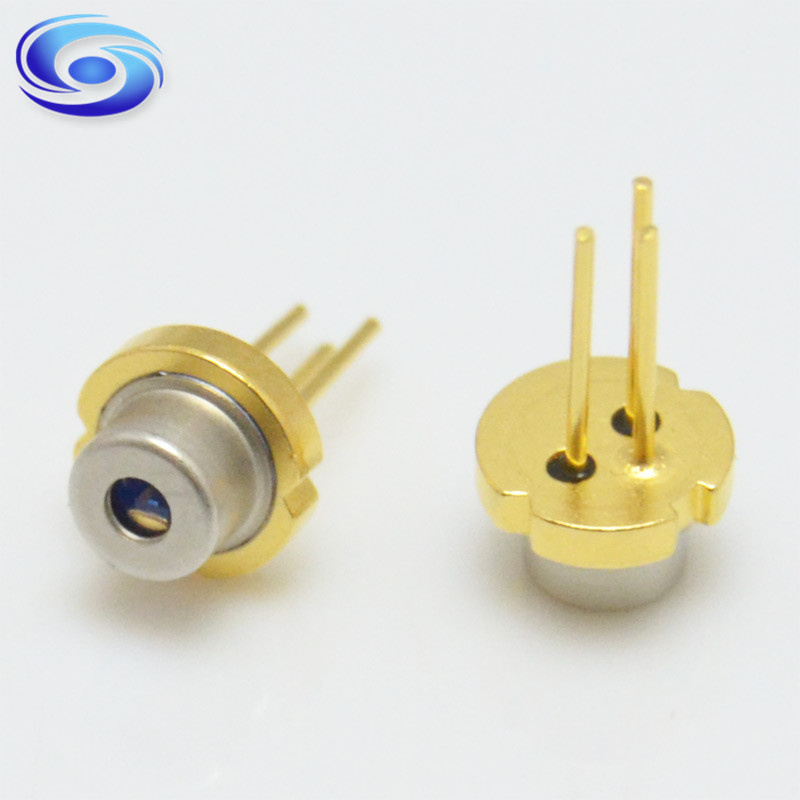

High Power 450nm 1.6W Blue Laser Diode for Cutting Engraving
Absolute Maximum Ratings (Tc=25ºC) | Item | Symbol | Values | Unit |
| Operating Current | If | 1.7 | A |
| LD Reverse Voltage | Vr (LD) | 5 | V |
| Storage Temperature | Tstg | -40~+85 | ºC |
| Operating Case Temperature | Tc | 0~+70 | ºC |
| Soldering Temperature max.10sec. | Tsolder | 260 | ºC
|
Electrical and Optical Characteristics (Tc=25ºC)| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Max. Optical Output Power | Pop | 1.3 | 1.6 | - | w |
| Emission Wavelength | λp | 440 | 450 | 460 | nm |
| Threshold Current | Ith | - | 0.2 | 0.3 | A |
| Operating Current | If | - | 1.2 | 1.5 | A |
| Operating Voltage | Vop | - | 4.8 | 6.0 | V |
| Beam Divergence (FWHM) | Θ//×Θ⊥ | 4×19 | 7×23 | 15×27 | deg |
| Polarization | Pgr | 100:1 | - | - | TE:TM |
| Thermal resistance (junction to case) | R th | - | 15 | - | K/W |
1. Multi Transverse Mode laser diode.
2. Can Type: φ 5.6 mm Floating Mounted with Protection device.
3. Salable OSRAM high quality 450nm 1600mw laser diode PLTB 450B.

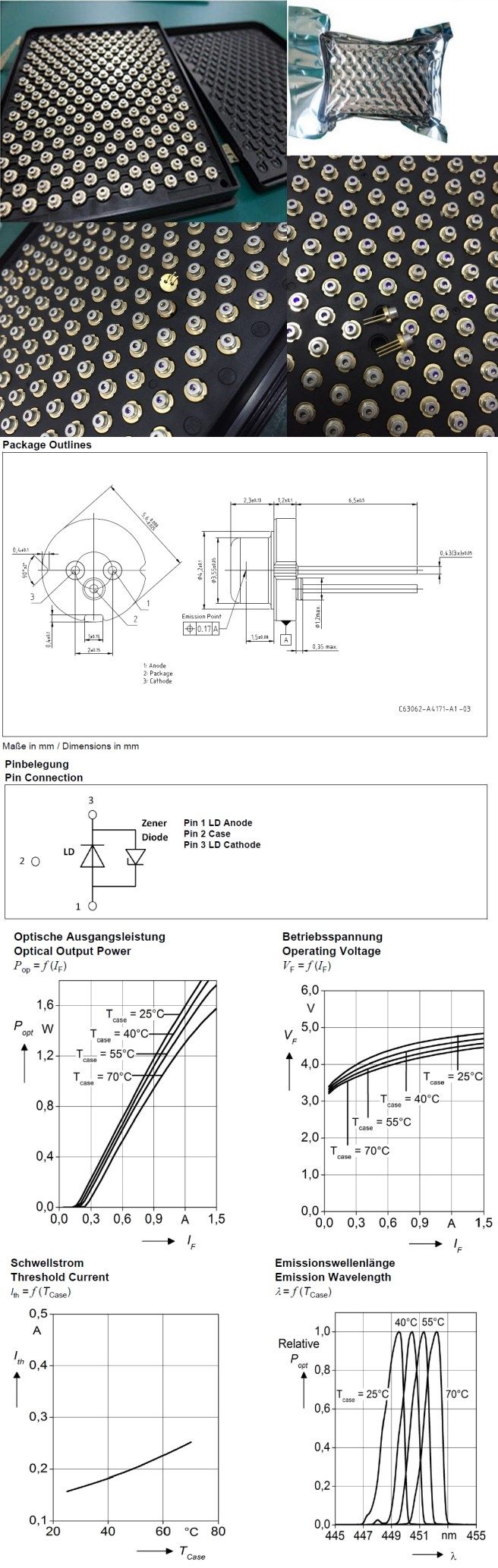

4. Package details : Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 200pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.Welcome Your Inquiry
TO: Song Song
Mob: +86 13713250894
Dongguan BU Laser Co.,Ltd
Packaging&Shipping:
1. Plastic box, ESD bag, standard and normal package.
2.1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.
3.It will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.
4. Delivery time will be usually 3~5 working days.Company Information&Services:
A.Every customer's admiration is our goal and future willing, we are concentrated in doing the best quality products,
supplying the best goods and service.

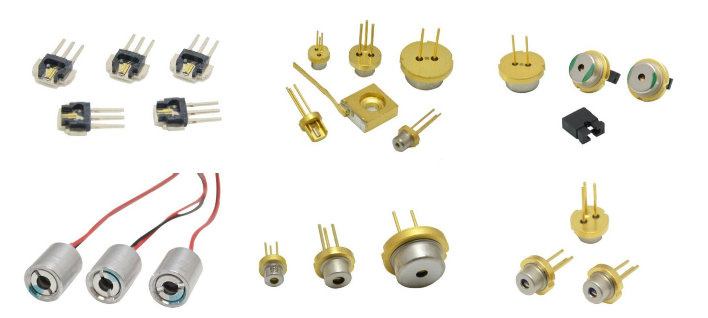

B.Main products: Semiconductor laser diode, laser module, laser power bank,
bicycle lasertail light, bicycle wheel light, headlight, auto laser fog light.
C.The laser wavelength includig:405nm 410nm 445nm 450nm 455nm 510nm 515nm
520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm
830nm 850nm 980nm RGB and so on.
