| Prod Model: |
808nm 3w laser diode |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength: |
808nm |
| Output Power: |
3W |
| Color: |
Infrared |
| Operation Current: |
2.5A |
| Operation Voltage: |
2.0V |
| Storage Temperature: |
+10 to +85 Degree |
| Operation Temperature: |
+10 to + 30 Degree |
| Quality: |
Brand New |
| Lifetime: |
10, 000hours |
| Price: |
Lower Price |
Product Description

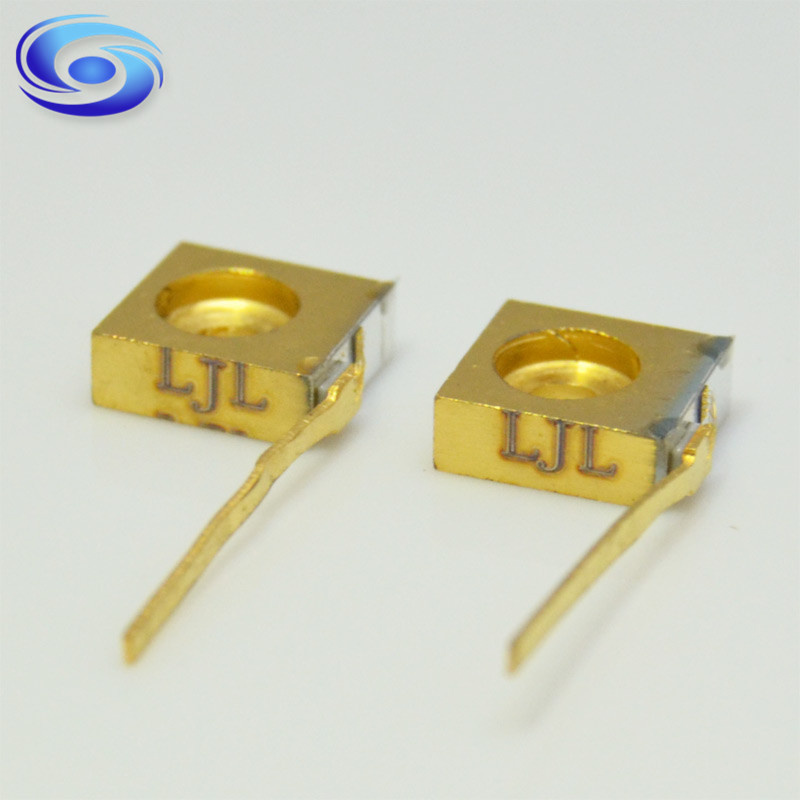

Specification:
Wavelength: 808nm
Output Power(CW): 3000mw
Can Type: C-mount
Absolute Maximum Ratings (Tc=25ºC)
Parameter | Symbol | Values | Unit |
| Min. | Max. |
| Operating Current | If | 3700 |
| mA |
| Reverse Voltage | Vr | - | 2.4 | V |
| Operating Case Temperature | Tc | +10 | +30 | ºC |
| Storage Temperature | Tstg | +10 | +85 | ºC |
Electrical and Optical Characteristics (Tc=25ºC)
Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Optical Output Power | Po | - | 3000 |
| mw |
| Emission Wavelength | λp | 803 | 808 | 813 | nm |
| Threshold Current | Ith | - | 300 | - | mA |
| Operating Current | Ir | - | 3700 | - | mA |
| Operating Voltage | Vop | - | 1.6 | 2.2 | V |
| Modulation Frequency | f | - | >100 | - | MHz |
2.Packing and Delivery for 808nm 3w laser diode
Packing:
1.100 pieces/box, 10 boxes /carton.
2. Plastic box package ,TO18-5.6mm package.
3. It based on the laser diode kind, each kind has different size.
Delivery for 808nm 3w laser diode:
delivery time:1~3 days
delivery way:DHL,Fedex,UPS or other way as your demand.
3.Appliceation for 808nm 3w laser diode:
Laser Module
Industrial Use
Lase Pointer
Laser light
Laser sight
4. FAQ for 808nm 3w laser diode:
1)Q: Where is your company located? How can I visit there?
A:Our company is located in Dongguan, China. All our clients, from home or
abroad, are warmly welcome to visit us!
2)Q: Can I order samples of 808nm 3w laser diode first to test the qualty?
A: Yes, samples ae in stock for you.
3)Q: How to pay for 808nm 3w laser diode?
A: We accept T/T, Paypal, Western union, Moneygram, If you use other
payment terms, please feel free to contact us!
4)Q: Have you other laser diode?
A: We offer 405nm, 450nm, 515nm, 520nm, 532nm, 635nm, 650nm, 780nm, 808nm, 830nm, 850nm, 980nm laser diode and laser module.
