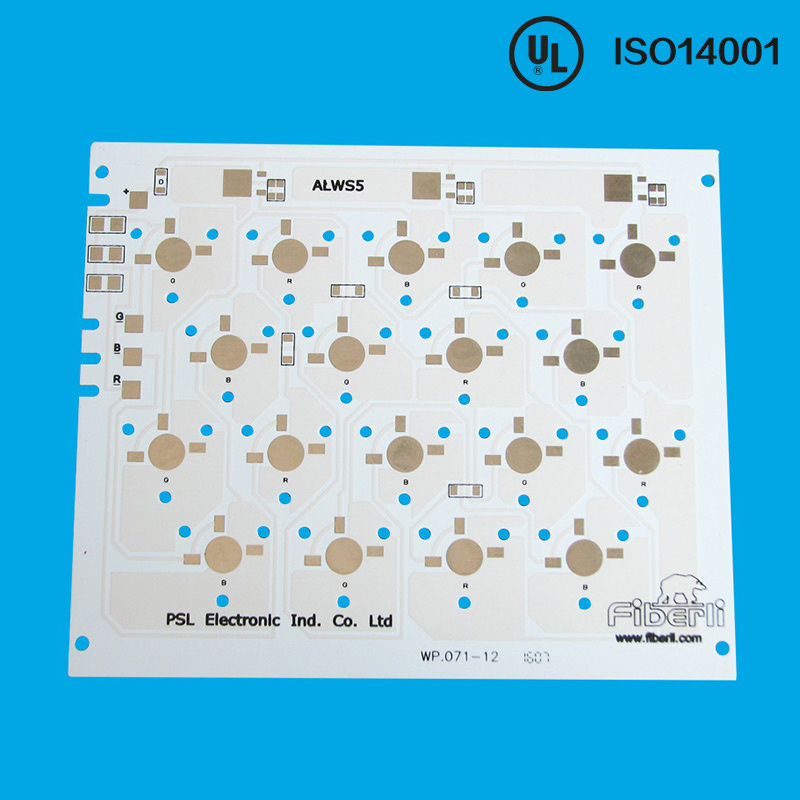

High Power Aluminum Base LED PCB for Motorcycle and Mobile

Name: High Power Aluminum Base LED PCB for Motorcycle and Mobile
Brand: all-electronics-online.com
SKU: 699725212
Availability: InStock
Rating: 4.9 (91 reviews)

Price:	US $ 65-90/Square Meter
Trade Terms:	FOB,CIF
Min Order:	5/Square Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Description:

It's widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.
The tapy and specification of Aluminum based PCB CCAF-01, CCAF-04-A, And 0.8mm, 1.0mm, 1.5mm, 2.0mm, etc.
Thickness of the copper: 18um, 35um, 70um, 105um.

Technique parameter:

Item	Test item				Technology request	Unit	Test result
1	Peel Strength		A		≥ 1.0	N/mm	1.05
1	Peel Strength		After thermal stress (260 ordm;C )		≥ 1.0	N/mm	1.05
2	Blister test AfterThermal stress (288 ordm;C, 2min)				288ordm;C 2 min No delaminating	/	OK
3	Themal Resistance				≤ 2.0	ordm;C /W	0.65
4	Flammability(A)				FV-O	/	FV-O
5	Surface Resistivity	A			≥ 1 × 10 5	M Ω	5.0 × 10 7
5	Surface Resistivity	Constant humidity treatment (90%,3 5 ordm;C ,96h)			≥ 1 × 10 5	M Ω	4.5 × 10 6
6 7	Volume Resistivity	A			≥ 1 × 10 6	M Ω· m	1.0 × 10 8
6 7	Volume Resistivity	Constant humidity treatment (90%,3 5 ordm;C ,96h)			≥ 1 × 10 6	M Ω· m	1.9 × 10 7
8	Dielectric Breakdown (DC )				≥ 25	Kv/mm	31
9	Dielectric constant (1MHz) (40 ordm;C, 93% , 96h)				≤ 4.4	/	4.2
10	Dielectric dissipation factor (1MHz ) (40ordm;C ,93%,96h)				≤ 0.03	/	0.029
	Accelerated aging experiment (125 ordm;C ,2000h)				The laminate bace should no wrinkles,no crack,no delaminating or no pine	/	OK
11	High low temperature impact test (-50 ordm;C, 15min, 80ordm;C , 15minTOTAL DO 15 ~ 20 Circulation)			Peel Strength	/	N/mm	1.39 ~ 1.64
11				Surface Resistivity	/	M Ω	1.9 × 10 8 ~6.4 × 10 8

Prod Model:	PCB-03 Aluminium Gold Plating
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness Of The Copper:	18um, 35um, 70um, 105um.
Type:	Rigid Circuit Board
Material:	Aluminum Covered Copper Foil Layer

Zhejiang Zapon Electronic Technology Co., Ltd is a professional manufacture of Aluminum base PCB and rigid PCB. Which have the factory of Alu base PCB, double side PCB, multi-layer PCB and PCB assembly etc. We have the ability of produce for any medium and mass quantity. The machine of our factory are on work all day and all night. With Zapon as a supplier, you will have the highest quality, quickest delivery. The detail information of our company are in below:
Establishment: 1997
Registered Capital: US$10M
The area of company: 16800m2
The number of staff: 622
Products:
Aluminum base PCB: One side aluminum PCB and double side Alu-PCB
Double-side PCB: FR-4, CEM-3, High Tg, Halogen Free
Multi-layer PCB: 4 to 22 layers(FR-4, High Tg, Rogers)
Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS
THE CAPACITY OF PRODUCTION: 50, 000SQM. /month

All your inquiry of quotation will be replied within 4-hour. Our engineer will be on your service at any time. And your satisfaction is our biggest wish! ! !

Through the efforts of all staffs. Zapon has stood out among PCB company like us and has became a leading company in this industry. We have won accptance and set up a good reputation in domestic and international markets with the competitive price, the perfect atfter-sales services and the wide support of the suppliers. Our main clients in Samsung, Turkey, Italy, England, Portugal, America etc. Our products meet the military and IPC standards and specifications.

We hope we can be your best partner and offer you the best price with good service Do the biggest assistant for you to reduce your cost.
As long as we have the first cooperation, we believe we will get together, we are confident for establishing a long term friendship once our first cooperation made.
