High Power Diode for Welding Machine

Name: High Power Diode for Welding Machine
Brand: all-electronics-online.com
SKU: 708565632
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	US $ 6-30/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

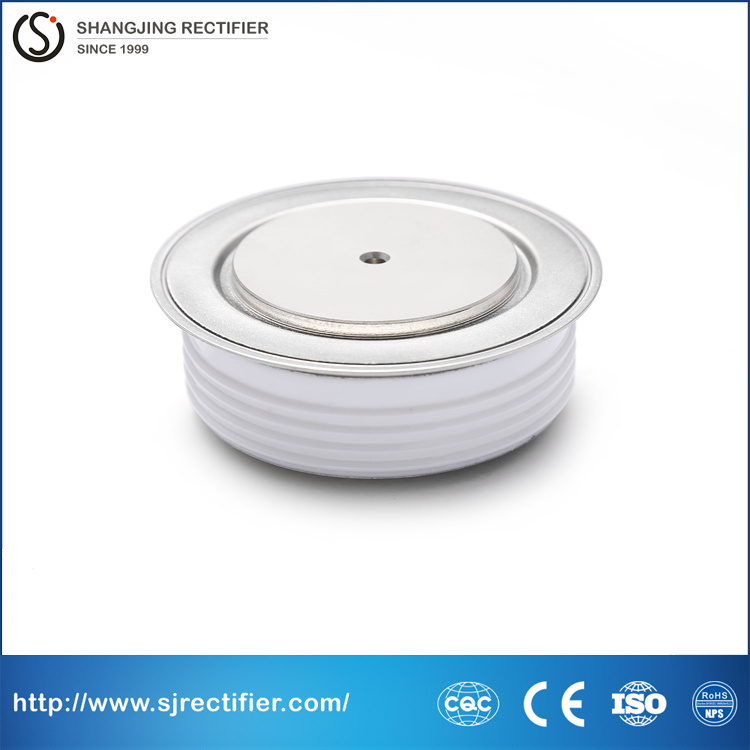

Standard recovery diode(capsule version)
Features
All diffuse te chinics
Ceramic type seal
Bifacial cooled
Typical Applications
Big power transformer
Welder
Motor control
Charger

Type	VRRM	IF(AV)	IRRM	VFM/IFM	Rth(J-hs)	Tjm	M 2	Outline
		THS55° C		25° C
	V	A	mA	V/A	° C /W	° C	kN
SD200C	200-3000	200	16	1.8/600	0.090	150	3.3-5.5	E1/E2
SD300C	200-3000	300	30	1.8/900	0.065	150	5.3-10	E1/E2
SD400C	200-3000	400	40	1.8/1200	0.040	150	10-20	E1/E2
SD500C	200-5000	500	40	1.8/1500	0.040	150	10-20	E2/E3/E5
SD600C	200-5000	600	40	1.8/1800	0.033	150	10-20	E3/E5
SD800C	200-5000	800	80	2.2/2400	0.022	150	19-26	E5/E6
SD1000C	200-5000	1000	80	2.0/3000	0.022	150	19-26	E5/E6/E8
SD1200C	200-5000	1200	120	2.2/3000	0.020	150	21-30	E8
SD1500C	200-5000	1500	120	2.0/3000	0.020	150	21-30	E8/E9
SD2000C	200-5000	2000	160	2.2/4000	0.016	150	30-40	E11/E12/E13
SD2500C	200-5000	2500	200	2.2/5000	0.011	150	35-47	E11/E12/E13
SD3000C	200-5000	3000	160	2.0/5000	0.016	150	30-40	E11/E12/E13
SD3500C	200-5000	3500	200	2.0/5000	0.011	150	35-47	E14/E15
SD4000C	200-5000	4000	200	2.0/5000	0.009	150	70-85	E14/E15
SD5000C	200-5000	5000	200	2.5/5000	0.0135	170	70-85	E14/E15

Prod Model:	SD400C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm:	200-3000V
If(AV):	400A
Irrm:	40mA
Vfm:	1.8V
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Metal Ceramic Seal
Application:	High Power Inverter, Welding
Model:	SD400c
Batch Number:	2016+
Brand:	Shangjinh
