| Prod Model: |
TSM30WF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
Fiber Laser |
| Model No: |
Tsm30wf |
| Laser Power: |
10W/20W/30W |
| Max.Marking Area: |
110*110mm |
| Cooling Way: |
Water Cooling |
| Marking Depth: |
0.01~1mm |
| Minimum Character: |
0.15mm |
| Engraving Speed: |
0-7000mm/S |
| Minimum Line Width: |
0.01mm |
Product Description

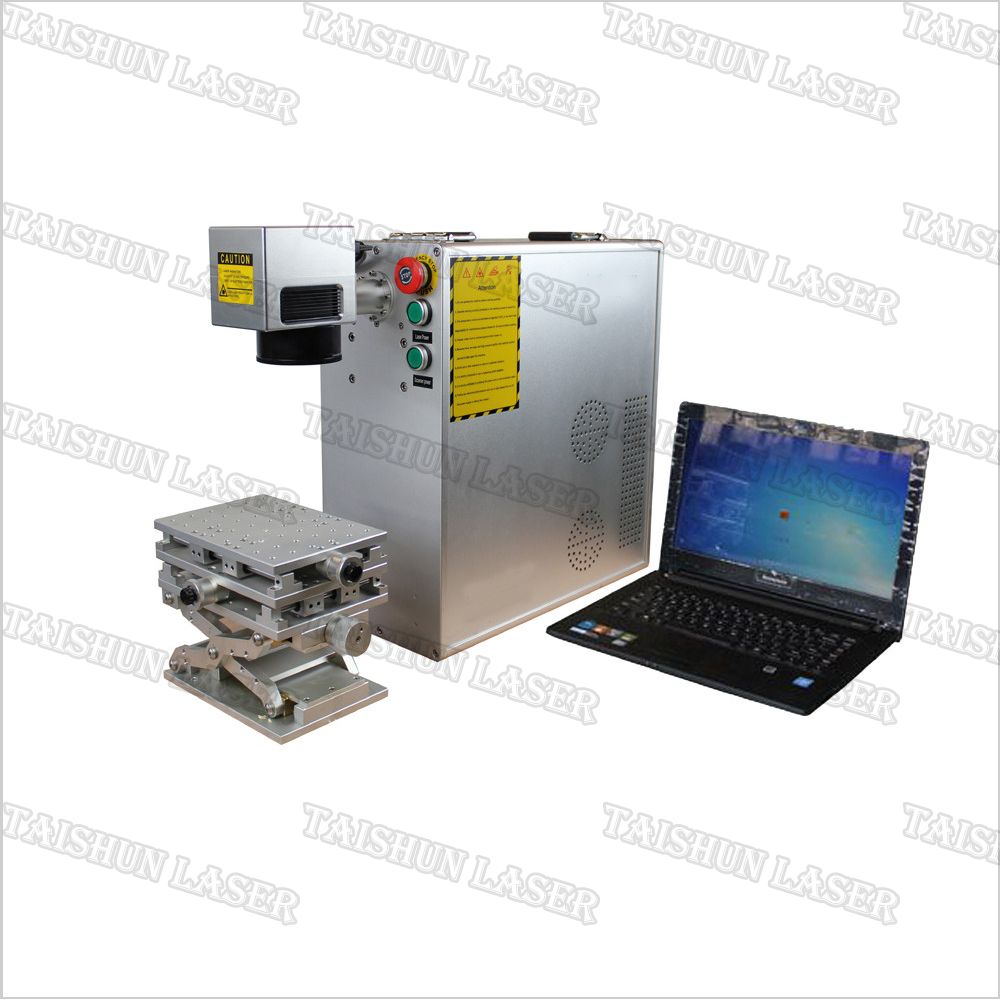

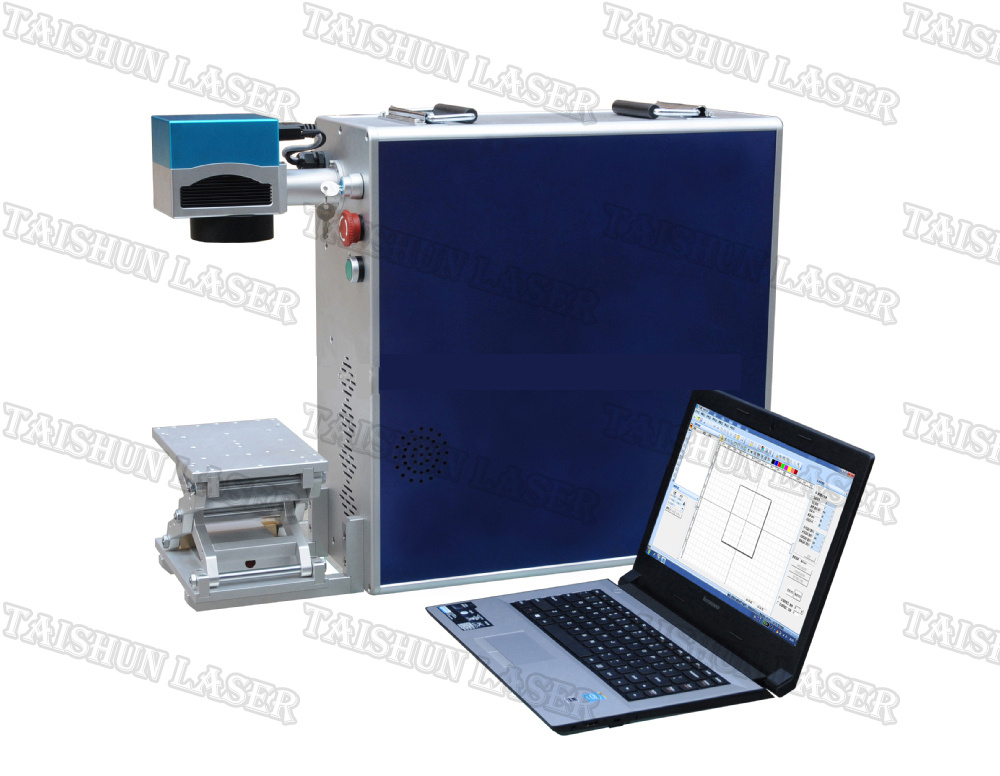

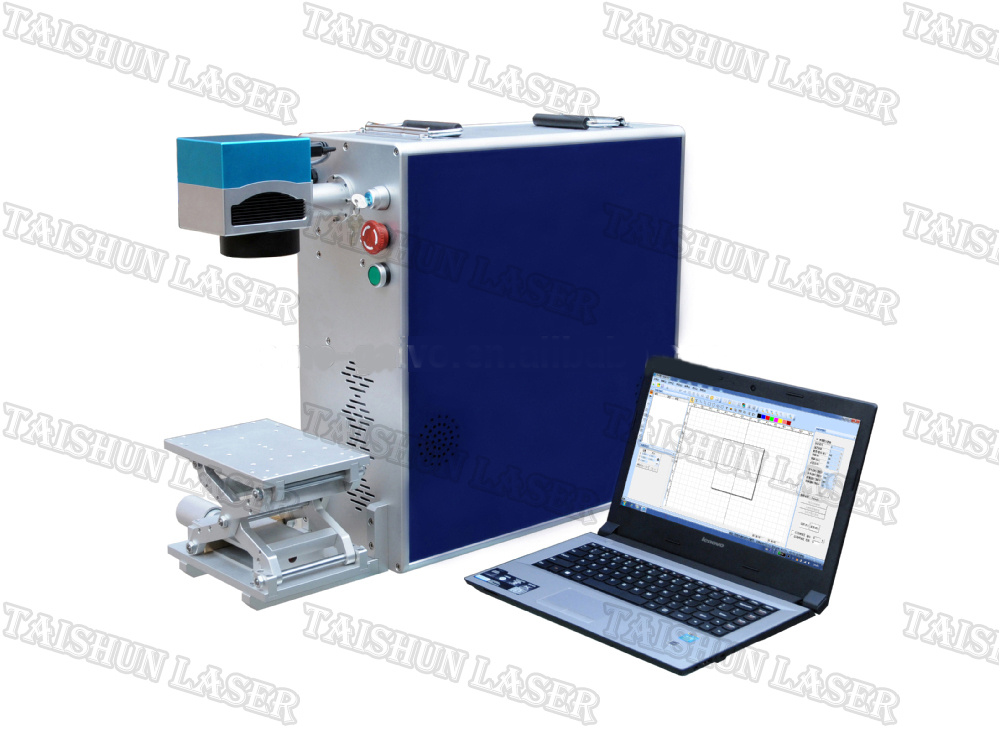

Fiber metal laser marking machine
10W/20W/30W carbon steel, stainless metal sheet CNC fiber laser marking machine with Trumpf / Rofin /SPI /Raycus/ IPG
>>>Machine's main introduction
High quality fiber laser source ensures a long lifetime. IPG/SPI laser source boasts 100000 hours. Take 12 operating hours per day for example, nearly 22 years. Raycus/Max/JPT laser source boasts 50000 hours.
Take 12 operating hours per day for example, nearly 11 years; Excellent beam quality; High precision and smooth cutting edge
>>>Series charactrristic:
1. With humanization design, and practical use testing.
2. Use famous well-know brand: Schneider.
3. The driving system uses rail guide and ball screw made by Taiwan Hiwin, the smoothly moving track increases the speed and accuracy.
>>> Features:
1. Fast cutting speed. Three times of CO2 laser cutting machine
2. High conversion rate between laser and electricity(about 30%); Low electricity consumption
3. Low operation cost. Flexible transmission. Auxiliary gas free helps saving operating cost
4. High stability ensures a satisfied cutting progress
5. Professional CNC cutting software supports AI, DXF, PLT, GBX files and boasts below functions: Bridge connection, leapfrog, slotting compensation, etc.
6. Consumable free; No maintenance
>>> Technical parameters
Laser Generator Brand |
RAYCUS/IPG |
RAYCUS/IPG |
RAYCUS/IPG | |
Laser Power(W) |
≥10 |
≥20 |
≥30 |
40W 50W optional |
Galvo Marking Speed |
≥7m/s |
≥7m/s |
≥7m/s |
Max 9m/s |
Marking Area |
110mm |
110mm |
110mm |
175mm optional |
Marking Focus |
180mm |
180mm |
180mm | |
Marking Content |
Vector, bar code, a variety of fonts, photos, and other formats | |
Marking Mode |
Static state and dynamic state | |
On-line Speed |
≤120m/min |
Depends on marking content |
Operating Temperature |
5-35°C | |
Operating Humidity |
Relative humidity is less than 95%, No condensation | |
Structural Materials |
Good-quality aluminum alloy, stainless steel | |
Edit Mode |
Computer software to edit | |
Communication Interface |
USB, RS232 interface | |
Power Supply |
AV220V/50Hz | |
Rated Power |
500W |
800W |
1000W | |
Optional Accessories |
Sensor, On-line detection speed encoder, rotary marking, equipment cabinet, laser generator support |
Foot switch |
>>> After-sales service
1. One year guarantee period for product quality. (man made damaged is negotiable).
2. Lifelong maintenance and spare parts supply.
3. Free design of fixtures as customers required.
4. Free training for machines installation and operation of the staffs.
5. Free samples marking of customer provided.
Warmly welcome you visit our factory! ! !
Warmly welcome you contact us directly for more information! ! !
