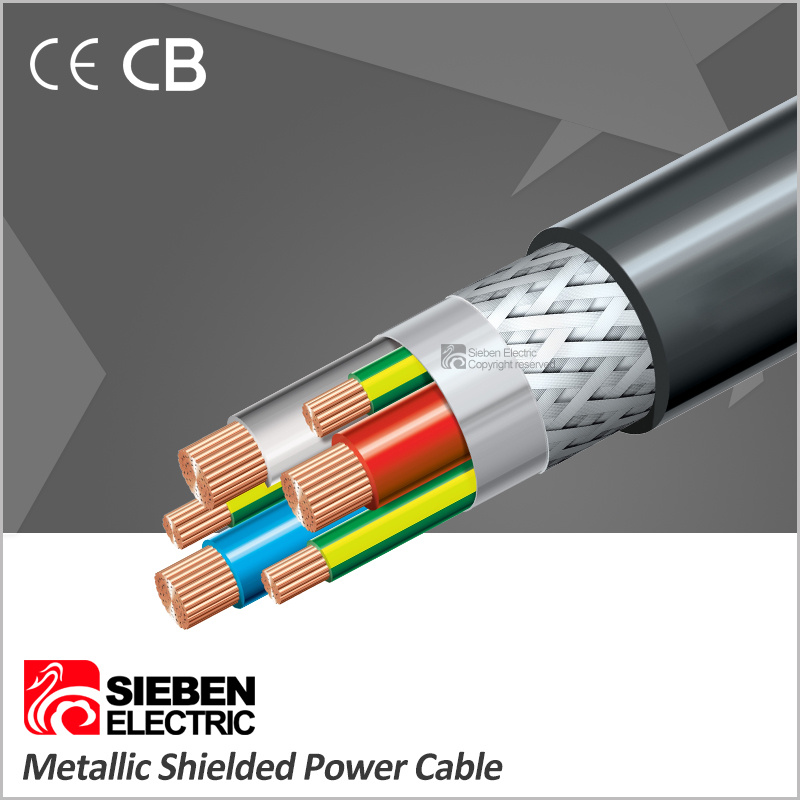

High Quality 0.6/1kv XLPE or PVC Insulation Metallic Shielded Power Cable

High Quality 0.6/1kv XLPE or PVC Insulation Metallic Shielded Power Cable
Price: US $ 100-1000/Roll
Min Order: 1/Roll
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: MSPC
Application: Computer
Voltage: Low and Medium Voltage Cable
Current: AC Cable
Insulation Material: XLPE
Certification: RoHS
Brand: Sieben Electric

Product Description

Metallic shield power cable is used for electricity transmission on power lines with rated voltage 0.6/1kV or lower. The metallic shields used in the construction of the shielded cable have the ability to prevent electromagnetic interference and defend against damage from lightning strikes. The screened cable otherwise known as the metallic sheathed cable is especially suitable for locations that use sensitive electronic devices such as computer centers and air traffic control centers.

Usage Characteristics of the Metallic Shielded Power Cable
  1. Highest working temperature:
PVC insulation is 70ºC
XLPE insulation is 90ºC

  1. Short-circuit time (below 5s), the temperature of the conductor will not exceed:
PVC insulation is 160ºC
XLPE insulation is 250ºC

  1. The minimum bent radius of the cable:
Single core is 20D, multiple core is 15D

  1. Installation should not be performed in temperatures below 0ºC

Main technique function of the metallic shielded cable
  1. Conductor construction and conductor resistances of the cable match table 1-2
  2. The cable experiments through an voltage of AC 3500V for 5 minutes

Type and Description of Cable: See table 5-1

Table 5-1 Type and Description of Metallic Shielded Power Cable
TypeDescription
CuAl
VVPVLVPMetallic shielded power cable Cu/Al conductor PVC insulation and sheath
YJVPYJLVPMetallic shielded power cable Cu/Al conductor XLPE insulation and PVC sheath
VV22PVLV22PMetallic shielded power cable Cu/Al conductor PVC insulation, steel tape armor, and PVC sheath
YJV22PYJLV22PMetallic shielded power cable Cu/Al conductor XLPE insulation, steel tape armor, and PVC sheath
Note: The metals of the cable shields can press customer request to adopt the metals silk shields or the metals takes to shield, fixing to use the cable recommend to adopt the metals takes the shield.

Specifications of cable see table 5-2

Table 5-2 Specifications of Metallic Shielded Cable
TypeCore numbermm2
CuAl
VVP
YJYP		VLVP
YJLVP		116~300
VVP
YJYP
VV22P
YJV22P		VLVP
YJLVP
VLV22P
YJV22P		24~185
34~300
3+1
44~300


Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
