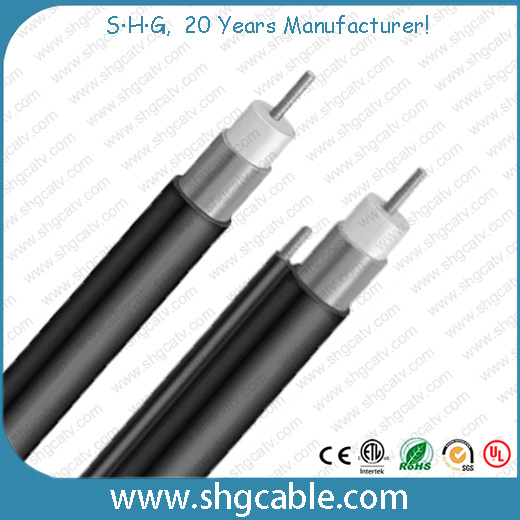

High Quality 75 Ohms 565jca Trunk Coaxial Cable
| Price: |
US $ 0.65-0.7/Meter |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
565JCA |
| Conductor: |
Aluminum |
| Outer Jacket: |
PE |
| Return Loss: |
23dB Min(5-2300MHz) |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Type: |
565jca |
| Wire Core Material: |
CCA |
| Model: |
565 |
| Brand: |
OEM |
Product Description
SHG quality 75ohm trunk cable CATV coaxial cable 565JCA Aluminum cable, use RF Solid seamless Aluminum Tube 565JCA Messenger, High quality 75 ohms trunk coaxial cable, appliy for CATV & Satellite TV system, high performance, quality warranty. UL, ETL, CE, RoHS, ISO9001 approved !Construction (565CA): Center Conductor: 3.28+/-0.01mm Solid Copper Clad Aluminum
Dielectric: 13.20+/-0.05mm Foam PE
Shield: 0.65mm Solid Aluminum Tube
Jacket: 16.00+0.05mm PE
Jelly/APD: Per customers' requirement
Messenger (Aeria): 2.77mm steel Characteristics Sparker Test: 4000VAC Impedance: 75+/-2 Ohm
Capacitance: 54+3pF/m Velocity of Propagation: 88%
Return Loss: 20dB min (5-2300MHz)Attenuation Sheet| Frequency (MHz) | Attenuation (dB/100m) | Attenuation (dB/100ft) |
| 5 | ≤0.46 | ≤0.14 |
| 55 | ≤1.54 | ≤0.47 |
| 211 | ≤3.12 | ≤0.95 |
| 400 | ≤4.33 | ≤1.32 |
| 550 | ≤5.12 | ≤1.56 |
| 750 | ≤6.07 | ≤1.85 |
| 865 | ≤6.56 | ≤2.00 |
| 1000 | ≤7.12 | ≤2.17 |

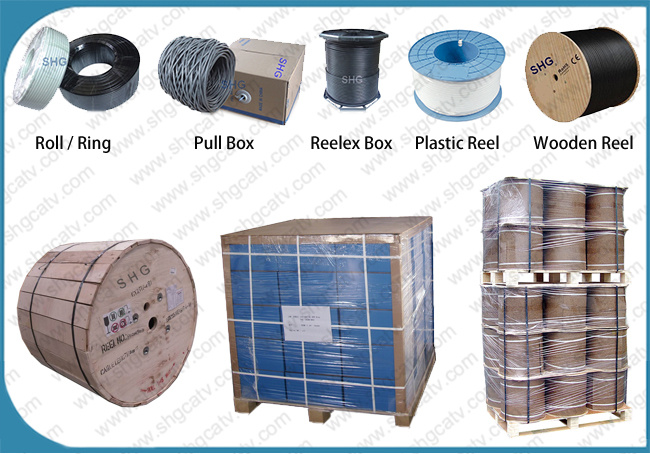

Package - any length in roll / reel

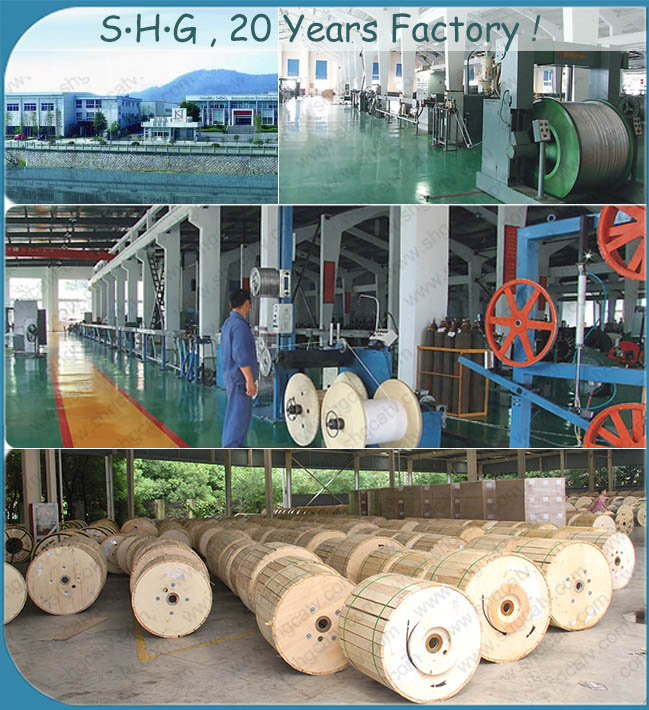

Why choose us - see our cable workshop
