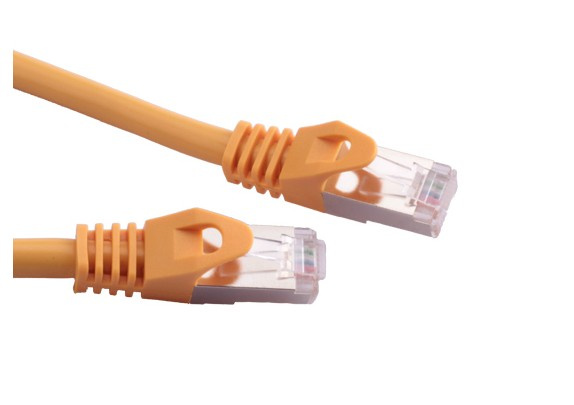

High Quality CAT6A Patch Cord Cable Network Cable
0.57mm 23 AWG, High Speed SSTP cat6A Patch Cord Cable with UL complaince
1x 4 PAIRES SOLID COPPER (100% COPPER) AWG23 100 OHMS LSZH
Yellow LSZH JACKET

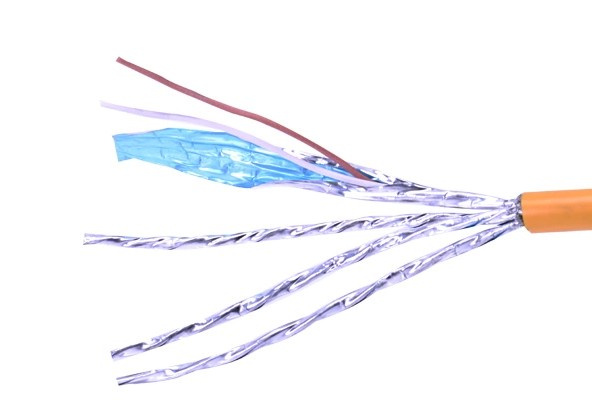

Each pair must be Aluminum foiled separately

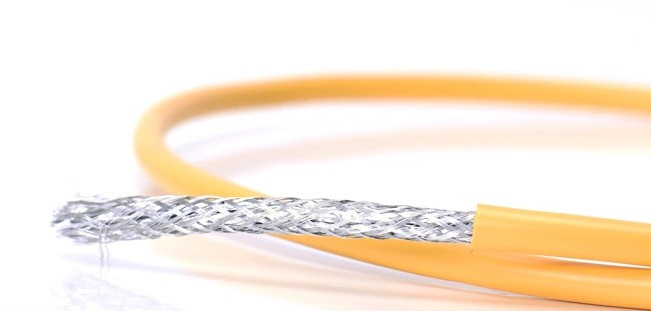

Overall shielding with Aluminum foil, tinned copper drain wire
500M/WOOD DRUM
WOODEN PALLET PACKAGE
OEM order is welcome
· Includes:
BC conductor
F-PE insulation
Twisted pair screen
Drain wire
Overall screen
Rip cord
PVC sheath
· Conductor:
Material: Solid bare copper
Number of pairs: 4 pairs
AWG: 24
Conductor diameter: 0.575 ± 0.003mm
· Insulation:
Material: F-PE
Diameter: 1.35 ± 0.005mm
Average thickness: 0.3875mm
Minimum point thickness: 0.3870mm
Twisted pair screen: AL foil (25%)
Drain wire: Ø 0.4mm TC
Overall screen: AL foil (25%)
Jacket rid cord: Optional
· Sheath:
Material: PVC or LSOH
Nominal diameter: 8.5 ± 0.2mm
Average thickness: 0.65mm
Minimum point thickness: 0.645mm
Operating temperature: -20 to 75° C
Minimum bend radius (install): (OD) 8mm
Flame test: CMX, CM, CMR and IEC60332-1
| Product: | Patch cord |
| Category: | Cat 5e, Cat6, Cat 6a, Cat7 |
| Shirleding: | UTP, FTP, SFTP, SSTP |

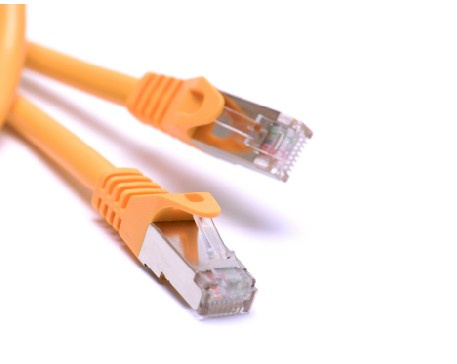

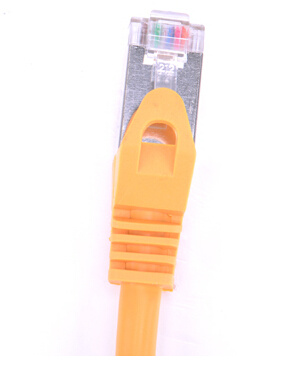

| Connector | RJ 45 connector |
| Conductor | Bare copper, CCA ( copper clad alunimum) or CCS ( copper clad steel) |
| Guage | 22AWG, 24AWG, 26AWG, 28AWG, 30AWG |
| Insulation | HDPE |
| Shirleding | Aluminum foil and Braiding |
| Jacket | PVC, LSZH. |
| Color | Black, white, grey, blue, red, orange ,yellow, purple,green ,transparent ^ |
| OD | 5.0mm, 5.2mm, 5.4mm, 5.7mm ... |
| Length | 0.25m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 80m,100m,etc |
| Compliance | ATC, UL, ETL, CE, RoHS, REACH |

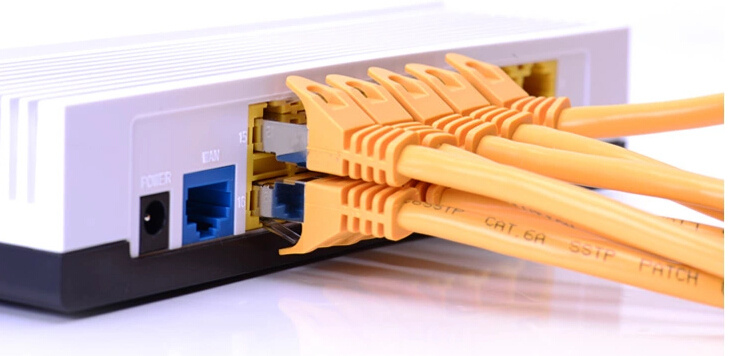

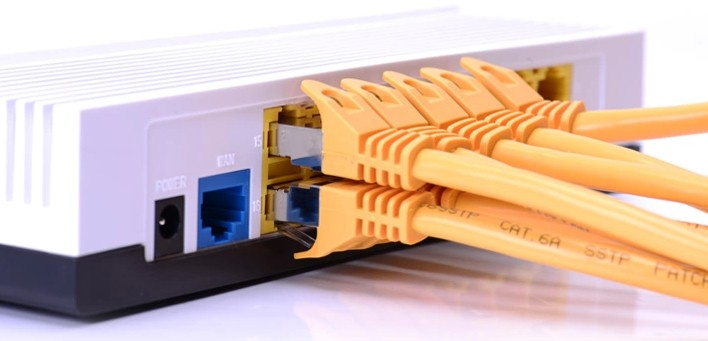

| Application | 1.PC with Switch, Hub, ADSL, Router, Wall Socket, Network Module Plate,etc.
2.Connect 2 XBOX consoles for multi player gaming
3.ADSL, Modem with Hub or Router |
| Compatibility | 100 Base-T4
100 Base-TX
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM |
| Package | Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized |
| ELECTRONICS |
| QC | 100% open and short test |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M ohm min |
| Contact Resistance | 3 max |
| Working Temperature | -25C-80C |
