| Prod Model: |
RG59 |
| Rg59: |
CCTV |
| Inner Conductor: |
0.81 Bare Copper |
| Shield: |
95% CCA or Bare Copper Wires |
| Outer Jacket: |
UL, ETL Rated PVC |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
Reach |
| Type: |
Rg59 |
| Model: |
Rg59 |
| Brand: |
OEM |
Product Description
SHG high quality UL ETL rated CCTV 75 ohms RG59 cable RG59 with 18AWG/2cores figure 8 siamese cable, apply for CCTV, high performance test to 3GHz, low attenuation, high return loss, quality warranty.
Rated : FT4, FT6, CMR, CMG
Test up to 3GHz, UL, ETL, CE, RoHS, ISO9001 approved !Features - 100% tested ; - Low Attenuation;
- High reliability ; - Rated: FT4, FT6, CMR, CMG ; - Lifetime Warranty ; - Impedance: 75+/-3 Ohms;
- CE & RoHS, ETL, UL compliant ; - Velocity of Propagation: 82%Construction
1: single RG-59U 95%: Center Conductor: 0.813+/-0.01mm (20AWG) Solid Copper
Dielectric: 3.71+/-0.05mm Foam PE
Shield: Optional Single / Double Bonded or unbonded Aluminum / Copper Foil
Braid: 95% Copper or CCA wires
Jacket: 6.15+/-0.05mm PVC

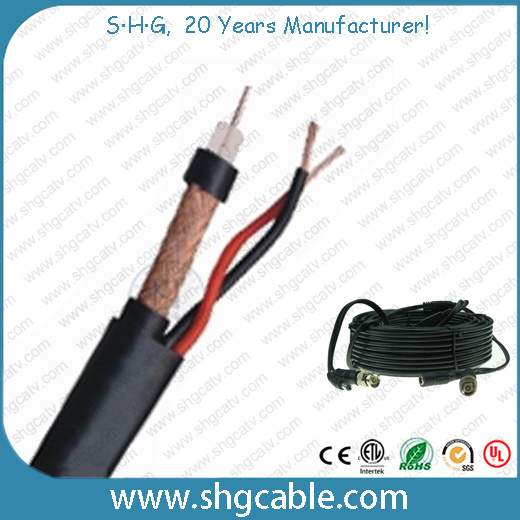

2: RG-59U 95% + 2 cores 18AWG power wires, figure 8 type: Center Conductor: 0.813+/-0.01mm (20AWG) Solid Copper
Dielectric: 3.71+/-0.05mm Foam PE
Shield: Optional Single / Double Bonded or unbonded Aluminum / Copper Foil
Braid: 95% Copper or CCA wires
Jacket: 6.15+/-0.05mm PVC
(CM, CMR, CMG, FT4, FT6 rated) Power Wire: Conductor: 7*0.38mm strand Bare Copper wires
Insulation: 2.0+/-0.05mm PE/PVC

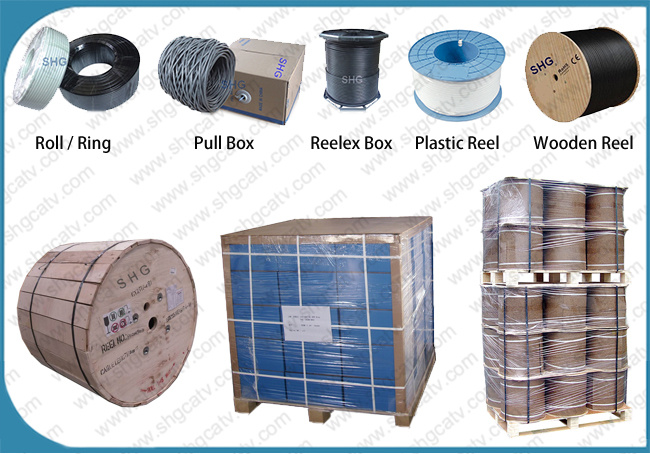

Package: 1000FT, 500FT/wooden reel, Reelex Box, pull box
CharacteristicsSparker Test: 4000VAC Impedance: 75+/-3 Ohm
Capacitance: 54+3pF/m Velocity of Propagation: 82%
Return Loss: 20dB min (5-2300MHz)
Attenuation| Attenuation | [@68 o F. (20 o C. )] |
| Frequency (MHz) | Max. (dB/100 ft. ) | Frequency (MHz) | Max. (dB/100 ft. ) |
| 1 | 0.30 | 400 | 6.01 |
| 10 | 0.86 | 700 | 8.47 |
| 50 | 1.91 | 900 | 9.82 |
| 100 | 2.78 | 1000 | 10.47 |
| 200 | 4.06 | | |
Package - any length in roll / reel / box

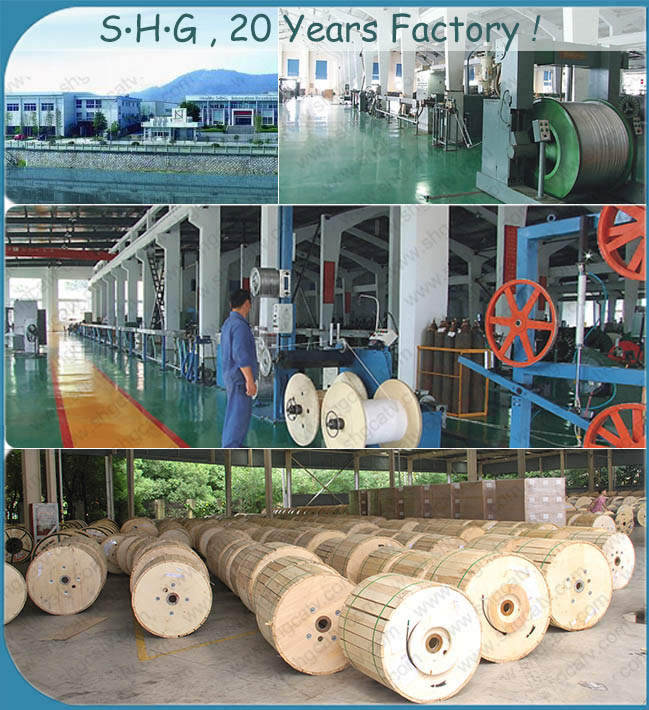

Why choose us - see our cable workshop
We, SHG produce the quality, we focus on quality in our over 20 years growing. RFQ 1. OEM: OEM available, your logo & reference on products & package available.
2. Lead Time: usually it take 15-25 days after order confirmed (deposit received).
3. Shipping Port: Ningbo, Shanghai. (Shenzhen, need add some local charge).
4. Payment Term: 30% T/T in advance as deposit, balance upon copy of B/L.
5. Manuafacturer: SHG is a group company, we have subsidiary produce cables, equipments, accessories. Honestly although some products we don't produce ourself, but as we are big, and we have strategic cooperation partner, we can get the best price. During our years experience and respond from customers, our price is very competitive.
6. Reputation: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. It's our honor to treat customers and our vendors as long term partner relatioship.
SHG Communication Technology Ltd.
SHG Cable (Hangzhou) Co., Limited
Lin'an Longshine Imp. & Exp. Co., Ltd
SHG Group is aiming to manufacture quality warranty CATV & Optical fiber products, include communication cables & wires, researching and developing optical equipments, CATV equipments and headend equipments and network accessories. With ISO9001: 2000 certification, also achieved some international certificates such as ETL, CE, RoHS, REACH.
With abundant skilled workers and researching departments, owns the most advanced production lines, precise testing machines and strict complete quality control systems and managements, we can guarantee all of our products delivery comply with standards or according to customer's specific requirements, test 100% approval.
"Quality SHG, Innovation Development! " We are warmly welcome you come to visit us and discuss. We are sure you will satisfy and deserve your visit. Once you cooperate with us, you will feel find business goes easy.
Company Managing Ideas:
Customers: We are cooperating with a group of outstanding customers, whose demand for our products and service enrich our wealth. Only can we provide the best service quality and the most efficient work to make progress, so as to satisfy our customers' expectation and maintain our long-term relationship.
Products: We manufacture and sell top-quality products as well as cut down on costs with quantity production, so as to add the purchasing value for our customers.
Employees: Employees are deemed as the most important assets of our company. We'd employ those who are devoted to their work, who are good at learning and collaborating; Who are in pursuit of excellence, so as to satisfy a sense of achievement; Who are honest, fair and respectful to others; Who are promoted for their good performance rather than their politics or background.
Suppliers: We could not develop without the top-quality raw materials from our suppliers. We commit to build up a long-term commercial alliance with qualified suppliers, as we target to become partners based on trustworthy and reciprocal relationship.
Innovations: Innovation is the motive power of company growth and we take active actions to make it come true. For the sake of standing out in the competition, we challenge ourselves with the experimental spirit. To anticipate new changes and to incubate such changes are of great importance to our existing businesses as well as our newly-developed products or service.
Our advantage:
1. Excellent sales & service team. Our team all owns abundance export experience, it help us supply prompt and effective service for you.
2. Strict & complete QC system. From first step till goods loaded, we have complete QC and tracking system to warranty our products in good quality. And beside factory inside QC, we have separate QC belong to our trading company, we will do supervision during all procedure.
3. Wide-range products. Right now, we can offer full range products for CATV & optical area, we establish stable relationship with different factories, and also get some exclusive foreign sales agreements with them. And except this, our sourcing team can sourcing as specialist according to your requirements.
Once you cooperate with SHG, you will feel easy and convennient, and 'One-stop shop" purchase in China is not a problem to you anymore!
