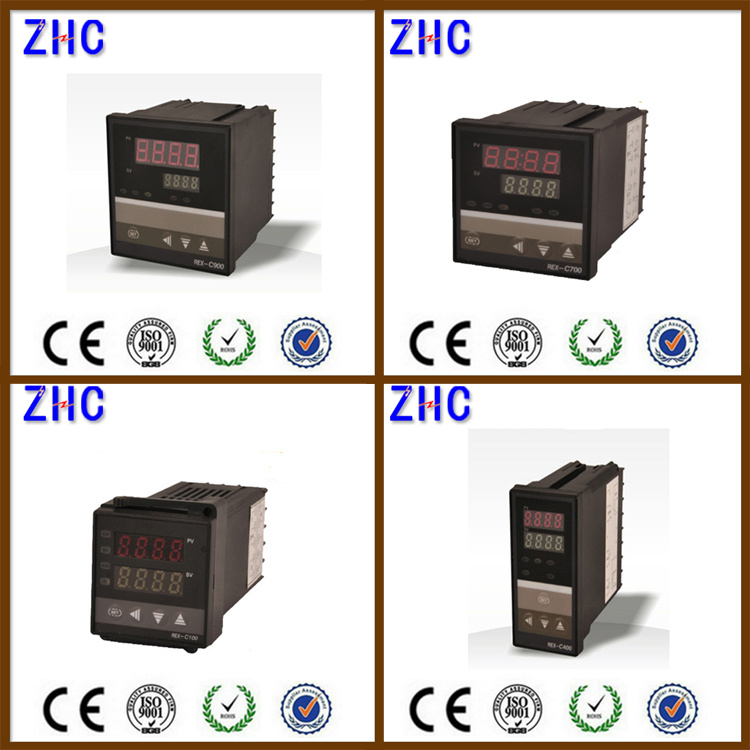

High Quality Digital Temperature Controller (REX)

Name: High Quality Digital Temperature Controller (REX)
Brand: all-electronics-online.com
SKU: 784666495
Availability: InStock
Rating: 4.6 (150 reviews)

Price:	US $ 1-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

high quality digital temperature controller (REX)

Description of product

REX series intelligent digital display temperature controller adopted the latest plane touch operation and microcomputer control technique.

The series intelligent digital display temperature controller is a kind of economical instrument with high price-property ratio, which can substitute for the general digital display temperature controller. It has many functions such as control, alarm. transformation and transfer, Moreover, it has PID control function.

Product advantage

1. Display PV value and SV value by the high bright red and green double-row digital tube

2. Appointed input by sensing signal

3. Automatic amend by sensing unit

4. Function of sencond class data lock protection

5. Precise measurement:

1)±1%FS ± one digit

2 ) ±0.5%FS ± one digit

6. Alarm range: free set the complete range

7. Operating power supply:

1 ) Switch power: 85 - 264 VAC 50/60Hz

2 ) Transformer power supply: AC220V ± 10%,50/60HZ

Technical Data

Input	Thermocouple(TC),Resistance Temperature Detector(RTD),Standard Current and voltage signals.
Display	Process Value(PV),Setting Value(SV):-1999~+1999 Output( OUT1,OUT2) Alarm(Alarm1,Alarm2) Auto setting(AT) Display: LED
Control way	1).PID Control(including ON/OFF, position PID and continuous PID) (2).Auto Setting Control
Accuracy	Measurement Accuracy:±0.5%FS Compensation error of cold terminal:±2°C(amend within 0~50°C by soft) Resolution:14bit. Sampling period:0.5Sec.
Setting Range	Setting Value(SV):same range with PV Proportional Band(P):0~full range(ON/OFF Control when set to 0) Integration Time(I):0~3600Sec (no integral action when set to 0) Derivative Time(D):0~3600Sec(no derivative action when set to 0) Proportional Period:1~100Sec On-off control output hysteretic loop width:1~100°C(or other PV units)
Control Output	(1)Currency output: DC 0~10Ma,4~20mA(RL less than 500Ω) (2)Voltage output: DC 0-5V,1-5V(RL more than 10K) (3)Relay output: Contact capacity:250V AC 3A(resistive load) (4)Voltage Impulse output:0-12V(applicable for solid state relay SSR) (5)Silicon Controlled Rectifier(SCR) output: zero-cross triggering or phase-shift triggering(resistive load) (6)Output Contact Capacity:250V AC 3A
Alarm output	2 groups output at most,12 modes
Inanlating resistanle	more than 50MΩ(500V DC)
Inanlating intensity	1500V AC/min
Power consumed	less than 10 VA
Work condition	0~50°C,30~85RH,no corrosive gas
Weight	abt.0.5Kg(CXTA type)

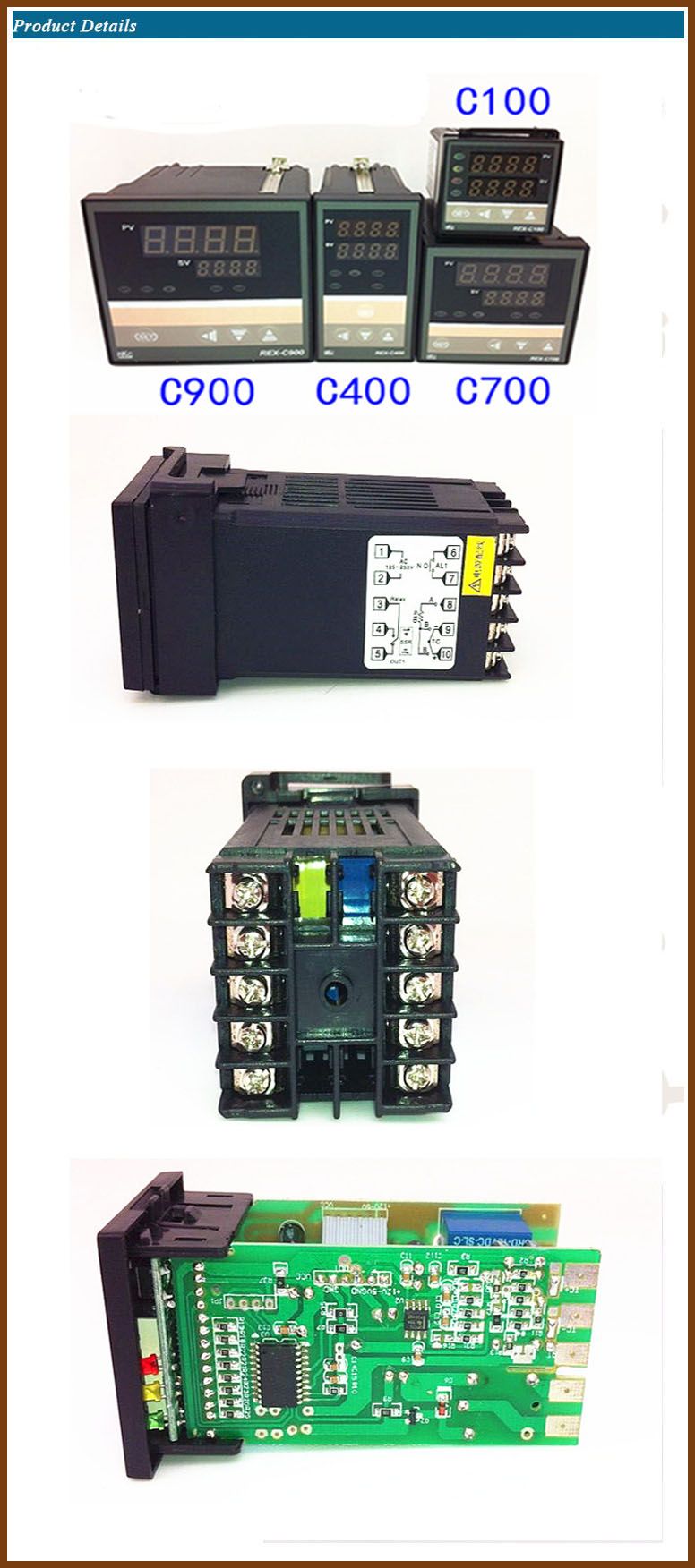

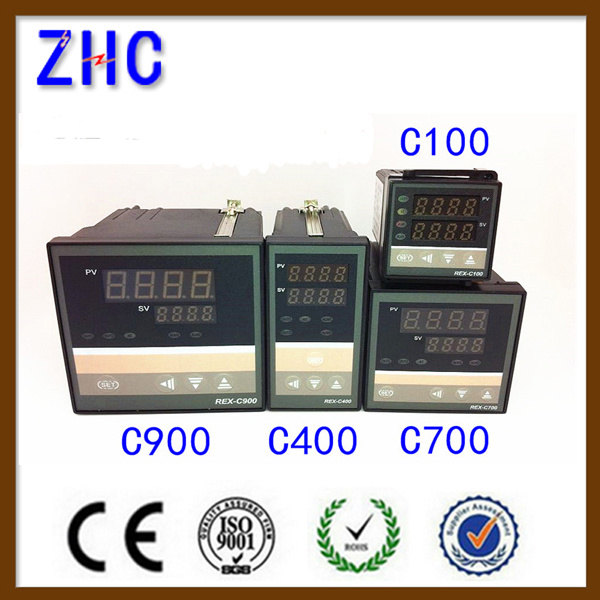

Product show

Similar product

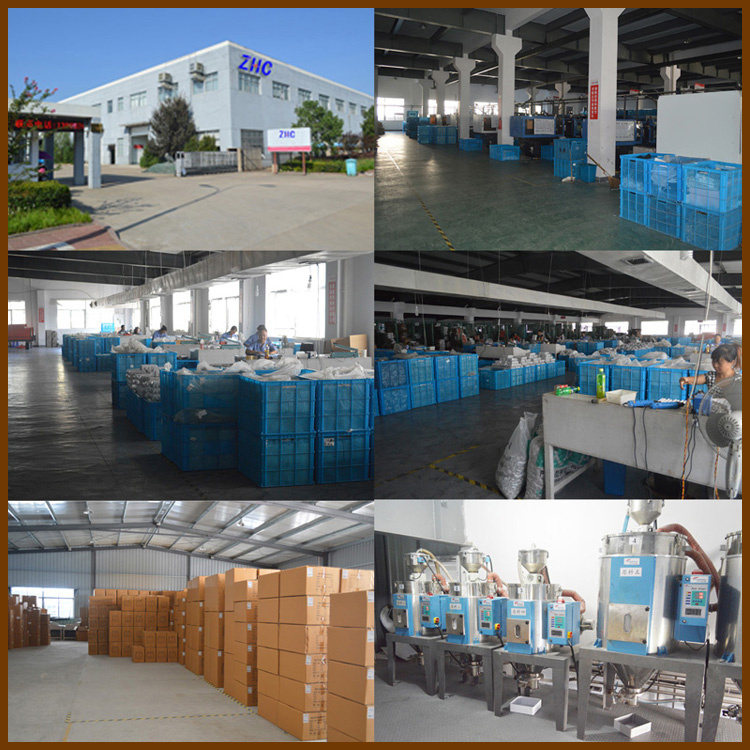

Our company

FAQ:
1. Q:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .
    We send the samples to you only after receipt of your payment.

2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing  size and your area.

3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you price list.

4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons
for the products,you can send us the artwork by email.

5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us  to send you a proforma invoice for  your order.

Prod Model:	REX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Alarm Range:	Free Set The Complete Range
Switch Power:	85 - 264 VAC 50/60Hz
Transformer Power Supply:	AC220V ± 10%, 50/60Hz
Color:	Black
Series:	Rexc-100/400/410/700/900
Display:	LED
Accuracy:	99.8%
Gross Weight:	400g
Alarm Output:	2 Groups Output at Most, 12 Modes
Warranty:	1 Year
Usage:	Air Conditioner, Refrigerator, Drying Equipment, Ventilation, Air Purifier, Industrial
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type
Operating Principle:	Semiconductor Refrigeration Equipment
Cooling Purpose:	Test
Material:	Plastic UL94V-0
