High Quality Industrial LED Switching Power Supply 12V 20A

Name: High Quality Industrial LED Switching Power Supply 12V 20A
Brand: all-electronics-online.com
SKU: 731154682
Availability: InStock
Rating: 4.4 (58 reviews)

Price:	US $ 4-6/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

1. Product Description

Model		S-250-12	S-250-15	S-250-24	s-250-27	s-250-36	s-250-48
Output	DC voltage	12V	15V	24V	27v	36v	48v
	Voltage tolerance	±1%	±1%	±1%	±1%	±1%	±1%
	Rated current	20A	16A	10A	9A	6.9A	5.2A
	Current range	0~20A	0~16A	0~10A	0~9A	0~6.9A	0~5.2A
	Rated power	250W	250W	250W	250W	250W	250W
	Ripple & noise	150mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p
	DC voltage	±10%	±10%	±10%	±10%	±10%	±10%
	adjustable range	±10%	±10%	±10%	±10%	±10%	±10%
Others	Dimension	21511550mm(LWH)
Others	Weight/packing	0.9g/24pcs/22.5kg/0.049m

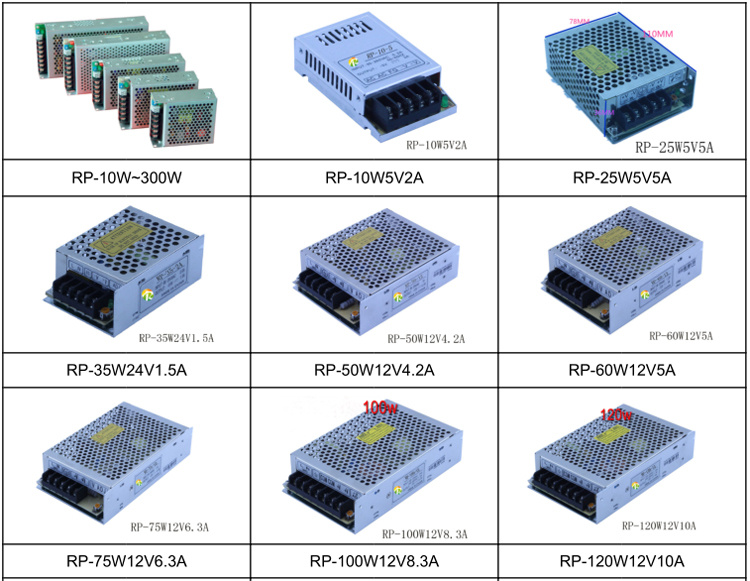

2. More products for your reference:

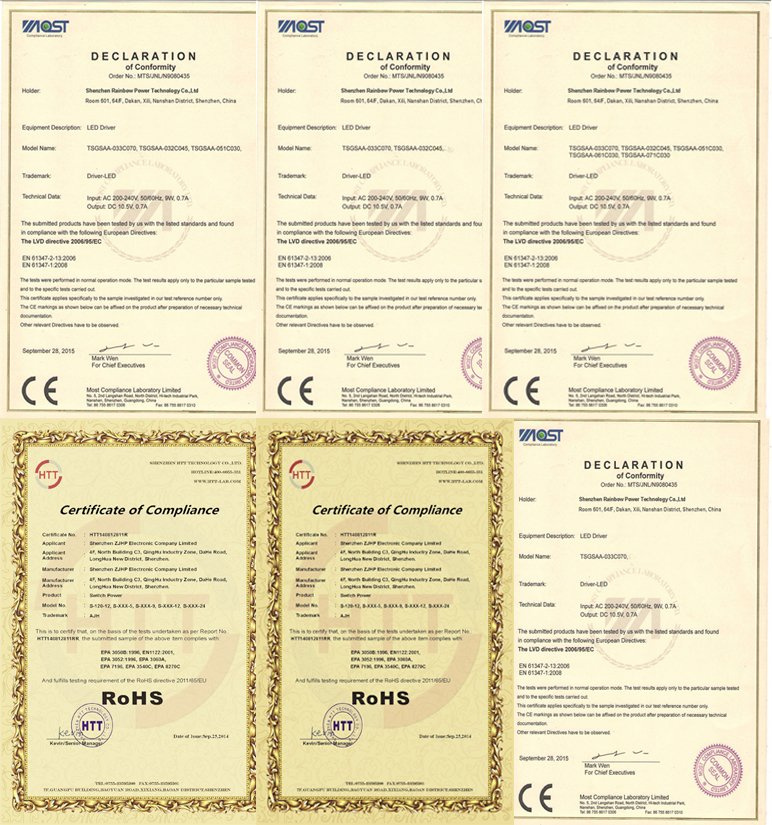

4. Certificate

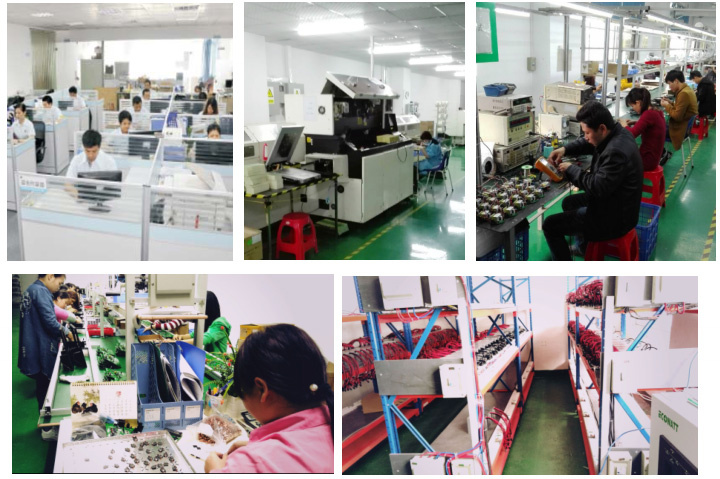

5. About Us:

6. FAQ

Prod Model:	S-250-12
Efficiency:	90%
Output Current:	20A
Output Voltage:	DC 12V
Protection:	Short Circuit/Over Load/Over Voltage
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS
Brand:	OEM

Shenzhen Rainbow Power Technology Co., Ltd is a professional manufacturer of Switching Power Supply for LED lighting projects, mechanical equipment, industrial automation, electronic technology, telecommunication, medical appliances and instrument meters etc.

Our main products: LED Driver, LED Power Supply, Switching Power Supply, LED Transformer, AC/DC Adapter etc.

We export to more than 30 countries, such as USA, Canada, Brazil, Columbia, Ecuador, Germany, France, Australia, Malaysia, HongKong, India, Egypt, Pakistan, Greece, UK and so on.

In order to ensure the stability and reliability of our products, Rainbow Power is equipped with many testing equipment for safety. Temperature, magnetic and EMI testing, automatic SMT machine and automatic solder machine etc., We have a team with well-experienced R & D Engineers then we are ready to design and produce your power supply.

Our mission is to provide Excellent quality, competitive price and more value-added service to our clients, all of these makes our core competitiveness get a far-reaching develop and prominent advance.

If you are interested in any of our products, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world.
