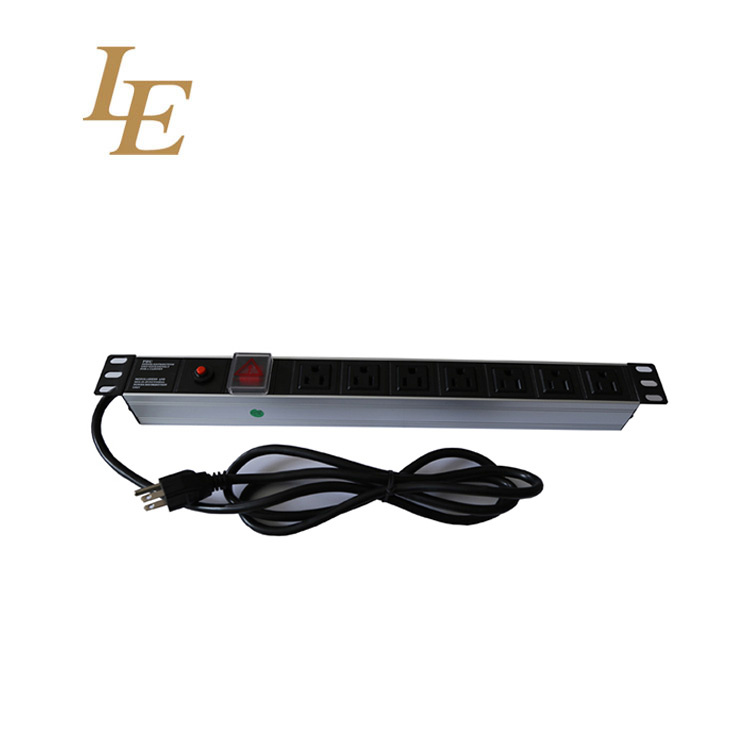

High Quality Industrial Rack Mountable Power Strip PDU for Network Cabinet

Name: High Quality Industrial Rack Mountable Power Strip PDU for Network Cabinet
Brand: all-electronics-online.com
SKU: 801290205
Availability: InStock
Rating: 4.7 (55 reviews)

Price:	US $ 5-20/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

General Description:
1.19" USA type PDUs are horizontal and vertical installation are optional,output available are 4 to 8way
2.Over 19" USA type PDUs are vertical installation ,output available are more than 8way
3.Height 1U and 1.5U are optional
4.Cable length is 2M,3×1.5mm2,other length optional
5.Kinds of control function and protection function are optional

Input characteristics
Rated input voltage	125VAC 50/60Hz
Type of plug	NEMA5-15P
Cable specification	16AWG
Cable length	2M
Max input current	15A
Output characteristics
Socket standard	NEMA5-15R
Output quantity	6
Rating output voltage	125VAC 50/60Hz
Max output current	15A
Functions
Control	Lighted master switch
Protection	Overload protection
Product size
Product size	L×W×H=482.6×44.4×62mm(19″)
Mounting length	465mm
Color&material
Color	black
Shell material	Aluminum alloy
Plastic flame retardant rating	UL94V-0
Test item
Hi-pot test	PASS
Grounding	PASS
IR	PASS
Certificate	CE RoHS TUV SGS
Mounting
Mounting method	Horizontal or vertical installation
Occupying space	1U

Prod Model:	USA Type
Product Name:	PDU
Rated Input Voltage:	125VAC 50/60Hz
Rating Output Voltage:	125VAC 50/60Hz
Max Input Current:	15A
Max Output Current:	15A
Type Of Plug:	NEMA5-15p
Cable Specification:	16AWG
Socket Standard:	NEMA5-15p
Output Quantity:	6
Certificate:	Ce RoHS TUV SGS
Grounding:	Standard Grounding
Shell Material:	Aluminum Alloy
Application:	Residential/General-Purpose
Cable Length:	2 Meter
Color:	Black
IP Rating:	IP44
Certification:	ISO: 9001
Customized:	Customized
Condition:	New

Ningbo Latitude Communication Equipment Co., Ltd was established in 2002, is a professional manufacturer specialized in server rack, network rack, outdoor cabinet, wall cabinet, all kind of power distribution Unit(PDU) and other communication products. Our factory is located at the south bank of Hangzhou Bay Bridge, nearby the Ningbo port(one of most big port in the world), which will be easy to transport our products to the whole world.

For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.

We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
