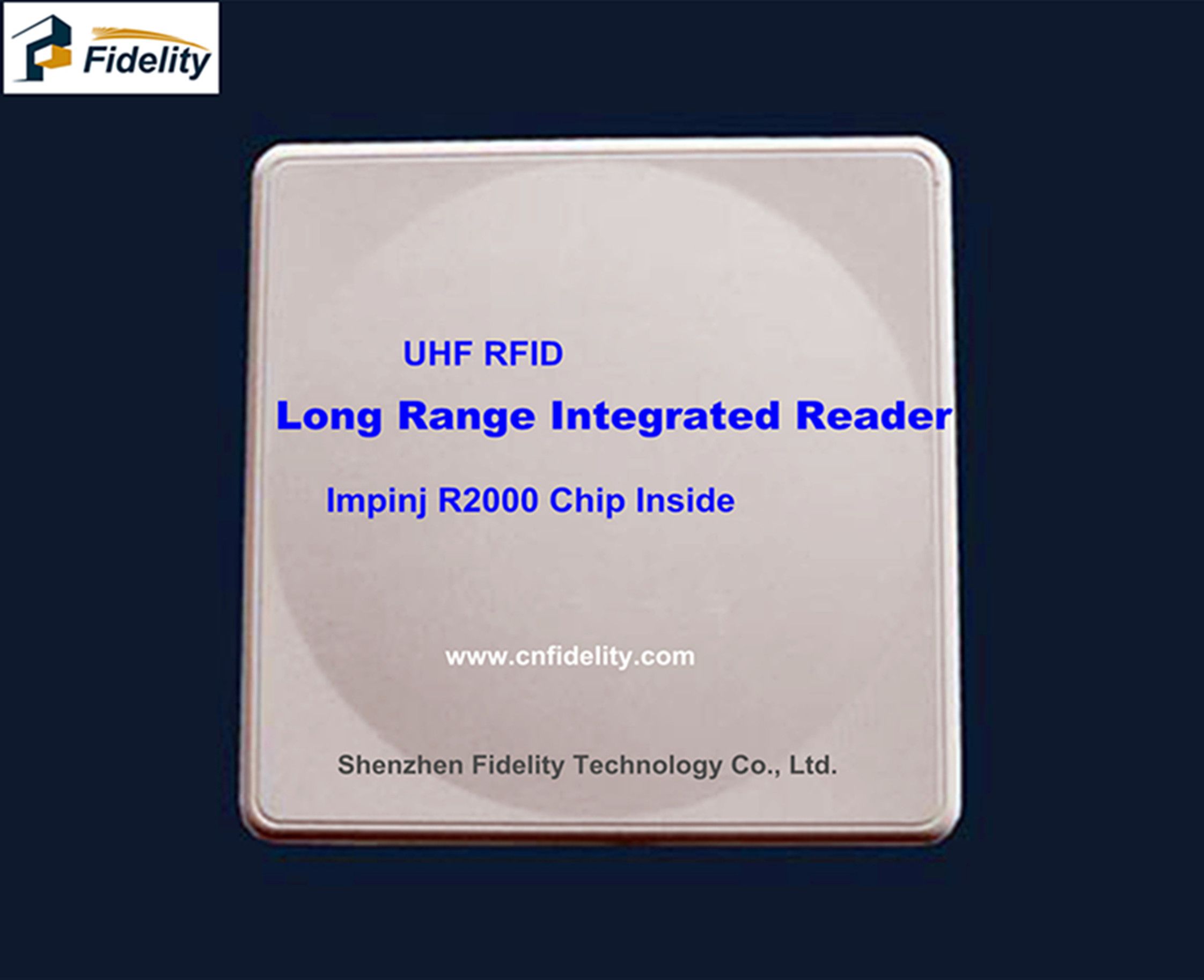

High Quality Low Price Long Range UHF RFID Integrated Reader

Name: High Quality Low Price Long Range UHF RFID Integrated Reader
Brand: all-electronics-online.com
SKU: 793816265
Availability: InStock
Rating: 5 (25 reviews)

Price:	US $ 499/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

High Quality Low Price Long Range UHF RFID Integrated Reader

Features:

Military rank quality, supply unprecedented performance in RFID industry.

Ultrastrong multiple tags identification performance.

Super high sensitivity.

Excellent industrial design, highlight metal texture and tension.

High reliability design, high strength integration cast aluminium frame, solid and durable industrial platform.

Ultra-low power consumption design, decreased energy consumption greatly.

Interior software passed repeatedly optimization, supply fastest running productivity and the most simple development port.

Reinforced type multiple defending circuit, supply all-wave defending.

Specification:


Size	420MM x 420MM
Weight	6.5KG
Body material	pressure casting aluminium frame, engineering plastic antenna panel board

Working Temp.	- 20 °C - + 55 °C
Storage Temp.	- 20 °C - + 85 °C
Working Humidity	< 95% ( + 25 °C)

Air interface protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Working frequency	860Mhz - 960Mhz
Working area supporting	US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China Japan Korea Malaysia Taiwan
RF output port	4 road N type connector/integrated antenna 12DBI
passageway interval height
Output power	30dBm
Reading distance	> 15M
Multiple tags identifying performance	> 500pcs
tags identifying speed	> 500 pcs/second
Tag RSSI	support
Antenna connection defending	support

Working Mode	One machine/intensive
Communication interface	Serial: RS-232 Console (DB9) Wiegand 26
I/O port	4 road configurable IO
Overall unit Max. power consumption	< 7W (RF output 30dbm)
Radiating mode	Air cooling

Prod Model:	FDY-8160M
Size:	420*420mm
Working Frequency:	860~960MHz
Protocol:	EPC Global UHF Class 1 Gen 2 / ISO 18000-6c
Weight:	6.5kg
Multiple Tags Identifying Performance:	>500PCS
Tags Identifying Speed:	>500PCS/Second
Type:	UHF Card Reader
Card Type:	UHF Card Tag

Shenzhen Fidelity Technology Co., Ltd. is a high-tech corporation, which specialise in researching and developing of RFID reader and tags. As the leading supplier of RFID euipments in China, we commit ourselves to supply our customers for products with reliable reading range, excellent performance and good prices. Fidelity Co. Has its independent RFID technology and splendid passionate team----outstanding professional experienced engineers, and aspiring sales. Our production line covers 860~960MHz integrated readers, HF&UHF RFID handheld reader, UHF multi-channel readers, 2.45G readers, antennas, electronic tags and RFID applying system.

At present, Fidelity series RFID readers has very full-blown application in intelligent vehicle management field. Many vehicle management projects of famous residential area, army, dock&port, large oil&chemical industry, and iron group all use our products. Besides, we are expanding our products spread such fields: Personnel alleyway, garment management, tabacco logistics, inventory management, library management, production management, finance escort in transportation, asset management, etc. And we also have trial projects in these fields now.

Fidelity Technology is based in shenzhen, China. Our sales network has covered all over the world: North America, North Europe, Middle East, Africa, Southeast Asia, and East Asia. Fidelity people will work hard all the time to satisfy and benefit our customers.
