High Quality Low Voltage DC Auto 10A 250V Thermal Fuse Product Description
Fuse Application:
A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
Fuse Features:

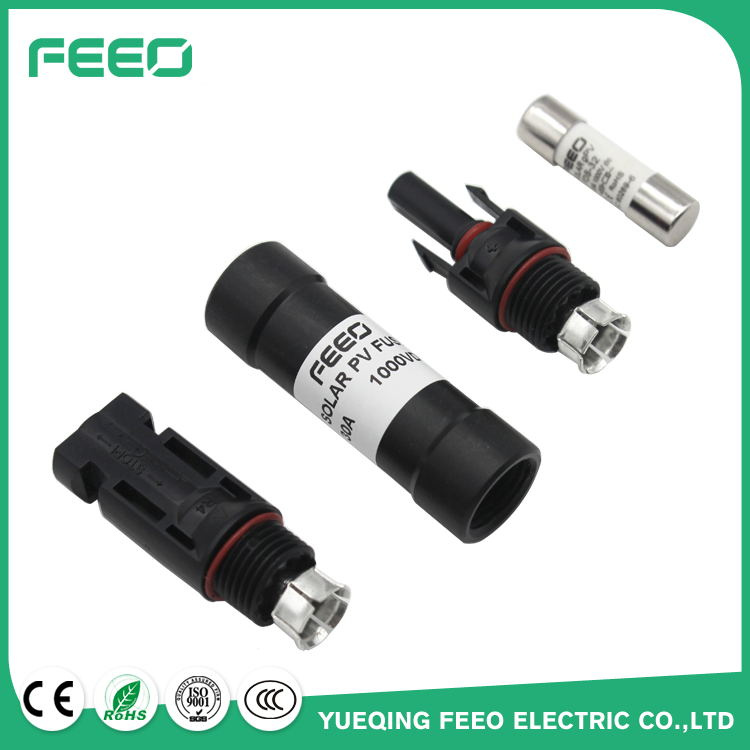

1. Solar PV Fuse Holder, DC 1000V,up to 30A fuse.
2. IP67,10*38mm Fuse Copper

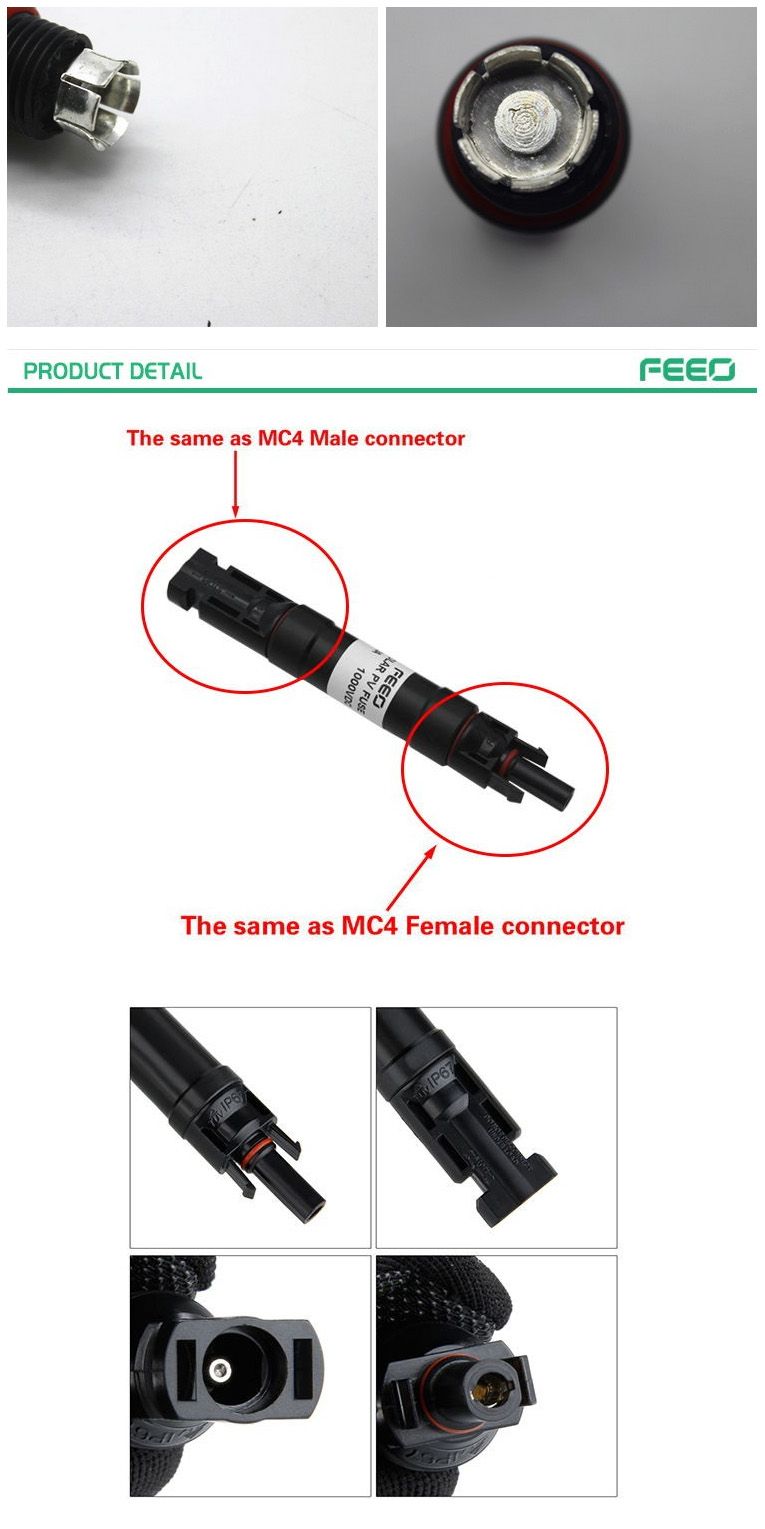

3. Suitable connector is MC4 Connector
Fuse Parameters:

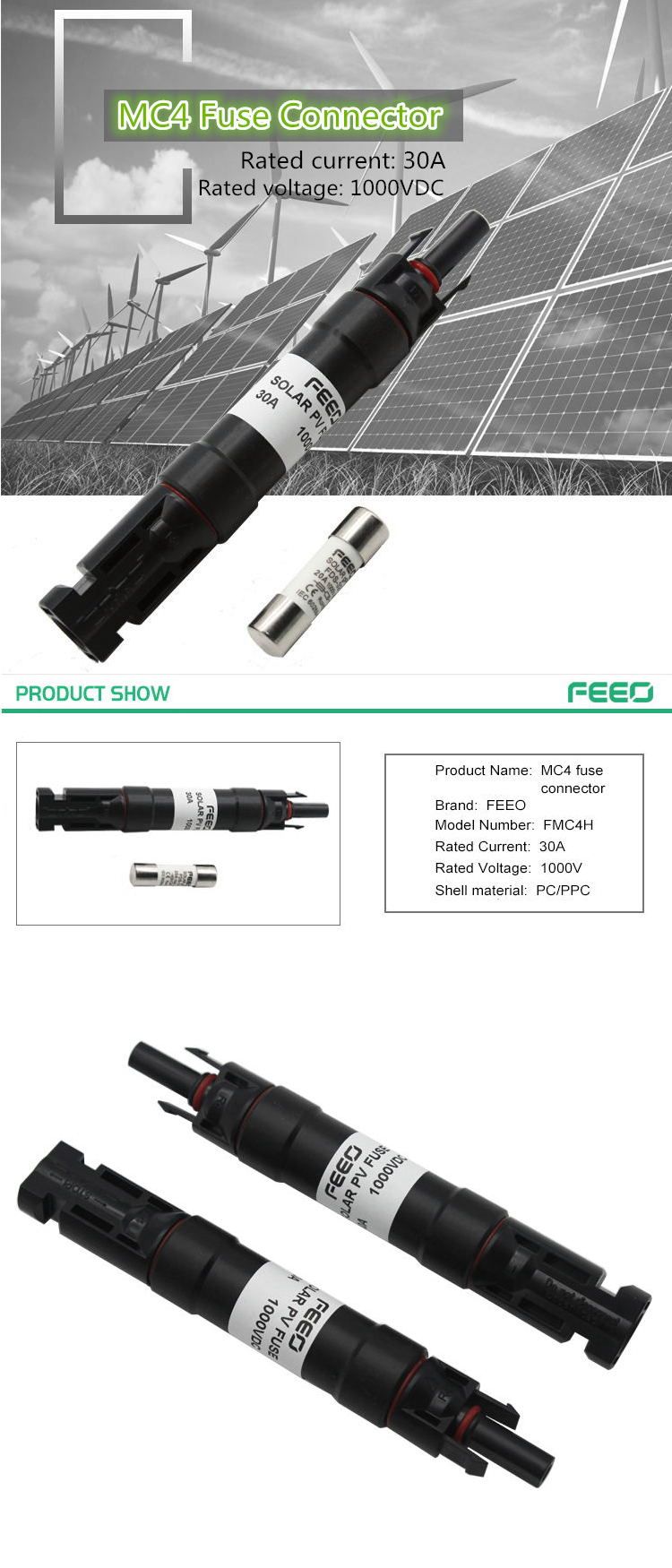

| Item | MC4 connector fuse |
| Insulation Material | PPO |
| Contact Material | Copper,Ag plated |
| Rated current | 30A(According to the FUSE) |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50Hz,1min) |
| Overvoltage category/Pollution degree | CAT3/2 |
| Contact resistance of plug connectors | 1mΩ |
| Degree of protection | IP67 |
| Flame class | UL94-V0 |
| Safety class | 2 |
| Insertion force/Withdrawal force | ≤50N/≥50N |
| Temperature Range | -40ºC~+125ºC |
| Connecting System | Crimp connection |

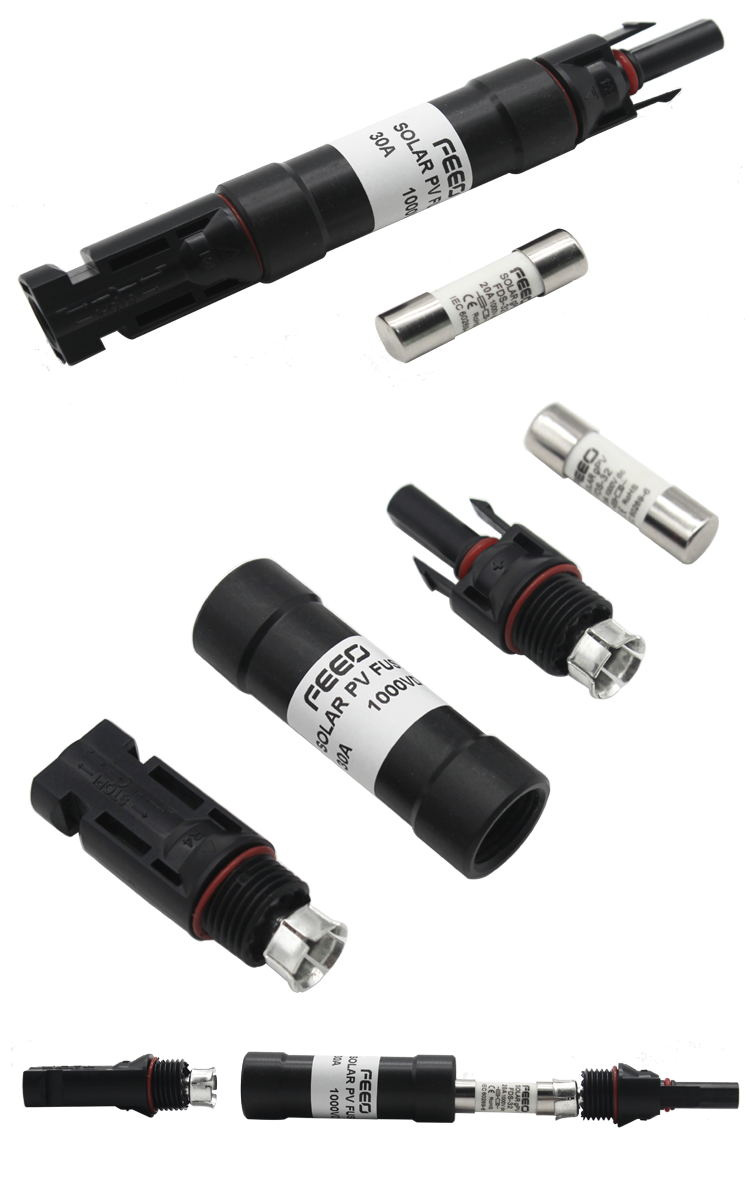

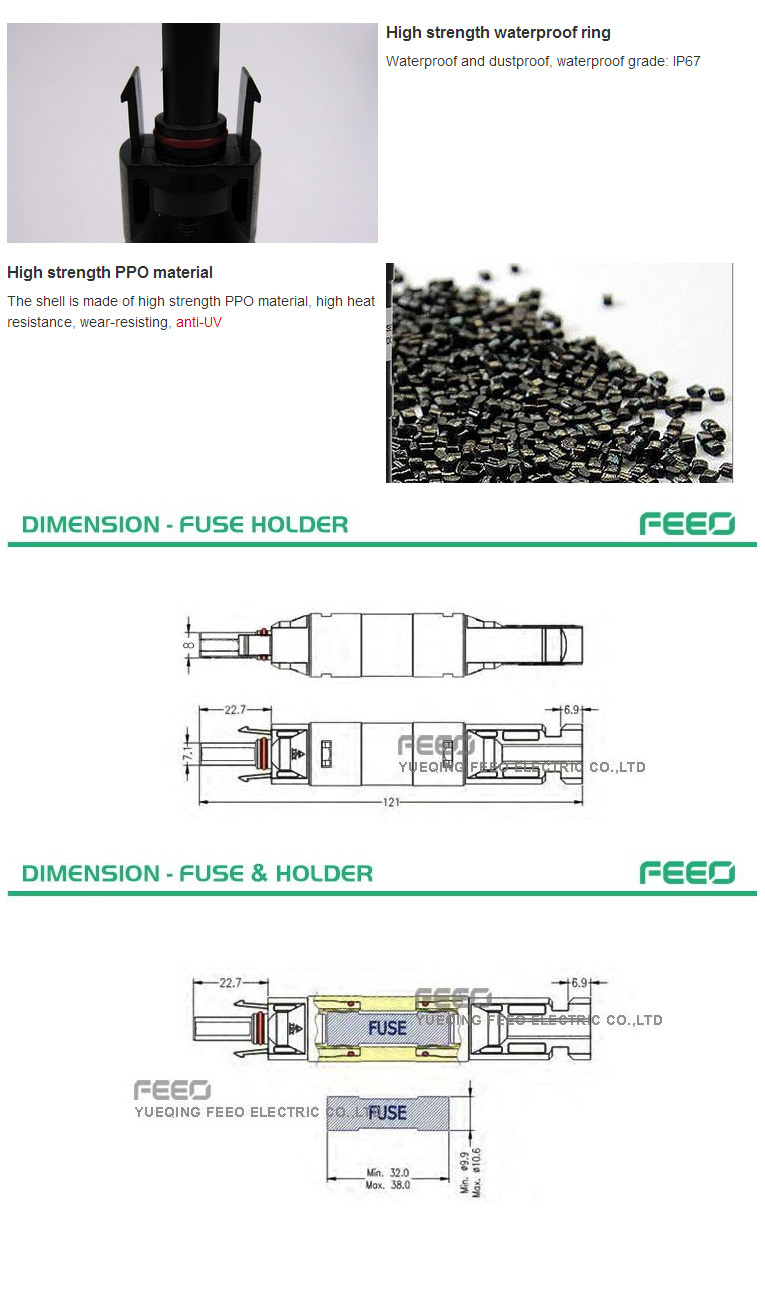

Detailed Images
Packaging & Shipping
Fuse Package:Standard export carton packingFuse Delivery Time:3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.Fuse Shipping:1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!Company InformationYUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your MC4 fuse when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Can I get a sample before the order because I really don't how is your MC4 fuse quality?
A:Of course! We also think sample order is the best way to build the trust.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q:I need your price list of all your products, do you have a price list?
A:We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
