Prod Model: |
MGB Series |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity: |
4.5ka,6ka |
Type Of Trip: |
Thermal/Magnetic Relase |
Rated Current In: |
0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
Number Of Poles: |
1p,1p+N,2p,3p+N and 4p |
Type Of Terminal: |
Pin Type |
Degree Of Protection: |
IP20 |
Width: |
17.8mm Per Pole |
Breaking Capacity: |
Low Voltage Circuit Breakers |
Operation: |
Manual Type |
Speed: |
High-Speed Circuit Breaker |
Arc-extinguishing Medium: |
Air |
Structure: |
MCB |
Certification: |
CB |
Installation: |
Fixed, Mounting on 35mm DIN Rail |
Poles Number: |
1p.2p.3p.4p |

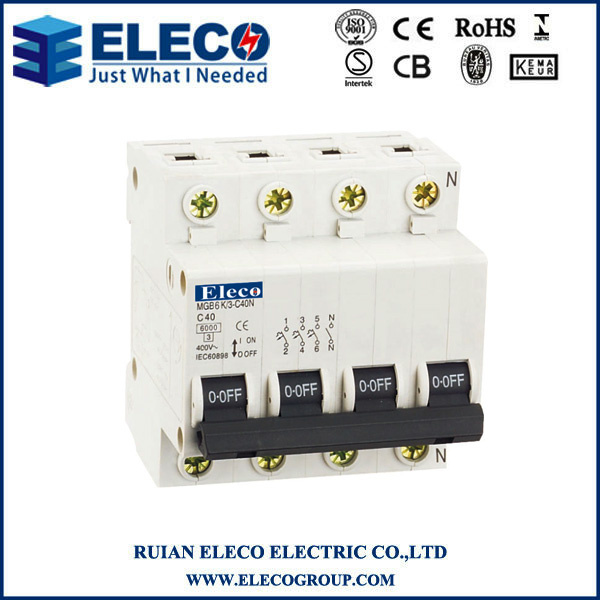

Product Description
The breaker is characterized by compact design,lightweight, elegant appearance, high breaking capacity,swift releasing long service life.
Application
Standard | Confirming to IEC60898,IEC60947-2 |
Protection | Against overload and short circuit |
Rated Current in | 0.5,1,2,3,4,6,10,13,16,20,25,32,40,50,63A |
Number of Poles | 1p,1p+N,2p,3p+N and 4p |
Type of Terminal | Pin Type |
Degree of Protection | IP20 |
Width | 17.8mm Per Pole |
Breaking Capacity | 4.5KA, 6KA |
Rated Voltage | 1pole 230/400V AC 50/60Hz 2,3,4pole 400V AC 50/60Hz Rated insulation voltage Ui:500V Rated impulse withstand voltage Uimp: 6000V |
Type of trip | Thermal/magnetic release |
Installation | Mounting on 35mm DIN rail |
About us
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
ELECO Electric is one of the most specialized manufacturers and exports for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Citcuit Breaker(MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO), Switch- disconnector, Distribution Box, Moulded case circuit breaker(MCCB), air circuit breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K. W. H meter etc. The company takes the reputation as one of the largest manufacturer of electromagnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned intermational corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
