High Quality Motor Protector / Motor Protection (HHD2D-1G~5G)

Name: High Quality Motor Protector / Motor Protection (HHD2D-1G~5G)
Brand: all-electronics-online.com
SKU: 696559265
Availability: InStock
Rating: 4.8 (96 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	(HHD2D-1G~5G)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation:	Device Type and 35mm Guide Rail
Function:	Phase Failure, Overloading etc
Certification:	CCC
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Product Description

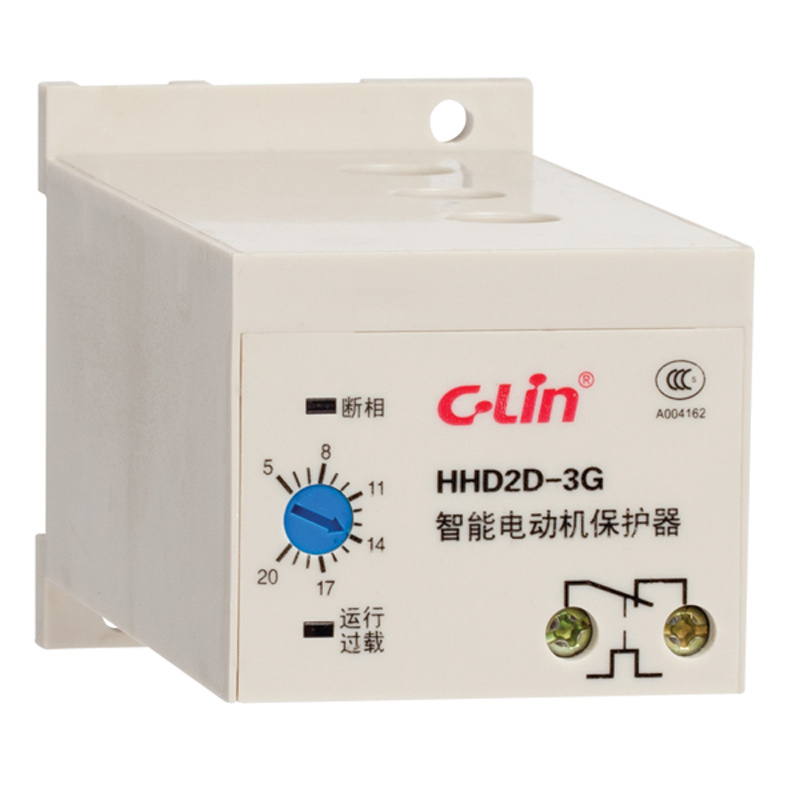

Motor Protector/Intelligent Motor Protector

HHD Series motor protector can be used in the circuit of alternating current 50Hz, rated working current 380V.
Motor control circuit can be formed by combining motor protectors with switching apparatus like AC contactors. When the abnormal working states(such as phase failure, overloading, three-phase unbalance, overvoltage, undervoltage, short circuit etc. ) emerge in the main circuit of motors, motors can be protected quickly and reliably by breaking switch and disconnecting three-phase power.
HHD Series motor protectors conform to GB14048.4 standard and got CCC approval.

Product name	Motor protector/Intelligent Motor Protector
Model number	HHD2D-1G~5G
Current range	HHD2D-1G: 1-4A
	HHD2D-2G: 2.5-10A
	HHD2D-3G: 5-20A
	HHD2D-4G: 10-40A
	HHD2D-5G: 25-100A
Protection function	phase failure, overloading, three-phase unbalance
Setting mode	static setting
Display mode	working state is indicated by LED
Output contact	NC contact
Control circuit working voltage	AC220V; AC380V
Contact capacity	1A AC380V
Outline dimension	5364104mm
Mounting mode	device type; 35mm guide rail
