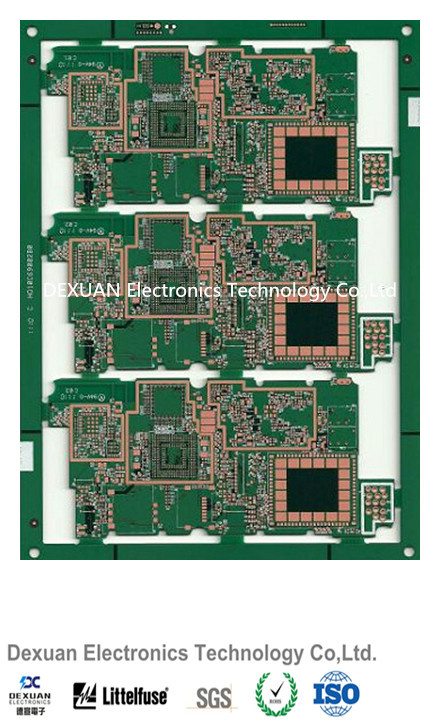

High Quality Multilayer Printed Circuit Board PCB for Electronics with Immersion Gold

Name: High Quality Multilayer Printed Circuit Board PCB for Electronics with Immersion Gold
Brand: all-electronics-online.com
SKU: 837973095
Availability: InStock
Rating: 4.3 (139 reviews)

Price:	US $ 0.1-5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Production Capability

PROJECT	PROCESS CAPABILITY
CCD Exposure	2~16L
Material Type	HR-4/FR-1/CEM-1,High TG,Halogen-free
Max Panel Dimension	546mm*622mm
Outline Tolerance	±0.1mm
Board Thickness	0.40~3.20mm
Board Thickness Tolerance	±8%
Mininum Line Width	0.075mm
Mininum Track Width	0.075mm
External Cu. Thickness	35um~140um
Internal Cn. Thickness	17um~140um
Driling Bit Size CNC	0.20mm~6.0mm
Finished Hole Demension CNC	0.10mm~5.95mm
Hole Tolerance CNC	±0.075mm/±0.05mm
Hole Positon Tolerance CNC	±0.05mm
Board Thickness:Hole Demension	8:1
Solder Mask	LPL Solder
Mininum Solder Mask Bridge	0.0635mm
Impedance Control Tolerance	±10%

Our main products range form copper or aluminum base substrates to laminates with all kinds of surface treatment, from single-sided single-layer to multi-sided multi-layers. Whatever you required, we'll achieve your satisfication. We can offer you the best PCB and PCB assembly services at low-to-large volume, verified by ISO09001,including FR-4,flexible,rigid-flex,carbon ink, aluminum types. We are capable of controlled impedance, heavy copper, HDI, blind & buried vias and small chips down to 0201 and 0.25 mm BGA.

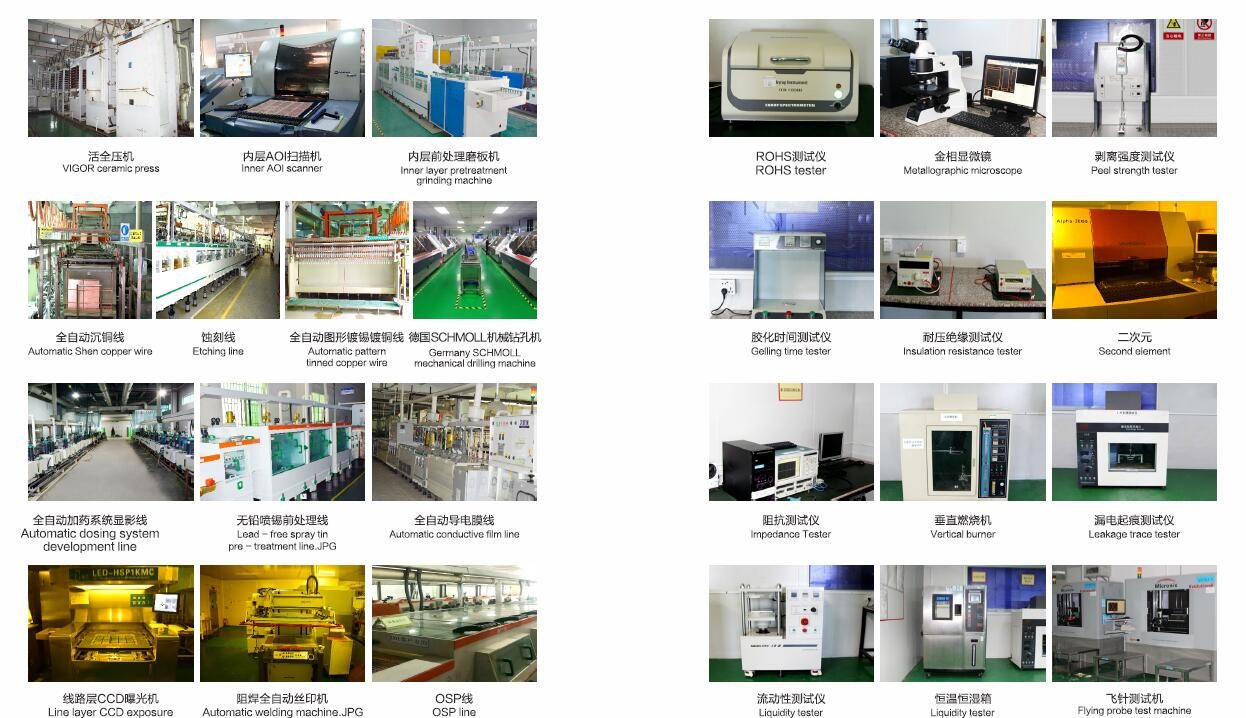

Our workshop is equipped with advanced high-quality machines for products widely used in computer science, artificial intelligence, robotics, medical, biological, automobile, communication, solar energy and consumer electronics.. We also have a full-time first-class customer service team to meet every customers' needs.

Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Dexuan Electronics Technology Co., Ltd., established in February 2013, is a professional enterprise on manufacturing double-sided, multi-layers printed circuit boards. The company, with a plant area of 40, 000 square meters and more than 700 employees, can produce 60, 000 square meters of boards per month. Our workshop is equipped with advanced high-quality machines for products widely used in computer science, artificial intelligence, robotics, medical, biological, automobile, communication, solar energy and consumer electronics...We also have a full-time first-class customer service team to meet every customers' needs.

Our main products range form cooper or aluminum base substrates to laminates with all kinds of surface treatment, from single-sided single-layer to multi-sided multi-layers. Whatever you required, we'll achieve your satisfication. We can offer you the best PCB and PCB assembly services at low-to-large volume, verified by ISO09001, including FR-4, flexible, rigid-flex, carbon ink, aluminum types. We are capable of controlled impedance, heavy copper, HDI, blind & buried vias and small chips down to 0201 and 0.25 mm BGA.

We crafted every product carefully and made it a boutique. We take every order seriously and make sure a rapid delivery. We deal with every customer's need diligently and fulfill your specific requirement. We treat every customer honestly and provide satisfying service.
