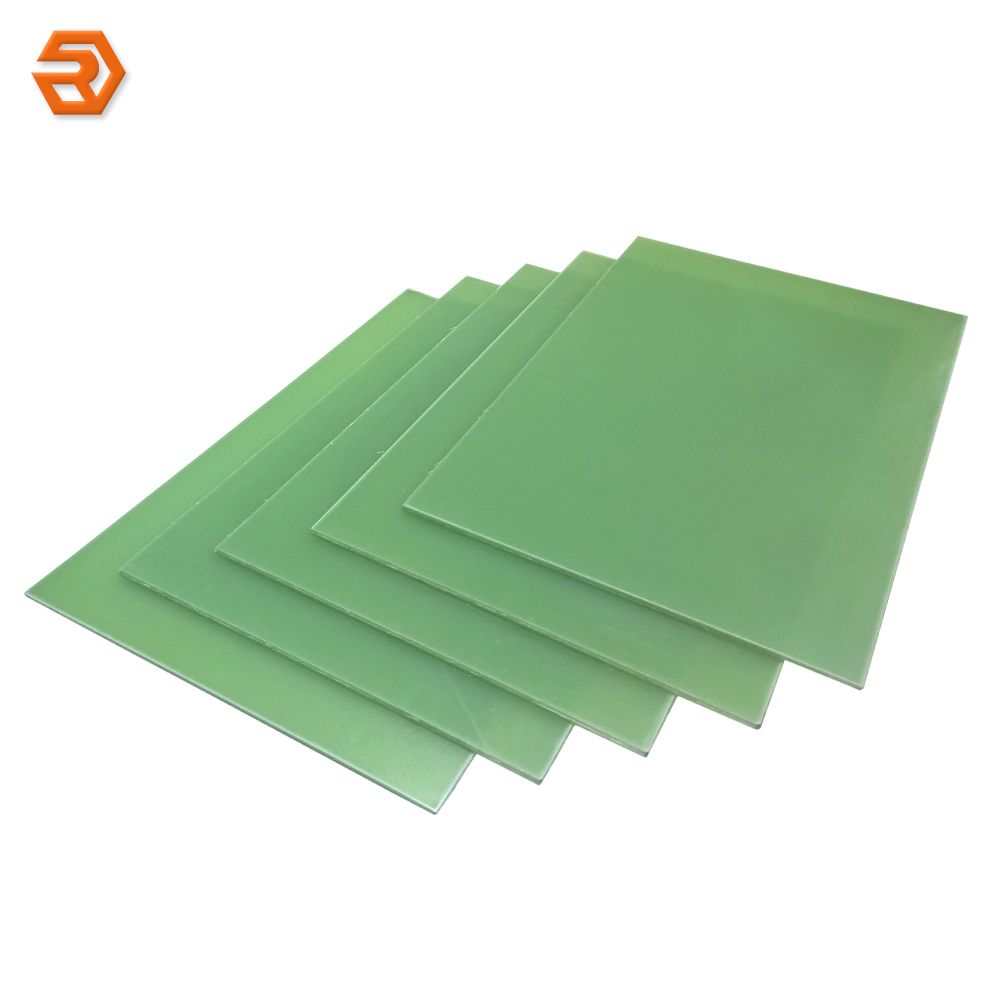

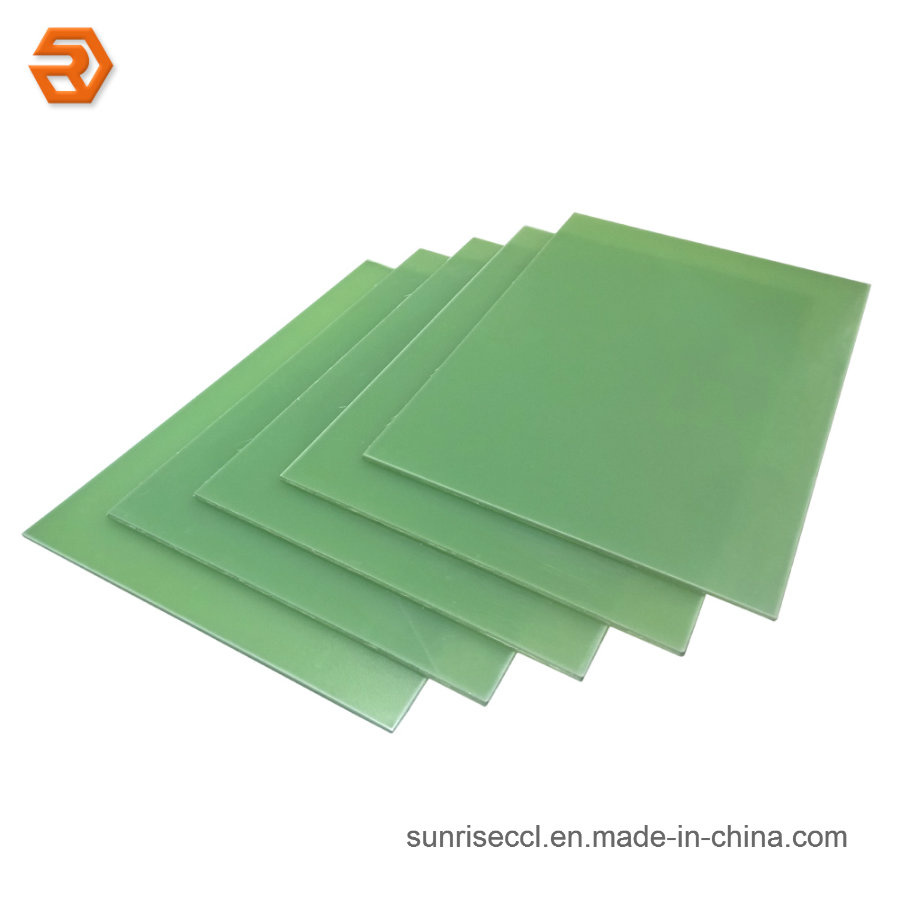

High Quality Natural Color Epoxy Resin Fiberglass G10/Fr4 Sheet
| Price: |
US $ 4.5-716 |
| Min Order: |
50016 |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Information

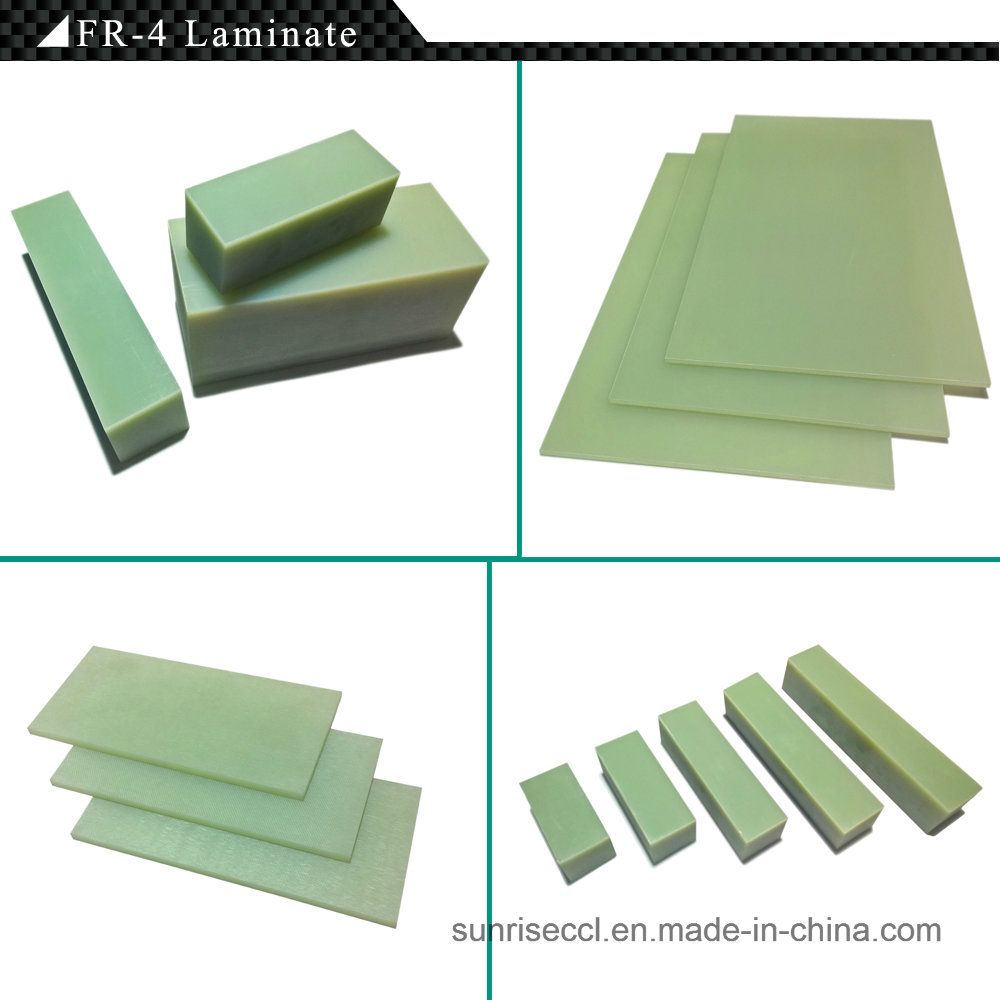

FR4 Epoxy Fiberglass Laminate has high mechanical properties and dielectric properties, good heat resistance and mechanical processing, and low water absorption,not easy to deform. Flame-retardant grades of up to UL94V0 level.
| SHENGRUI GRADE | E3502 |
| IEC893/EN60893 GRADE | EPGC202 |
| ANSI(NEMA) GRADE NEMA LI-1 | FR-4 |
| DIN7735 | Hgw2372.1 |
| General Information | Test Method | Unit | Typical Values |
Physical
Properties | Color | - | - | Greenish White/Yellow |
| Specific Gravity | - | G/Cm3 | 1.95-2.0 |
| Water Absorption | E-24/50+D-24/23 | % | 0.07-0.16 |
Electrical
Properties | Electric Strength⊥ | C-96/20/65(In90ºC Oil) | Kv/Mm | ≥14 |
| Electric Strength// | C-0.5/90(In90ºC Oil) | KV | 40 |
| Volume Resistivity | C-96/20/65 | Ω | 5×1011-1013 |
| C-96/20/65 +C-96/40/90 | 5×1010-1012 |
| Surface Resistivity | C-96/20/65 | Ω | 5×1010-1012 |
| C-96/20/65 +C-96/40/90 | 5×1010-1011 |
| Dielectric Strength | C-96/20/65 | Ω.Cm | 5×1011-1012 |
| C-96/20/65 +D-2/100 | 5×108-109 |
| Dielectric Constant 1MHZ | C-96-20-65 | --- | 4.0-5.0 |
| C-96/20/65 +D-48/50 | 4.5-5.5 |
| Dissipation Factor 1MHZ | C-96/20/65 | --- | 0.03-0.04 |
| C-96/20/65 +D-48/50 | 0.04-0.05 |
| Arc Resistance(HV) | C-96/20/65 | Sec | 130-140 |
| Mechanical Properties | Flexural Strength | A | Kg/Mm2 | 40-50 |
| Impact Strength// | A | KJ/M2 | 33 |
| Rockwell Hardness | A | M | 110 |
| Bond Strength// | A | N | 8000 |
Compressive
Strength | ⊥ | A | Kg/Mm2 | 29-34 |
| // | | 19-24 |
Flame
Resistance
Properties | Ul94 Subjects | A | --- | VO |
| Heat Resistance (120min) | A | ºC | 220(OK) |
| Temperature Index | --- | 160 |
| Smoke Density90" | ASTM-E662 | - | 1 |
| Smoke Density4' | 3 |
| Toxicant Content | - | Low |
| Others | Acetone Resistance | Boiled | Min | 30(OK) |
| Punch Ability(≤3mm) | A | ºC | Good |
| Nominal | | Nominal | | Nominal | |
| thickness(mm) | Tolerance | thickness(mm) | Tolerance | thickness(mm) | Tolerance |
| 0.1 | ±0.018 | 1.2 | ±0.13 | 10 | ±0.72 |
| 0.15 | ±0.025 | 1.5 | ±0.13 | 12 | ±0.82 |
| 0.2 | ±0.038 | 1.6 | ±0.15 | 14 | ±0.94 |
| 0.25 | ±0.038 | 2 | ±0.18 | 16 | ±1.02 |
| 0.3 | ±0.050 | 2.5 | ±0.20 | 20 | ±1.12 |
| 0.4 | ±0.050 | 3 | ±0.28 | 25 | ±1.30 |
| 0.5 | ±0.064 | 4 | ±0.33 | 30 | ±1.50 |
| 0.6 | ±0.064 | 5 | ±0.37 | 35 | ±1.70 |
| 0.8 | ±0.100 | 6 | ±0.45 | 40 | ±1.95 |
| 1 | ±0.100 | 8 | ±0.52 | 45 | ±2.20 |
| Remarks | 1: Nominal thickness not listed in the table, the tolerance should be as same as the next greater thickness. |
2: More than 90% area of the thickness of tolerance must be within the thickness
tolerance. |
Application

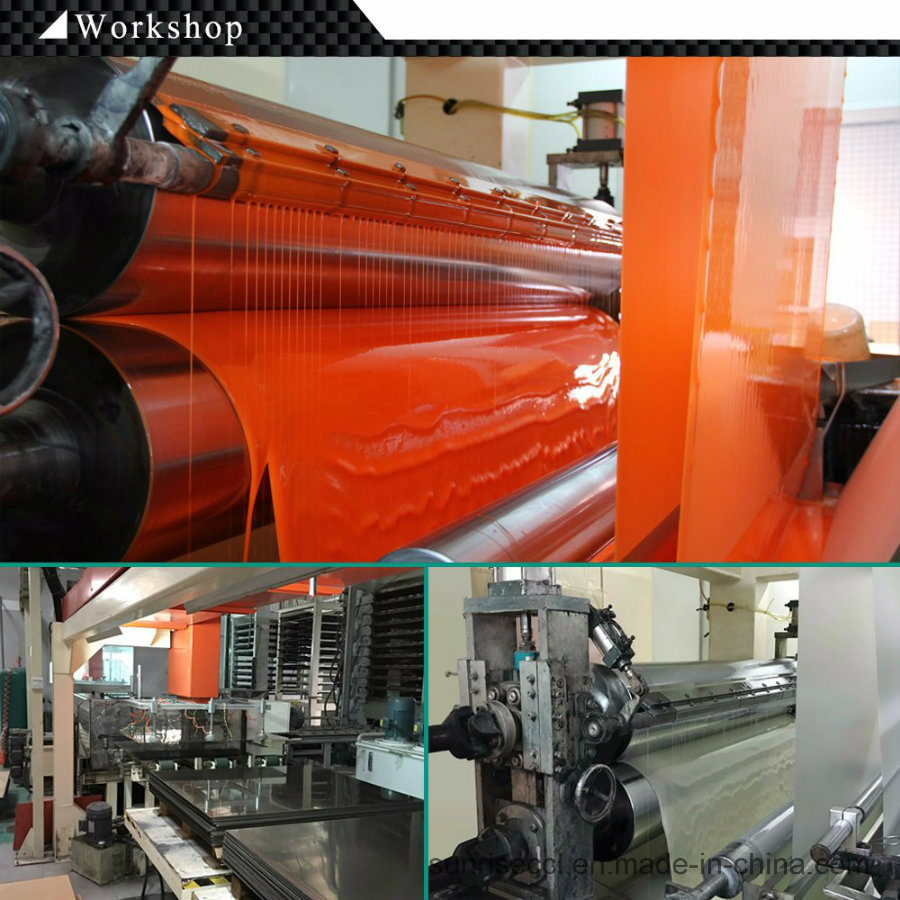

The FR4 sheet is widely used high-end insulation parts processing, FPC (flexible printed circuit-board) reinforcement sheet, planetary wheel, transformer insulation baffle, high voltage switch, precision test fixture, carbon film printing, electronic insulation parts, various water sports equipment and blade-tool handle materials.Company InformationOur company was founded in 2012,located in Guangzhou city of China,and we specialize in producing FR-4 laminates, G10 laminates,fiberglass plate/board/cloth/fabric/sheet,carbon fiber plate/board/cloth/fabric/sheet,fiberglass processing products,carbon fiber processing products.We can develop and produce various insulation products according to customers' requirement.
Contact Us
FAQ1.Q:Are you factory?
A:Yes,We are factory.
2.Q:How about the delivery time?
A:Depends on order quantity.
3.Q:Can I get free sample for check?
A:Sample can be provided for free if we can burden the express charge.
4.Q:Can you give me a discount price?
A:More quantity,more discount you can get.
| Prod Model: |
SR-GFA |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
20KV~100KV |
| Color: |
Dark Green/Yellow/Black |
| Brand: |
Shengrui |
Guangzhou Shengrui Insulation Materials Co., Ltd was founded in 2012, we specialize in producing FR-4 laminates, laminates, epoxy fiberglass sheet/plate/board/cloth/fabric, epoxy fiberglass processing products, copper clad laminates, carbon fiber sheet/plate/board/cloth/fabric, carbon fiber processing products. We can develop and produce various high standards and personalized products according to customers' requirement.
Our company has always been adhering to the 'quality first, the supremacy of credibility, integrity and truth-remaining, win-win cooperation' business philosophy, and unifying scientific research, developing, producing all kinds of insulation material products. Our company have strong technical strength. We have a experienced talents team in research and development, our team has strong ability of digestion and absorption at domestic and abroad advanced technology. So we make the products with advanced level.
Our company's products mainly used in high-end insulation parts processing, FPC (flexible printed circuit-board) reinforcement sheet, the battery cover, planetary wheel, transformer insulation baffle, high voltage switch, precision test fixture, carbon film printing, electronic insulation parts, various water sports equipment and blade-tool handle materials, it can also be used in damp environment condition in the transformer-oil, the carbon fiber material has been applied in aviation, automobile decoration, precision mechanical parts, composite materials, and many other fields.
Our company's next development direction: Customer as the center, market orientation and industrial upgrading as the direction of development, developing new products with diversified, high added value and high performance.
Guangzhou Shengrui Insulation Materials Co., Ltd is always ready for supplying the best solution for your various applications.
