High Quality NF02 Ceramic Fuse with UL for LED

Name: High Quality NF02 Ceramic Fuse with UL for LED
Brand: all-electronics-online.com
SKU: 760001945
Availability: InStock
Rating: 4.5 (126 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Fuse
1. High heat exchanged ceramic core
2. High stability electric conduction film
3. UL & ISO9001

Specifications:

Features of power fuse:
1. Compact design, small and lightweight
2. Contribute to high Q and self-resonant frequencies
3. Coating: Epoxy resin ensures humidity resistance for long life
4. Taping type is convenient for automatic equipment
5. Current rating:1-5A

Advantage of our company:
1. Competitive price
2. High stability and high quality
3. Prompt shipment
4.quick response to the needs of our customers
5.professional & experienced management team
6.wide range products

Selling point:
1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand

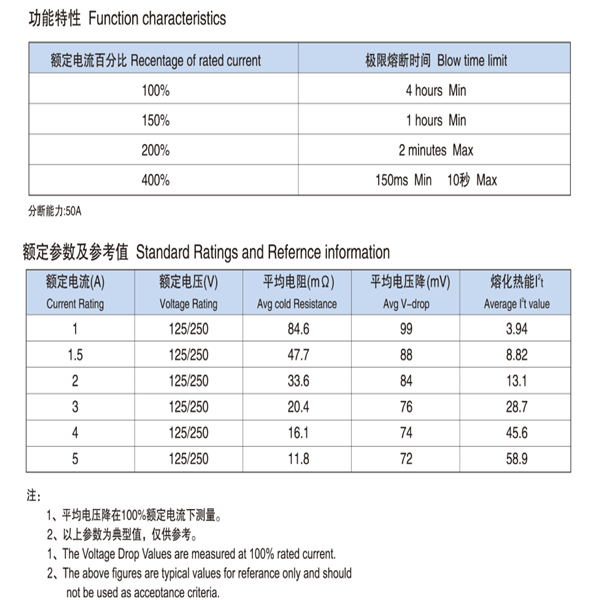

Function characteristics:

recentage of rated current	blow time limit
100%	4 hours min
150%	1 hours min
200%	2 minutes max
400%	150ms min 10s max

Our company:

Don't hesitate to contact us if you have any interest in our products, welcome to provide us your specification, we will submit the best quotation shortly.
It's our pleasure to be on service of you.We look forward to receiving your reply.Thanks.

Prod Model:	NF02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	NF02 Fuse with UL for LED
Quality Certification:	ISO9001: 2008
Environmental Certification:	ISO14000
Certification:	UL
Specifications:	NF02 125/250V
Breaking Capacity:	High
Type:	Temperature Fuse
Usaga:	Electronic

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
