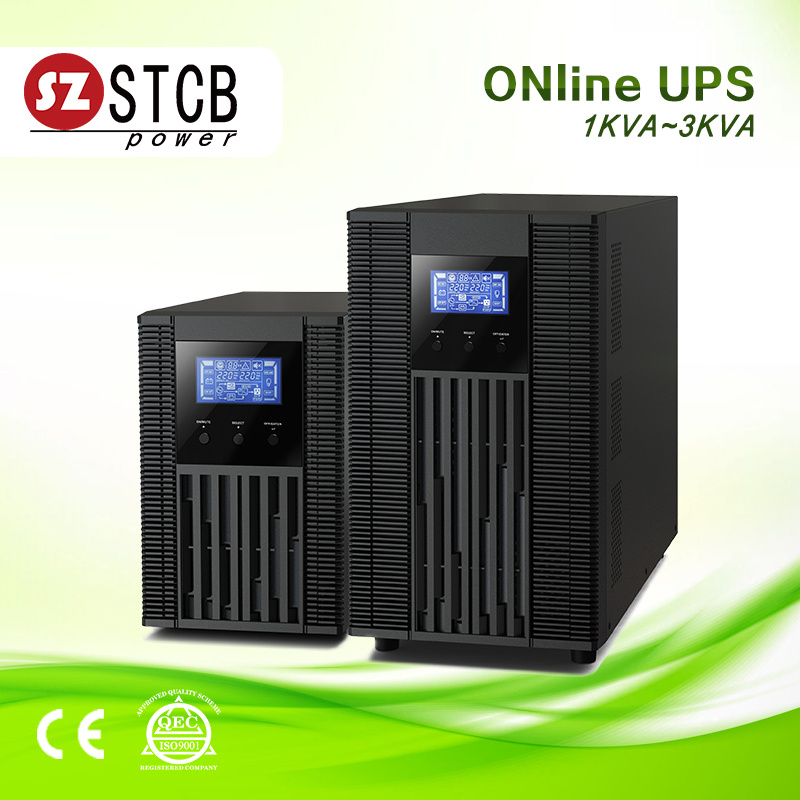

High quality Online UPS 1kVA 2kVA 3kVA with Competitive Price
Main Features:
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Input power factor correction
4. Output power factor 0.8
5. Wide input voltage (110 v- 300 v)
6. Converter mode available
7. ECO mode for energy saving
8. Generator compatible
9. Charger capacity expansion to 6A for long-run models
10. Smart SNMP works well with either USB or RS-232 together
11. Comprehensive display allows easy monitoring and access of UPS status
Specification:
| MODEL | GH11-1K (L) | GH11-2K (L) | GH11-3K (L) |
| CAPACITY | 1000 VA / 800 W | 2000 VA / 1600 W | 3000 VA / 2400 W |
| INPUT |
| Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Input Voltage Range | 55-145 VAC or 110-300 VAC |
| Frequency Range | 40Hz ~ 70 Hz |
| Power Factor | ≥ 0.99 @ Nominal Voltage (100% load) |
| OUTPUT |
| Voltage Regulation | 110v/220v ± 1% |
| Frequency Range | 50 Hz or 60Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | ≤ 3 % THD (Linear Load)
≤ 6 % THD (Non-linear Load) |
| Transfer Time | Zero |
| Waveform | Pure Sinewave |
| EFFICIENCY |
| To AC Mode | 88% | 89% | 90% |
| To Battery Mode | 83% | 87% | 88% |
| BATTERY |
Standard
Model | Battery Type | 12 V /9 AH | 12 V / 9AH | 12 V / 9 AH |
| Numbers | 2 | 4 | 6 |
| Recharge Time | 4 hours recover to 90% capacity |
| Charging Current | 1.0 A |
Long-run
Model | Battery Type | Depending on the capacity of external batteries |
| Numbers | 3 | 6 | 8 |
| Charging Current | 1.0A/2.0A/4.0A/6.0 A |
| PHYSICAL |
Standard
Model | Dimension | 285*145*220mm | 395*145*240mm | 415*190*337mm |
| Net Weight | 9.3kg | 18.6kg | 30kg |
| Long-run Model | Dimension | 282*145* 220mm | 397*145*220mm |
| Net Weight | 4.6kg | 6.8kg | 7.4kg |
* Product specifications are subject to change without further notice
