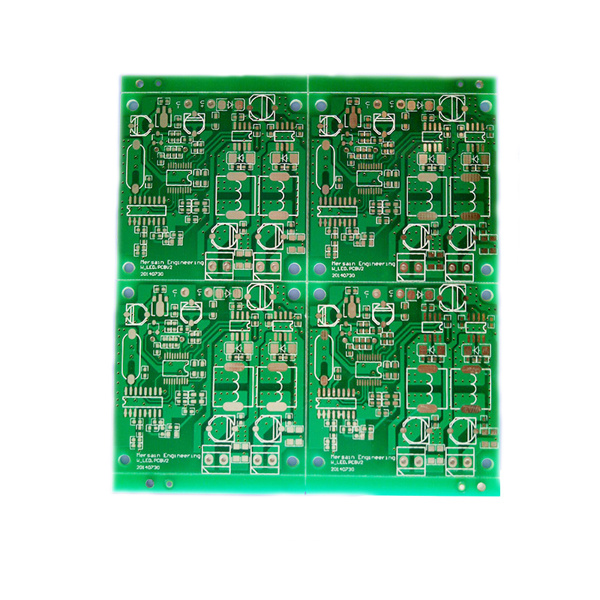

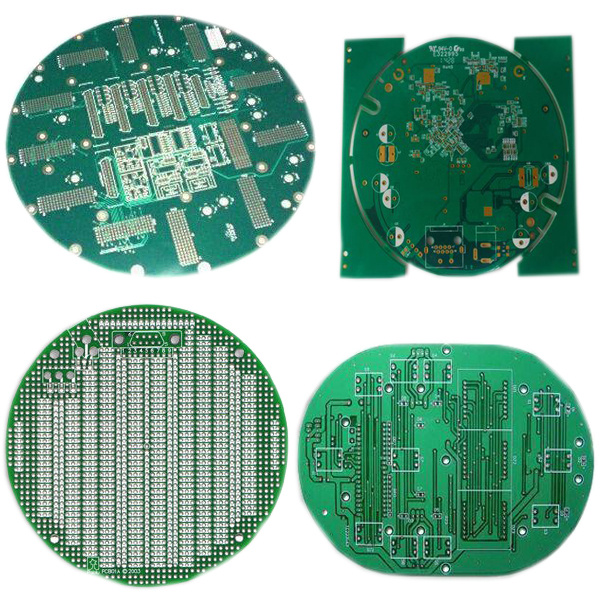

High Quality Printed Circuit Board for Rigid PCB Board
| Price: |
US $ 0.33-0.46piece |
| Min Order: |
1piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
High Quality Printed Circuit Board for Rigid PCB Board Product Description Fastline PCB's aim
Customer Satisfaction is Always Our First Priority!
*Quality Policy
*Top Quality and high efficiency
*Improve continuously
*Achieve customer's satisfaction
*Layers: 1-22
*Base material: FR-4 CEM-1
*Thickness: 0.2-5.0mm
*Solder mask: Green, black, red, yellow, white
*Min. Line width: 0.075mm
*Min. Line space: 0.075mm
*Min. Hole diameter: 0.1mm
*Surface treatment: Immersion gold, OSP. Lead free HASL.
*Blind/buried via holes: OK
*lead time: Seven to ten days (HDI: About 30 days)
We can also make quick pcb. As customers plates copied from the PCB, PCB design, prototype production, production, processing, and other SMT one-stop service.
Single-double sides pcb delivery time: 12-24 hours
4 layer- 8 layer pcb delivery time: 48-96 hoursTechnical Capabilities | Items | Speci. | Remark |
| Max panel size | 32" x 20.5"(800mm x 520mm) | |
| Min trace width/ space (inner layer) | 4mil/4mil(0.1mm/0.1mm) | |
| Min PAD (inner layer) | 5 mil(0.13mm) | hole ring width |
| Min thickness(inner layer) | 4 mil(0.1mm) | without copper |
| Inner copper thickness | 1~4 oz | |
| Outer copper thickness | 0.5~6 oz | |
| Finished board thickness | 0.4-3.2 mm | |
Board thickness tolerance control | ±0.10 mm | ±0.10 mm | 1~4 L |
| ±10% | ±10% | 6~8 L |
| ±10% | ±10% | ≥10 L |
| Inner layer treatment | brown oxidation | |
| Layer count Capability | 1-30 LAYER | |
| alignment between ML | ±2mil | |
| Min drilling | 0.15 mm | |
| Min finished hole | 0.1 mm | |
| Hole precision | ±2 mil(±50 um) | |
| tolerance for Slot | ±3 mil(±75 um) | |
| tolerance for PTH | ±3 mil(±75um) | |
| tolerance for NPTH | ±2mil(±50um) | |
| Max Aspect Ratio for PTH | 8:1 | |
| Hole wall copper thickness | 15-50um | |
| Alignment of outer layers | 4mil/4mil | |
| Min trace width/space for outer layer | 4mil/4mil | |
| Tolerance of Etching | +/-10% | |
| Thickness of solder mask | on trace | 0.4-1.2mil(10-30um) | |
| at trace corner | ≥0.2mil(5um) | |
| On base material | ≤+1.2mil
Finished thickness | |
| Hardness of solder mask | 6H | |
| Alignment of solder mask film | ±2mil(+/-50um) | |
| Min width of solder mask bridge | 4mil(100um) | |
| Max hole with solder plug | 0.5mm | |
| Surface finish | HAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP, Immersion Silver. | |
| Max Nickel thickness for Gold finger | 280u"(7um) | |
| Max gold thickness for Gold finger | 30u"(0.75um) | |
| Nickel thickness in Immersion Gold | 120u"/240u"(3um/6um) | |
| Gold thickness in Immersion Gold | 2u"/6u"(0.05um/0.15um) | |
| Impedance control and its tolerance | 50±10%,75±10%,100±10% 110±10% | |
| Trace Anti-stripped strength | ≥61B/in(≥107g/mm) | |
bow and twist
| 0.75% | |

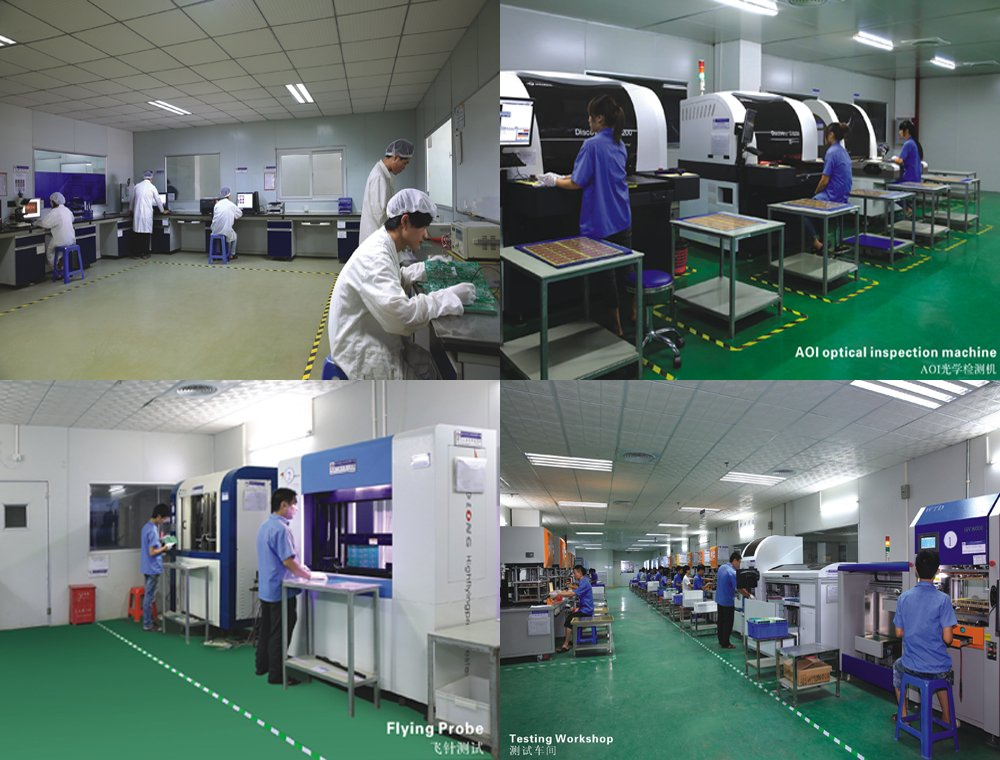

Products Equipment
How to contact usCellphone/ :+8618025363502
| Prod Model: |
Ri 13 |
| Board Material: |
Fr4 |
| Layers: |
1 to 30 Layers |
| Board Thickness: |
1.6mm |
| Copper Thickness: |
1oz |
| Solder Mask: |
Green |
| Silk Screen: |
White |
| Surface Treatment: |
HASL Lead Free |
| Test: |
100% |
| Lead Time: |
6-8 Working Days |
| Min. Line Width: |
0.075mm |
| Structure: |
Double-Sided Rigid PCB |
| Material: |
Phenolic Paper Laminate |
| Production Process: |
Semi-Additive Process |
| Brand: |
Fastline |
| Base Material: |
Fr4 |
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
