High Quality Printed Circuit Board PCB with Cheaper Cost

Prod Model:	S-Rigid pcb board
Board Thickness:	0.2mm to 6.0mm (0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0..)
Surface Finish:	HASL Lead Free, OSP, Immersion Gold, Flash Gold...
Solder Mask Colour:	Red, Green, Black, White, Blue, Yellow
Copper Thickness:	1-5oz
Base Materials:	Fr4, High Tg, Cem3, Rogers, Halogen Free, Aluminum
Min Hole Size:	0.1mm
Hole Copper Thickness:	25um
Max Boards Size:	500 X 1200mm
RoHS:	Yes
Key Words:	PCB, Rigid, Double Side, Multilayer, Single Layer
Structure:	Single-Sided Rigid PCB
Material:	Polyester Glass Fiber Mat Laminate
Production Process:	Subtractive Process
Brand:	Kb

Shenzhen Shared PCB Electronics Co., Ltd is a professional manufacturer of Printed Circuit Board(PCB). Products include Single layer, Double sided, Multilayers of Rigid PCBs. High quality with favorable price.

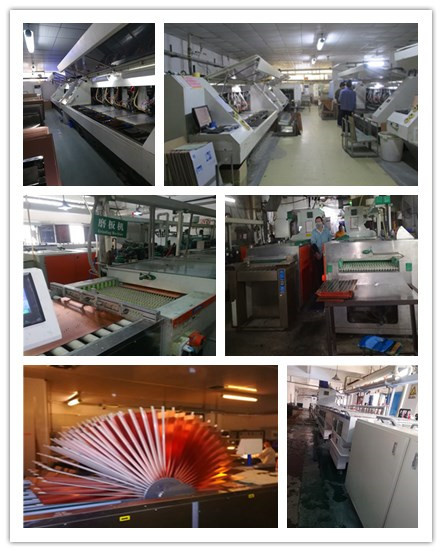

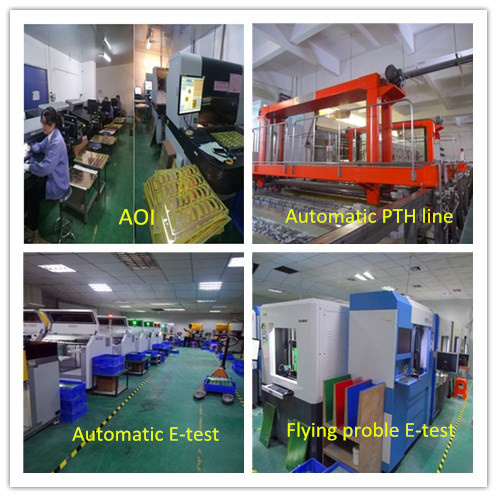

After several years of rapid development, we introduced international advanced conductive polymer film technology, character printing technology, PLC automatic control line, plating line and most of full automatic equipments to ensure reliable quality. We have more than 300 staffs, and through the experienced technical staffs and management personnel, our PCB manufacture capability over 30, 000 square meters per month.

We offer Competitive prices, Efficient production time and Good after-sales service, and stick to the principle of quality first, service first, continuous improvement and innovation to meet the customers.

Welcome to contact us for any inquiries. Thank you!
