High Quality RJ45 UTP CAT6 Keystone Jack

Name: High Quality RJ45 UTP CAT6 Keystone Jack
Brand: all-electronics-online.com
SKU: 646035425
Availability: InStock
Rating: 4.6 (38 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	by air / by sea / by courier
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

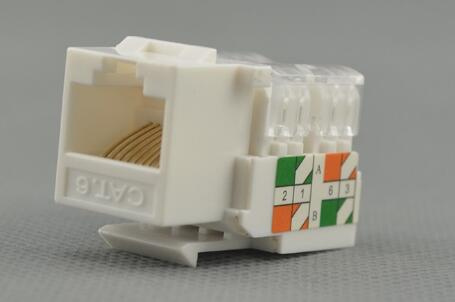

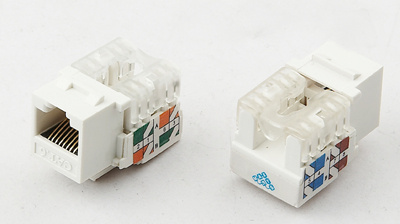

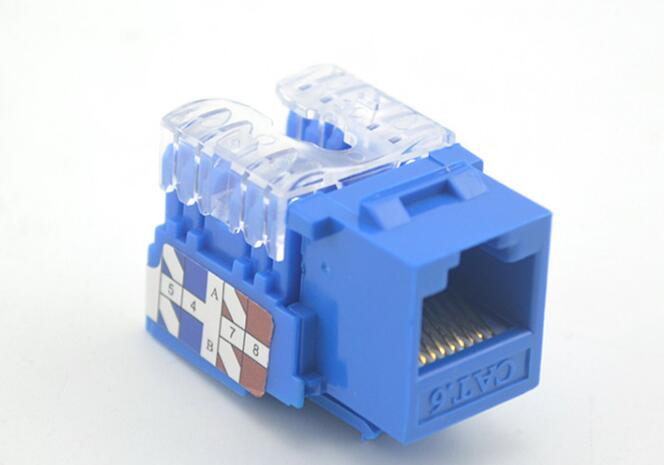

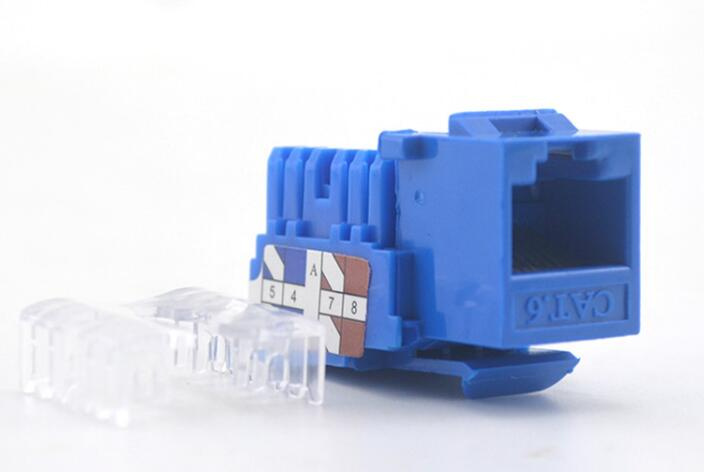

High Quality RJ45 UTP Cat6 Keystone Jack

Meet ISO/IEC 11801, TIA/EIA568B
Own patent products
Used for Wall Plate
Fit for wires AWG22-26
DC omsertopm life 200 cycles
Plug insertion life 750 cycles Min
Dielectric strengh: When applied AC750V or DC 1000V 1 minute between adjacent terminal NO change
Material: Using PC/ABS for cover, PC for module, phosphor bronze for IDC wire post

cat6/cat5e keystone jack cheap price rj45 cat6 wall jack male utp rj45 keystone jack rj45 1.rj45 modular jack with Gold plating

Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 180 Degree
Termination: Krone- 110- DUAL Type
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.

Prod Model:	Cat6 Keystone (M255)
Category:	Cat5e or CAT6
Pass:	Fluke Testing
Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	GS
Condition:	New
