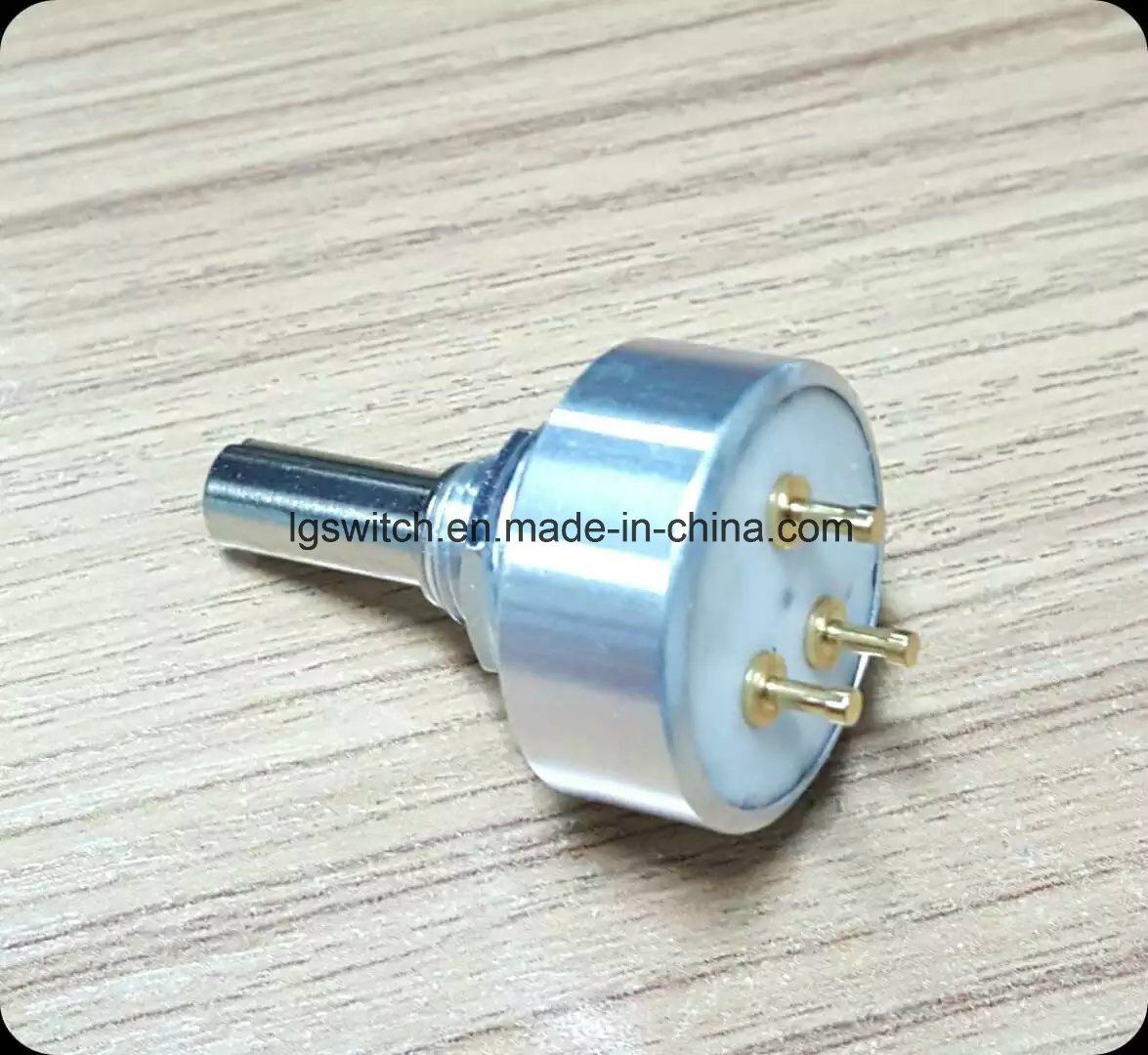

High Quality Rotary Potentiometer Angle Position Sensors

Name: High Quality Rotary Potentiometer Angle Position Sensors
Brand: all-electronics-online.com
SKU: 731672682
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 8-18/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Electrical Characteristics	Range of nominal resistance	100Ω~100KΩ
	Resistance tolerance	±5%
	Terminal resistance	≤±0.2%R or 5Ω
	Peak Noise	≤100Ω
	Insulation resistance	≥ 200MΩ (100V AC)
	Withstand voltage	500V (DC or AC peak value)
	Electrical angle	3600° ± 10 °
	Rated power	2W ( 300V 70 °C )
	Temperature range	-55°C~+125°C
Environment Characteristics	TCR	±100×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min,	ΔR≤±2%R,
	+125°C/30min, 5 cycles)	ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
	Electrical endurance (2W, 1000h)
	Electrical endurance (2W, 1000h)	ΔR≤± 3%R
	Mechanical endurance (1000 cycles)
Physical Characteristics	Total mechanical travel	3600° ± 10 °
	Rotational torque	2-10mN.m
	Standard package	50 pcs /box
	Standard package

Sample:

1. Free charge sample: Could provide(less than 5 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Prod Model:	WD
Mechanical Point Of View:	300c+/-5c
Electrical Angle:	280c+/-10c
Outer Diameter:	20mm
Rated Power:	2W
Life:	5000000 Times
Resistance:	Variable Resistor
Function For Resistance:	Protective Resistor
Installation:	SMD Resistor
Material:	Metal Film Resistor
Package Type:	Throught Hole
Type:	Rotary Potentiometer
Shape:	Round
Brand:	Lgswitch

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
