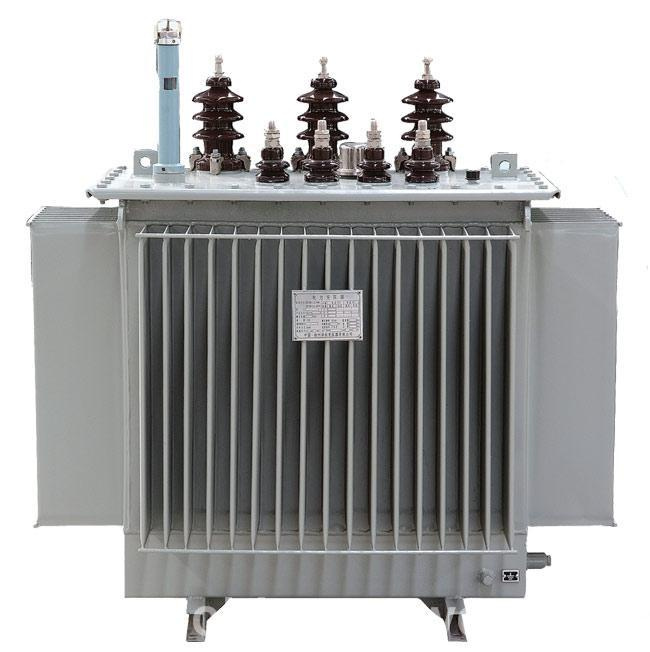

High Quality S11 Series 10kv Power Transformer
Product introduction
S11 series transformer is one kind of low loss copper winding product. It adopts high quality material, especially applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load and the load loss are obviously reduced, the performance and structure are more reliable and superior.Product Features1.Good Economic PerformanceBased on S9 series, the no-load loss for S11 series products decreased averagely 10.3%, no-load current decreased 22.4%.
2.Long Service LifeTransformer tank adopts fully sealed structure, fuel tank and tank rim can be connected by bolts or welded firmly, the transformer oil doesn't contact with the air, extending the service life.
3.High Operational ReliabilityImprove the relevant sealing parts for the fuel tank, increase the reliability and advance the technical level to ensure the reliability of the seal.
4.Small Installation AreaS11-M series of transformer tank uses the corrugated plate radiator. when the oil temperature changes, the corrugated board expands from the heat and contracts from the cold, which can replace the role of the oil conservator, the corrugated plate type fuel tank has beautiful appearance, less occupied area
.Product Specification
Model No. | Voltage Combination | Connection Group Symbol | No-load Loss | Load Loss | Impedance Voltage (%) | No-load Current(%) | Length L(mm) | Width W (mm) | Height H(mm) |
| High Voltage | Tapping Range of High Voltage | Low Voltage |
| S11-30/10 |
6
6.3
10
10.5 |
±5%
±2×2.5% |
0.4 |
Yyn0 (or)
Dyn11
| 0.1 | 0.6 |
4.0
| 2.8 | 980 | 735 | 1145 |
| S11-50/10 | 0.13 | 0.87 | 2.5 | 1017 | 758 | 1205 |
| S11-63/10 | 0.15 | 1.04 | 2.4 | 1035 | 785 | 1285 |
| S11-80/10 | 0.18 | 1.25 | 2.2 | 1065 | 800 | 1290 |
| S11-100/10 | 0.2 | 1.5 | 2.1 | 1072 | 820 | 1305 |
| S11-125/10 | 0.24 | 1.8 | 2.0 | 1155 | 1105 | 1310 |
| S11-160/10 | 0.28 | 2.2 | 1.9 | 1235 | 850 | 1535 |
| S11-200/10 | 0.34 | 2.6 | 1.8 | 1282 | 860 | 1557 |
| S11-250/10 | 0.4 | 3.05 | 1.7 | 1310 | 940 | 1605 |
| S11-315/10 | 0.48 | 3.65 | 1.6 | 1465 | 1120 | 1915 |
| S11-400/10 | 0.57 | 4.3 | 1.5 | 1440 | 1165 | 1725 |
| S11-500/10 | 0.68 | 5.15 | 1.4 | 1510 | 1250 | 1845 |
| S11-630/10 | 0.81 | 6.2 | 1.3 | 1650 | 1140 | 1920 |
| S11-800/10 | 0.98 | 7.5 |
4.5 | 1.2 | 2125 | 1175 | 2315 |
| S11-1000/10 | 1.15 | 10.3 | 1.1 | 2150 | 1380 | 2570 |
| S11-1250/10 | 1.36 | 12.0 | 1.0 | 2355 | 1485 | 2570 |
| S11-1600/10 | 1.64 | 14.5 | 0.9 | 2335 | 1750 | 2630 |
Why Choose us1.Specilized in manufacturing of oil-immersed power transformers,dry-type transformers, box-type substation,high and low voltage switchgear assembly and special-type transformers since 2008.
2.With the production capacity of value of 1000000kva,our transformers have been widely used in power plants, chemicals, construction, mining, metallurgy, rail transportation and so on.
3.All our products are ISO9001-2015 and CE certified,we also have a strong R&D team to meet any requirements of yours.
4.With great experience of the international transformer projects.Certifications
Our CompanyBuilt in 2008,Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City, with an advantageous geographical location and convenient transportation.
With an area of 30,000 square meters, and building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
Mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers.
With the whole set of the hoisting, tooling and testing equipments. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standard.

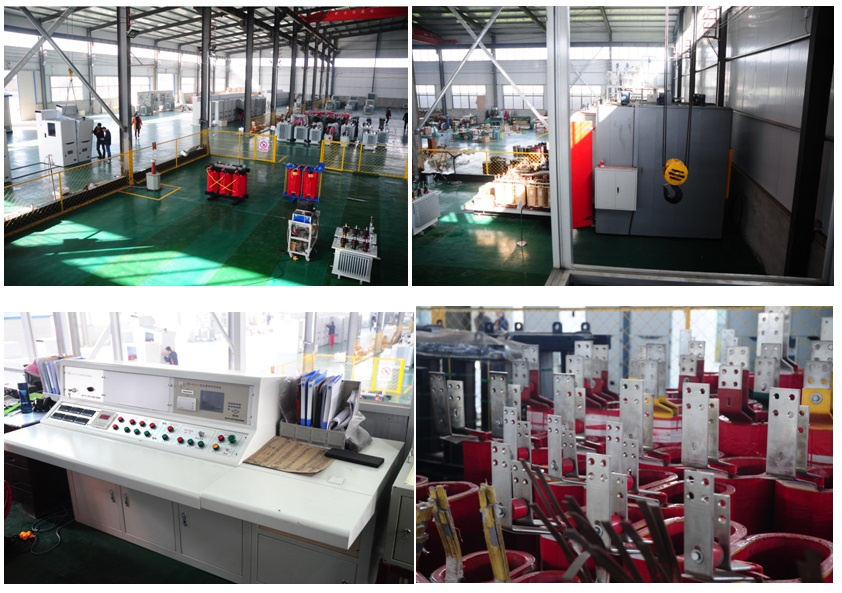

Our Facilities

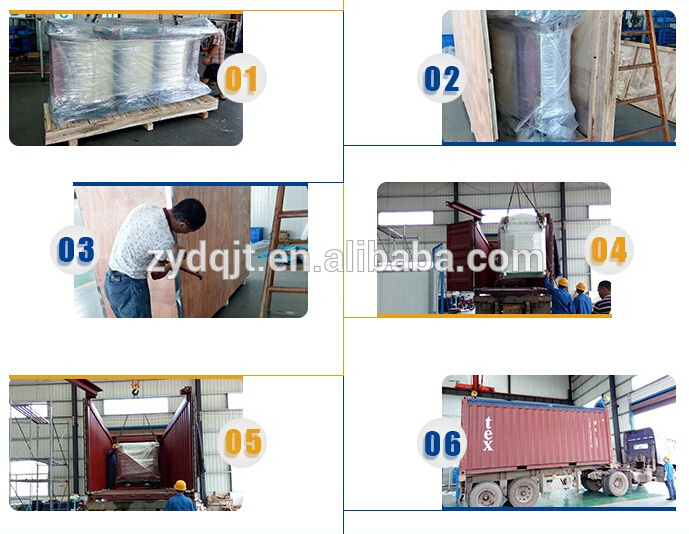

Packing&DeliveryPacking details
1.Wrapped with plastic film
2.Fixed in a wooden case
3.Wooden case on a palletDeliveryWIthin 15 work days after the payment received or as customers order quantity.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacture since 2008 with three factory of transformer housing and transformer core and all kinds of transformers,substation,switchgear.
Q: How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock according to customers quantity.
Q: What about the OEM
A: Yes, OEM and ODM service is also accepted.
Q: What is your terms of payment ?
A: The payment term is 30% T/T in advance ,balance before shippment.
