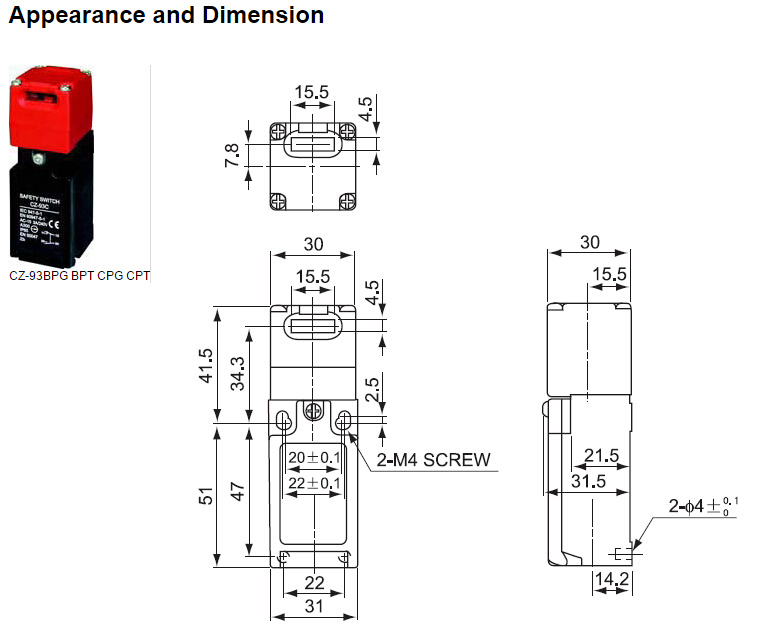

High Quality Safety Key Interlock Switches IP65 Limit Switch CZ-93
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Safety key interlock switches operate by detecting the opening of guards such as doors and gates. When the gate is open and the safety interlock is disengaged, its positive opening contacts shut down.
Safety key interlock switches are available in any of three retention forces: 7 lbs. to perform consistently and reliably on average size doors and gates, 22 lbs. to hold very heavy doors closed, and 2 lbs. for light plexiglass covers and guards
| Designation | Signal | Description |
| 1. Type | CZ-93 | Safety switch |
| 2. Type of contact blocks fitted | B | 2B (2NC) |
| C | 1A1B (NO-NC) |
| 3. Conduit entries | PG | PG 13.5XP1.5 |
| PT | PT1/2X14UNC |

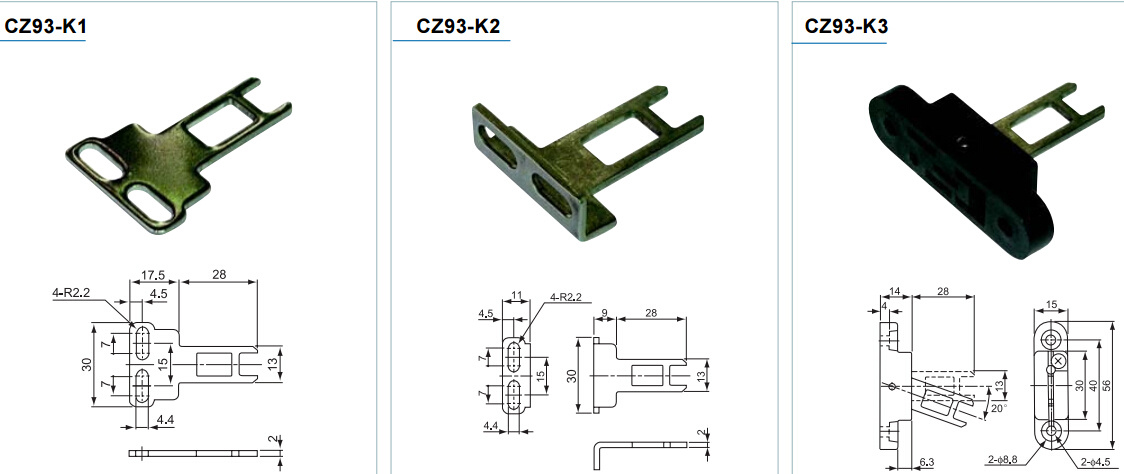

| 4. Actuating keys | None | None |
| 01 | Horizontal |
| 02 | Vertical |
| 03 | Adjustable |
| Rated Voltage (V) | Noninductive Load (A) | Inductive Load (A) |
| Resistance Load | Lamp Load | Inductive Load | Motor Load |
| NC | NO | NC | NO | NC | NO | NC | NO |
125VAC
250VAC
400VAC | 10
10
10 | 3
2
1.5 | 1.5
1
0.8 | 10
10
3 | 5
3
1.5 | 2.5
1.5
0.8 |
8VDC
14VDC
30VDC
125VDC
250VDC | 10
10
6
0.8
0.4 | 6
6
4
0.2
0.1 | 3
3
3
0.2
0.1 | 10
10
6
0.8
0.4 | 6
6
4
0.2
0.1 |
| Rating | 3A 240VAC (A300) |
| Operating speed | 0.1m-0.5m/s |
| Operating frequency | 30 operations/minute |
| Contact resistance | 25mΩ max. (initial value) |
| Insulation resistance | 100mΩ min. (at 500VDC) |
| Rated insulation voltage (UI) | 400V |
| Dielectric strength | AC2500V/Umip 4KV |
| Vibration frequency | 10-55HZ,1.5mm double amplitude |
| Shock | Mechanical: Approx. 1, 000m/Sec2 (about 100G'S)
Electrical: Approx. 300m/Sec2 (about 30G'S) |
| Ambient temperature | -30ºC to +70ºC |
| Humidity | <95% RH |
| Life | Mechanical: 10,000,000 operations above
Electrical: 150,000 operations above |
| Degree of protection | IP65 (EN60947-5-1) |
| Short-circuit protective device | 10A fuse |
| Weight | Approx. 76g |
- Operating Characteristics
| Key plug in force Max. | 147.N(1,500gf) |
| Key pull out force Max. | 29.42N(3,000gf) |

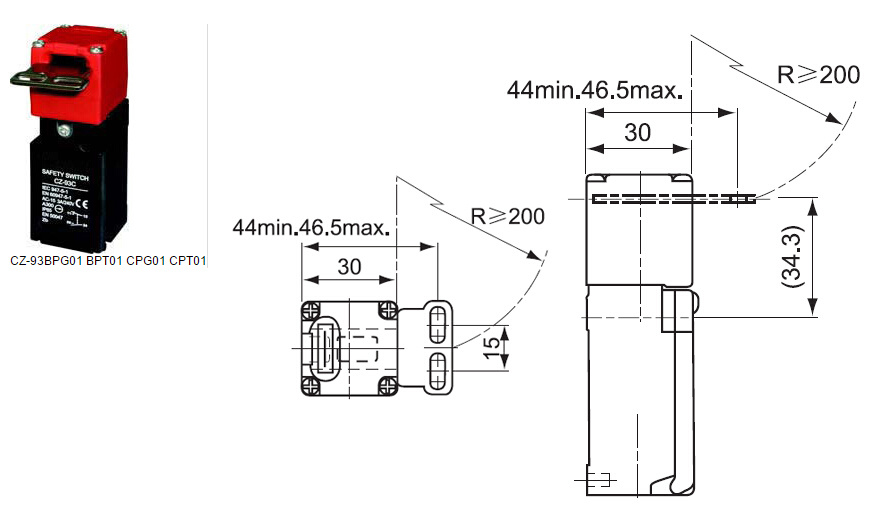

| Pretravel | 6 ± 3mm |
| Total Travel | (28mm) |
| Force required to have positive Min. | 58.84N (6,000gf) |
| Positive opening travel Min. | 10mm |
