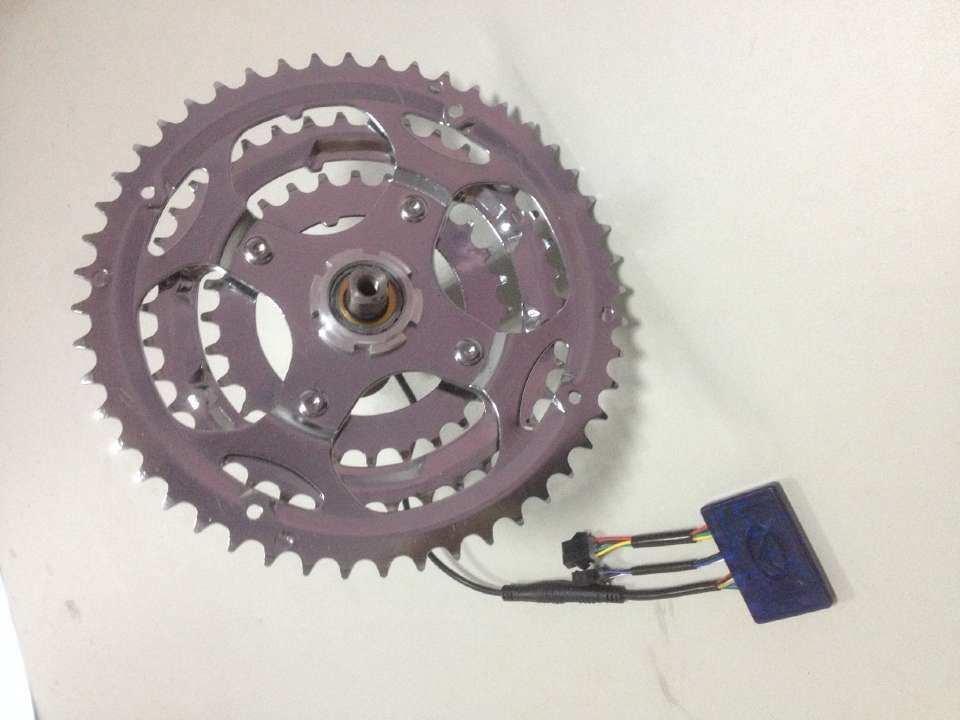

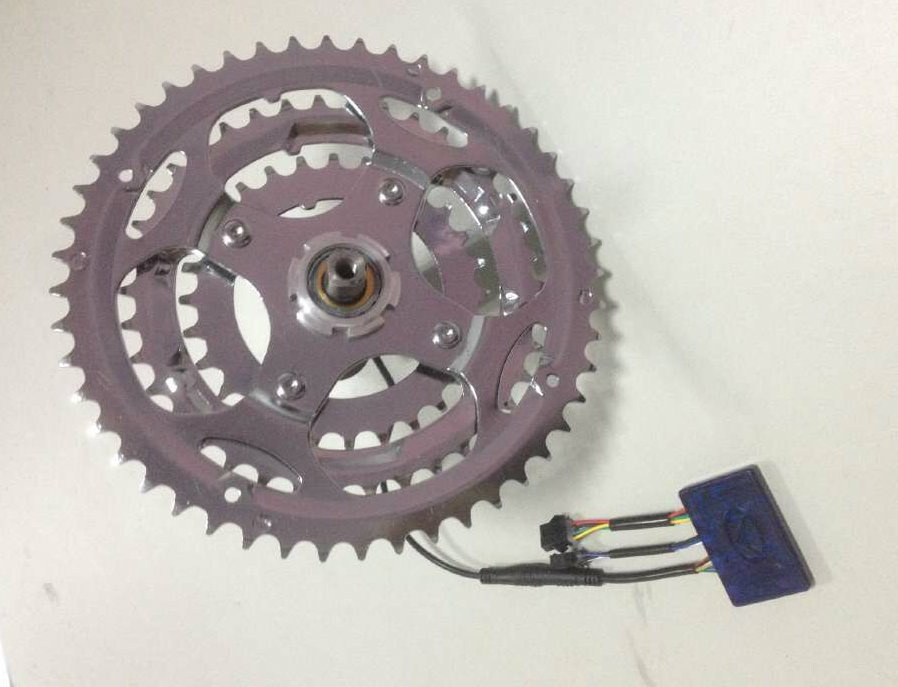

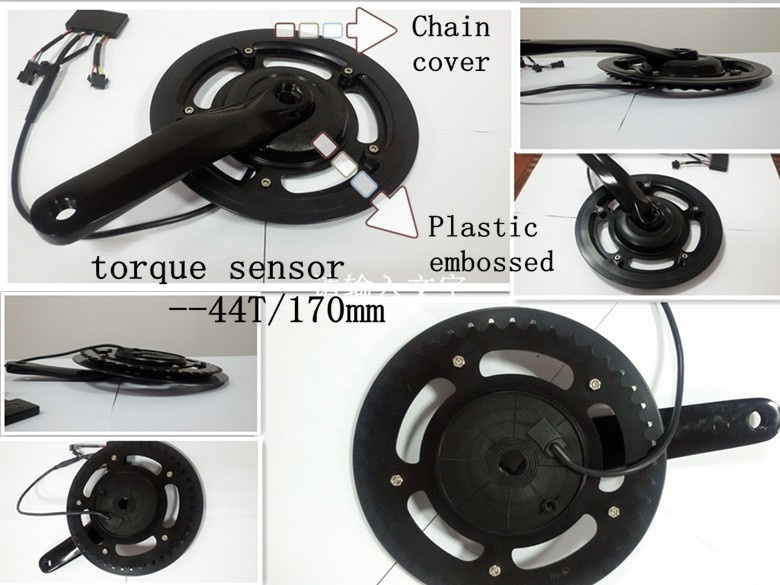

High Quality Top Electric Bicycle Torque Sensor

Name: High Quality Top Electric Bicycle Torque Sensor
Brand: all-electronics-online.com
SKU: 829243345
Availability: InStock
Rating: 4.7 (135 reviews)

Price:	US $ 50-55/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Motor	36V1000W rear drive(disc brake)
Battery	36V12AH Rear Rack Lithium battery
Controller	36V1000W 12mosfets
Throttle	YES
Display	LCD display
Brakelever	alloy
PAS Sensor	BB torque sensor
Wheel Size	24inch/26inch/28inch
Charger	US/EU/AUS standard

Product Description :

1.National patent product, with a standard length of bottom bracket (68 mm)

2.Simple assembly, good stealthiness , suitable for single speed gear disk and variable speed gear disk.

3. Linear Zero Start : it can start instantly according to the size of the one pedaled on the starting force,and according to the size of the human, Strength size is linear output ratio.

4.Good follow-up:disk can collect the signal nearly 100 times rotation a circle, the data quantity is big. and the output response in a timely manner, so the signals of torque are smooth, wide linear range and the power off timely when it stop pedaled, total time are completed in 200 ms.

5. Reliability: the structure is simple, less number of parts. Anti-interference ability:can work in turbid water.

6. Parameters of Torque Sensor

Rated Voltage 5V±0.2V

Temperature Range -20ºC~60ºC

Signal Linear : Zero Start

Working Voltage : 5V

Humidity : 10%~90%RH

Suzhou Victory Sincerity Co., Ltd

Address : No 92, Xingwu Road, Wuzhong District, Suzhou City, CHINA

Mob:+86-18251185459

Prod Model:	JC03
Work Voltage:	5V+0.2V
Running Distance:	<45km
Power:	250-350W
Temperature:	-20c~60c
Color:	Black / Silver
Output Signal Type:	Hall

Victory Sincerity Co., Ltd is located in Suzhou, We undertake to develop, design and produce the components of e-bikes, mainly about torque intelligent sensor system and relevant parts. Our company has a group of experienced experts at designing and developing various e-bikes. After six years' research and development, our company has developed torque intelligent sensor system which conforms to the European standard ---EN 15194, Japanese JIS standard. It is the national patent product. Up to now, dozens of whole-bike companies have chosen and tried our products and given us positive comments. It is the necessary part of PedElec bikes mainly exported to Europe, America and Japan. It has contributed much to enhancing the e-bike industry, upgrading the e-bikes, saving energy and protecting environment.

"Leading by technology, Developing is life, Integrity as our basis". We ceaselessly innovate with new styles based on good ideas, while deliver with reasonable price and best service. We will focus on our customers' needs. We hope to cooperate with you to create more economic benefits and social benefits.
