| Prod Model: |
transformer testing system |
| Warranty: |
12 Months |
| Power: |
Electronic |
| Humidity: |
30%~90% |
| Usage: |
Transformer Testing, Manual Control |
| Temperature: |
0~40 |
| Power Supply: |
AC220V+10% 50Hz+2% |
Product Description

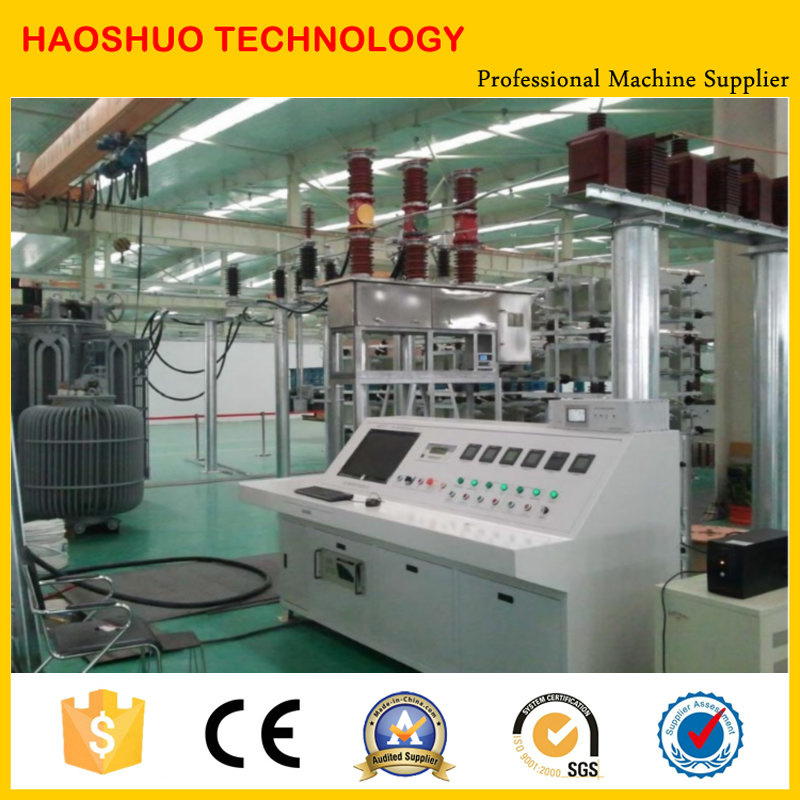

High quality Transformer Integrated Test System Equipment Machine
1.Technical requirements
1.1Object for test
35kV normal power transformer and special transformer, capacity 2500kVA or under (all current)
10kV normal distribution transformer and special transformer, capacity 2500KVA or under (full current)
1.2Object voltage classes requirements
Impedance under 8%
High voltage side: 6.3KV-35KV
Low voltage side: 0.1KV-10KV
1.3Capacity requirements
High voltage side voltage class 10KV, power transformer and distribution transformer capacity 4000KVA or under
And requirements for test standard list as follows
1.4Modeling test
Lightning impulse test
Temperature rise test
1.5Special test
Noise test
Harmonic wave analysis test
Zero sequence short circuit impedance
In all,
0.2KV - 11KV voltage is measured through high voltage current, voltage transformer by using no-load transformer load tester. High voltage current transformer (rated work voltage 20KV/150Hz) ratio option 200A, 100A, 50A, 25A, 10A, 5A, 2.5A/1A, total nine grades, precision class 0.05 level.
Voltage transformer is supposed to satisfy ratio 10KV, 6KV, 3KV, 2KV, 1KV/100V total five grades, precision is 0.05 level
