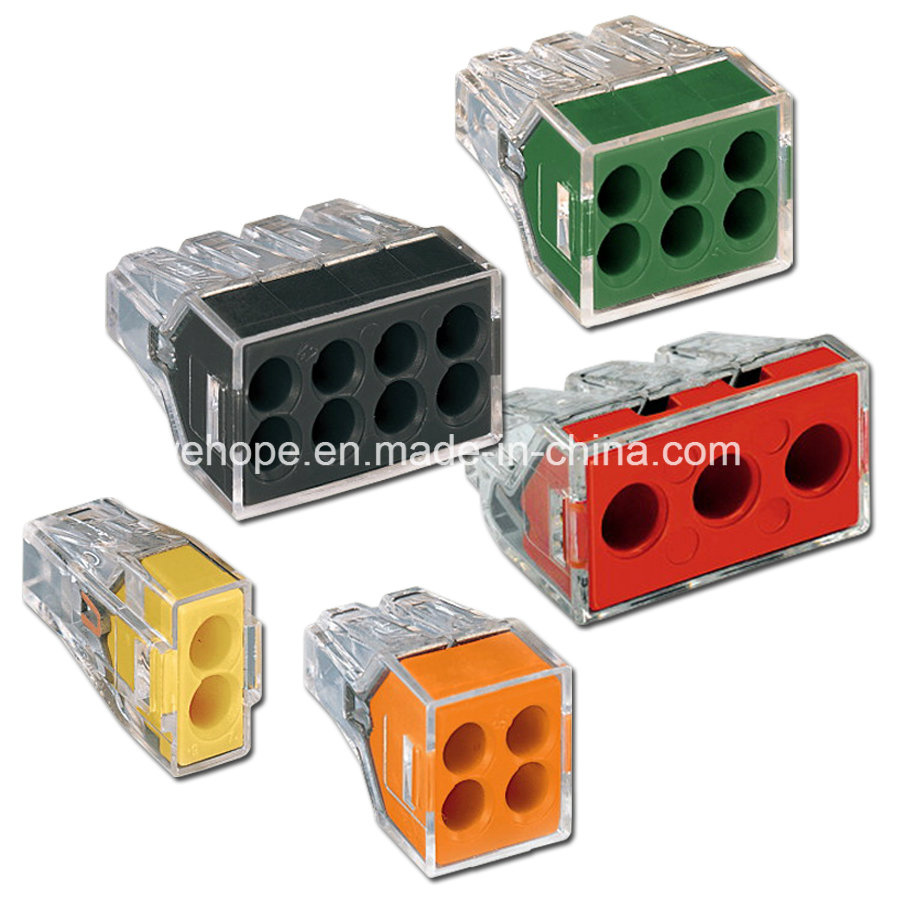

High Quality Wire Cable Connector Compact Splicing Connector

Name: High Quality Wire Cable Connector Compact Splicing Connector
Brand: all-electronics-online.com
SKU: 839593575
Availability: InStock
Rating: 4.6 (61 reviews)

Price:	US $ 0.07-0.12/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Description
Our cage spring universal connector is ideal for all kinds of wires, able to connect to any single strand or multi strand flexible wire. It can completely replace the traditional electrical tape and wire cap, with its safe, reliable and efficient method of operation and are welcome by the construction industry and decoration industry without needing tools. It has obtained the CE,ROHS certification and is the most widely used connector in Germany and Europe, the United States, Japan,etc.

PARAMETERS
Electrical Parameters: 400V/4KV/24A
Size: 19.5x24x13.1mm (length x width x height)
Application lead: 0.75-2.5mm² (Single stranded wire)
1.5-2.5mm²(Multi strand flexible wire)

Size

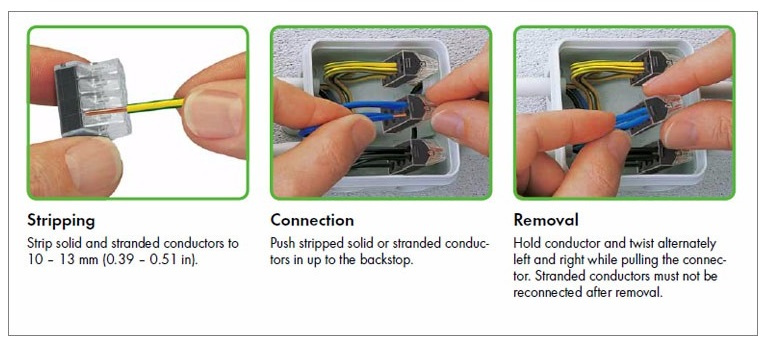

Use instructions

Widely used in :
Electric connection of chandeliers, ceiling lamps, down lights, spotlights etc.
Electric drive of the shutter, beach unbrella, the electric curtain
Electrical control of boiler
Electrical connection of fan and ventilator
Electrical control of automatic doors
All small fixed electrical connections

How to choose holes of the connector?
   Each connector, regardless of the number of holes, the interior is conducting! Therefore, how many wires we need to connect together, how many holes of the connector we choose, For example, the 4-hole connector can connect up to 4 wires, if you need to connect the wire only3, then a hole can be empty.
   Due to the conduction of each connector inside, so the wire, the zero line and ground wire are not allowed to be inserted with a same connector, otherwise it will cause a short circuit. Therefore, under any circumstance, there must be a fire wire, a zero line and a ground wire respectively!

Why the way of incoming lines for PCT connector is on the same side?
   Due to the practical application, all the wires to be connected in the junction box are from the inside of the junction box to pull out and conncet well. Therefore, whether the inlet line or outlet line, they will be in the same direction, so the inlet design of connector in the same direction can be more convenient to use.(Except for not using the juction box in certain specific cases)

Prod Model:	PCT
Wiring Type:	Side-Entry
Current Intensity:	24A
Strip Length:	12mm
Measured Voltage:	400V
Applicable Lead:	0.75-2.5mm2
Application:	Mobile Phone
Environmental Protection:	General
Type:	Spring Terminal
