| Prod Model: |
HW-D205B |
| Model: |
D205b |
| Encapsulation: |
to-5 |
| IR Receiving Electrode: |
0.7*2.4mm |
| Element Type: |
4 Elements |
| Transmittance: |
>/= 75% |
| Window Size: |
4.9*4.9mm |
| Spectral Response: |
5-14 Micrometer |
| Operating Temperature: |
-30 Degree - +70degree |
| Sensitivity: |
>/=4300V/W |
| Operating Voltage: |
3-15V |
| Material: |
Si+ Matel |
Product Description

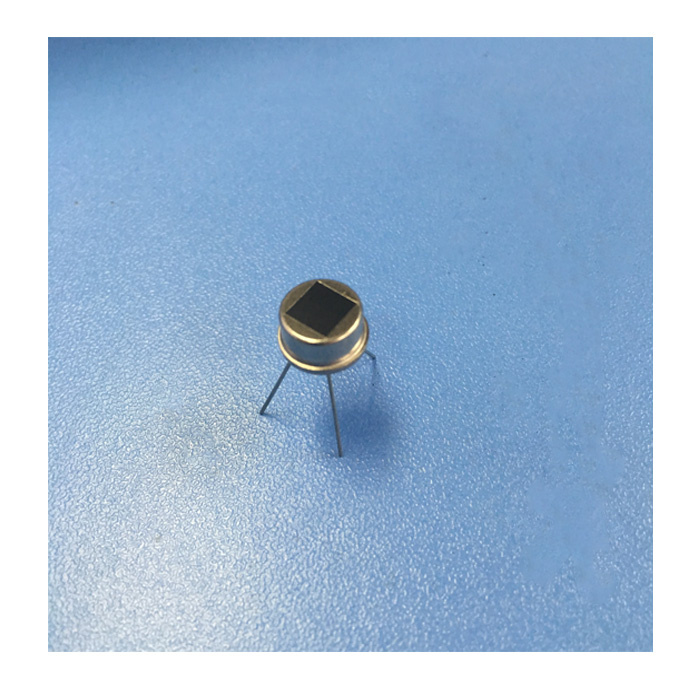

High Sensitivity 4 Elements Pyroelectric Infrared Detector (D205B)
Specifaction
| Model | D205B |
| Encapsulation | TO-5 |
| IR Receiving Electrode | 0.7*2.4mm |
| Element Type | 4 Elements |
| Transmittance | >/= 75% |
| Window Size | 4.9x4.9mm |
| Spectral Response | 5-14μm |
| Output Balance | <10% |
| Signal [Vp-p] | >2.2V |
1. Blackbody temperature 420K( 147˚C)
2. Modulation frequency 1HZ
3. Magnification 72.5 dB |
| Sensitivity | >/=4300V/W |
| Detectivity | 1.6×108cmHz1/2/W |
| Noise(Vp-p) | <200mV |
| (mVp-p) (25ºC) |
| Balance | <15% |
| Operating Voltage | 3-15V |
| Operating Current | 8.5-24μA |
| (VD=10V,Rs=47kΩ,25ºC) |
| Source Voltage | 0.4-1.1V |
| (VD=10V,Rs=47kΩ,25ºC) |
| Operating Temperature | -30ºC- +70ºC |
| Storage Temperature | -40ºC- +80ºC |
| Field of View | 115°×110° |
Working Principle
Pyroelectric infrared sensor would change charge when radiant energy changes. The effect can be used in detecting the change of infrared radiant.The sensors apply to human motion detector,passive infrared burglar alarm and automatic light switch. Based on the same theory, the pyroelectric infrared sensor applies to gas detection with infrared absorption.
Feature
1. Low noise, high detection
2. Excellent common mode balance- dual elements
3. To-39, To-5 encapsulation
4. Apply to both narrow and broad band filters
5. Signal channel or double channels pattern
6. Four elements apply to burglar alarm
Typical Application
1. Passive infrared burglar alarm: strong anti-interference for strong with light and electromagnetic radiation
2. Human motion detector
3. Human motion detector of ceiling
4. Gas analysis
5. Non-contact infrared measurement
