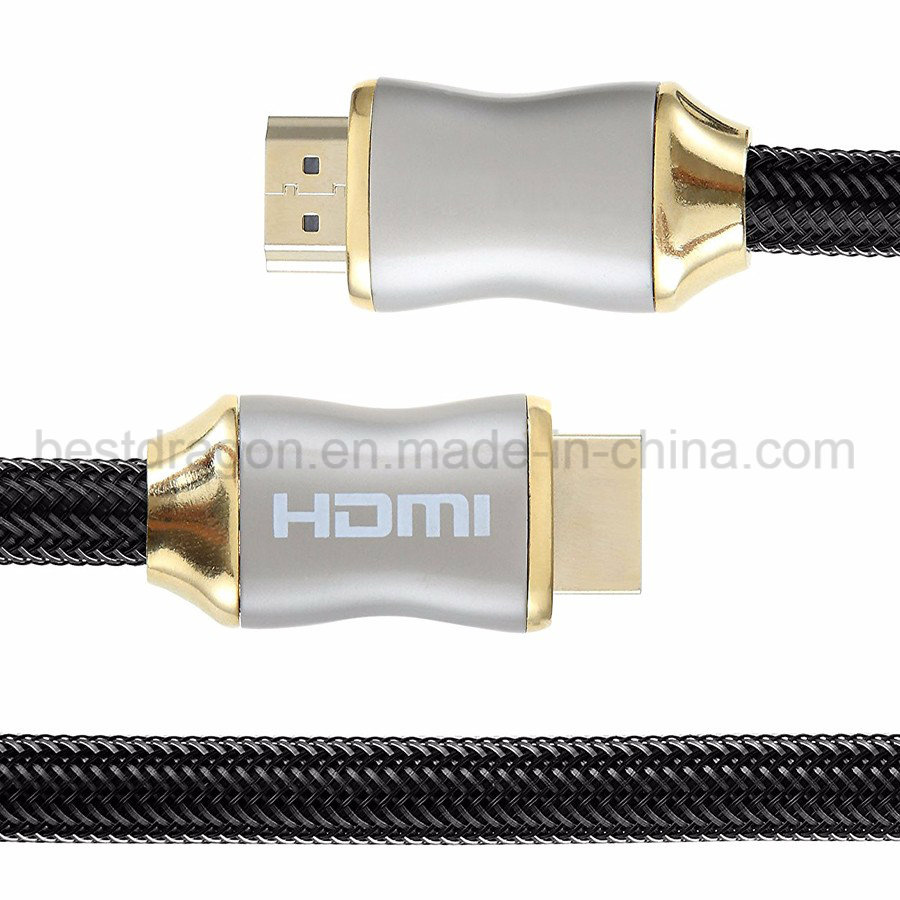

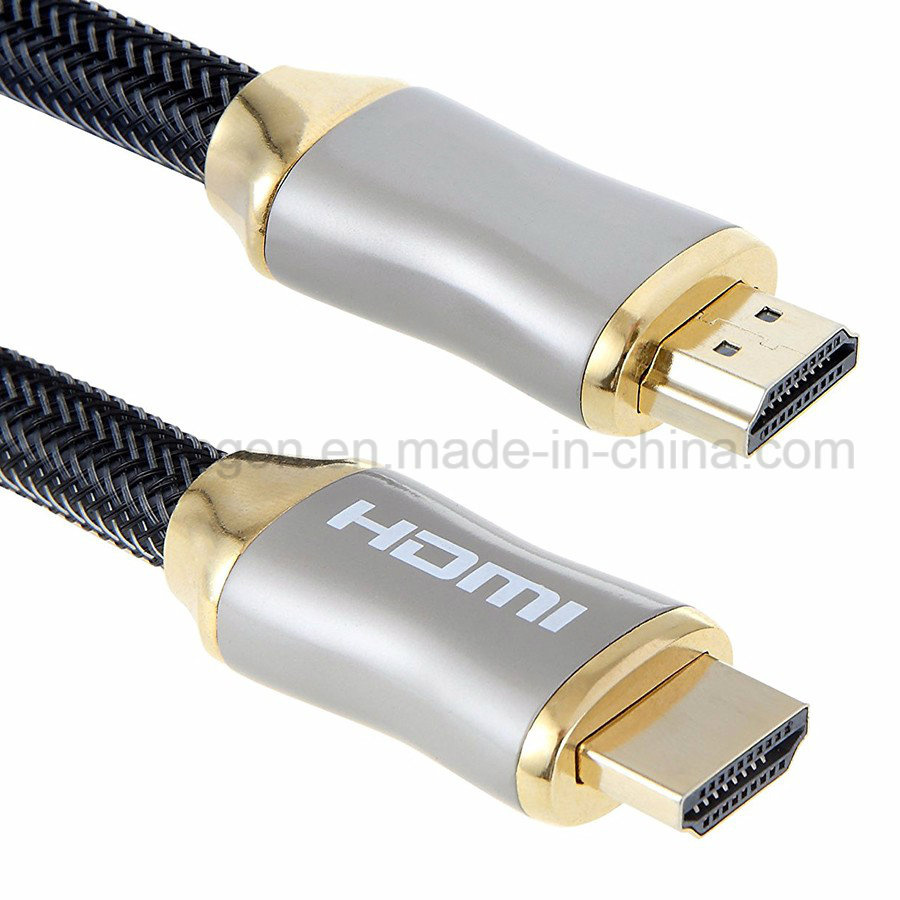

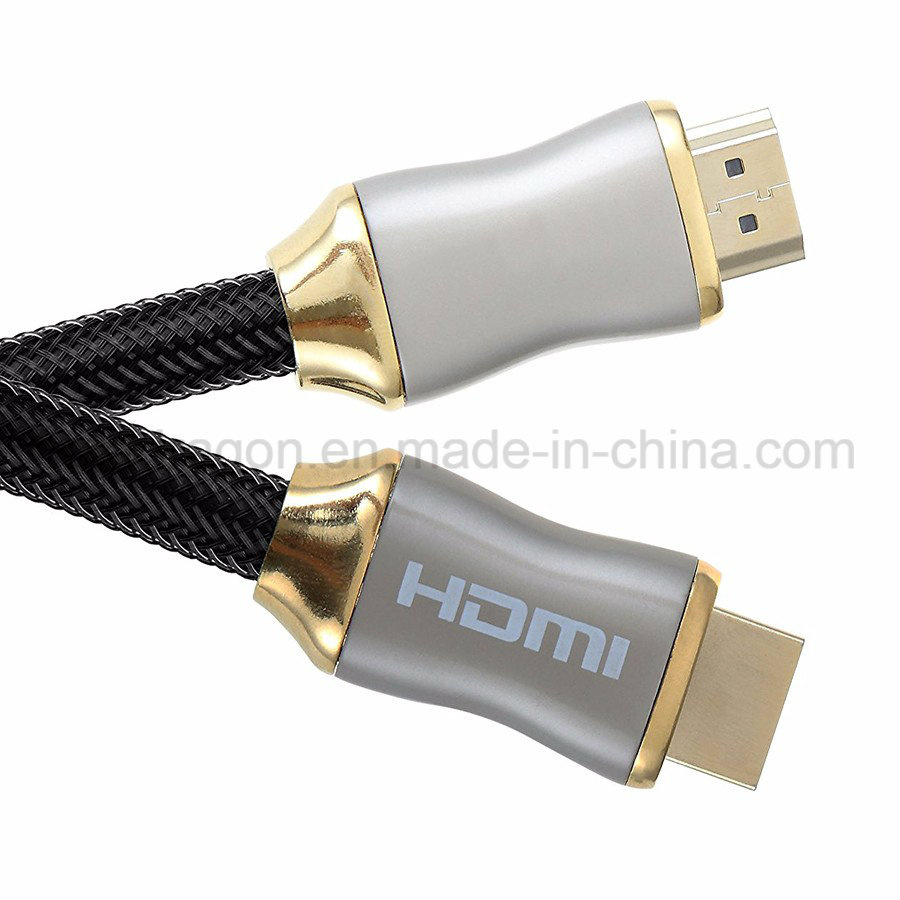

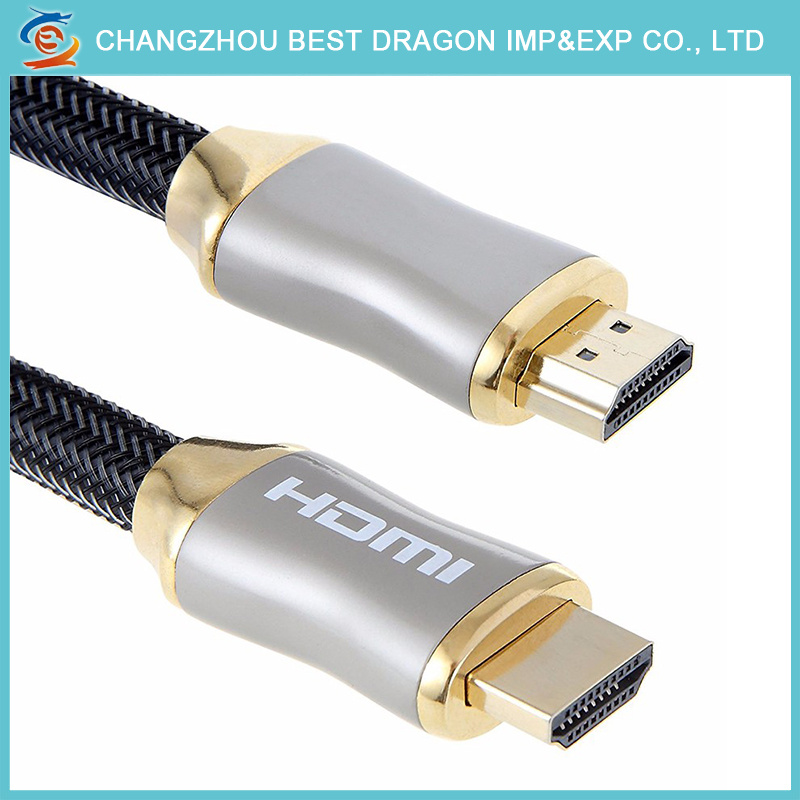

High Speed 1080P 3D Plug Male to Male HDMI Cable | SPECIFICATIONS |
| Conductos | bare copper |
| Insulation | Outer Jacket with protective nylon sleeve. (color optional) |
| Insulation (inner jacket) | HD-PE |
| Insulation (Outer jacket) | Environmental PVC jacket/protective nylon sleeve. (color optional) |
| Contacts | 24K Gold Plated |
|
| Connectors | Zn or Al alloy Metal shell type |
| Available lengths | 1-10m |
| Available terminations | HDMI,19PIN,Male to Male, Version 1.4v, up to 1440P |
| Shielding | AL+ ML+ Braiding+ Ferrite(optional) |
| OD | 9.0/8.0/7.3/6.0mm |
| AWG | 28/30 |
| | |
| ELECTRICAL |
| Quality Control | operation according to regulations rules in ISO9001:2008 |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M min |
| Contact Resistance | 2 ohm max |
| Data transfer rate | 18Gbps Max |
| Differential Impedance | 100±10Ω(TDR) |
| Available gauge | 24/26/28/30AWG |
| Working Temperature | -25C-80C |
| FEATURES |

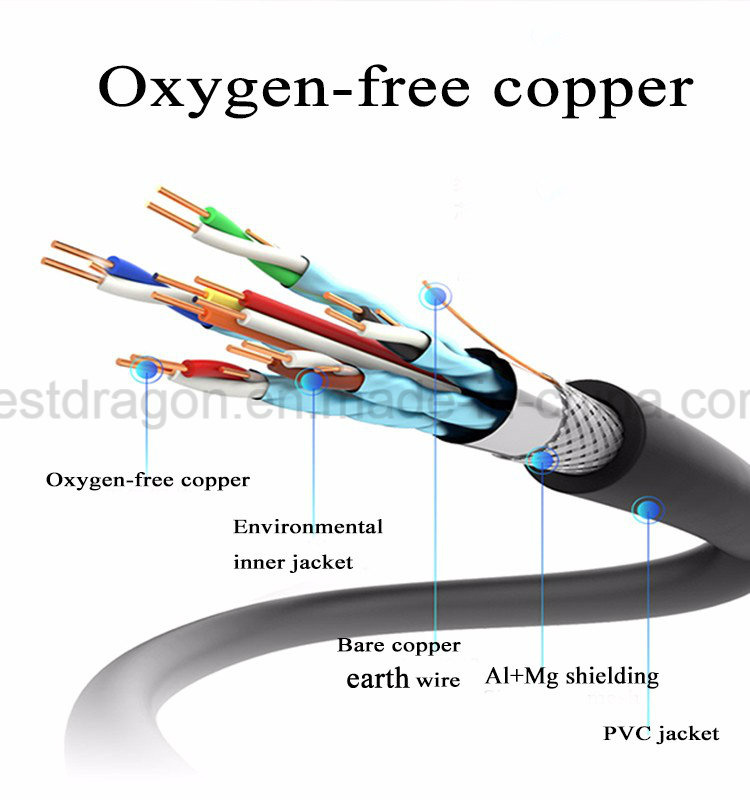

| 1) Center conductor: high quality digital signal delivered by oxygen-free copper |
| 2) Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability |
| 3) Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference |
| 4) Outer shield:95% copper braid shield, prevents most low frequency noises and interference. |
| 5) function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices. |
| 6) High density triple shielding for maximum rejection of EMI and RFI |
| 7) Transfer speed: 18Gbps Max |

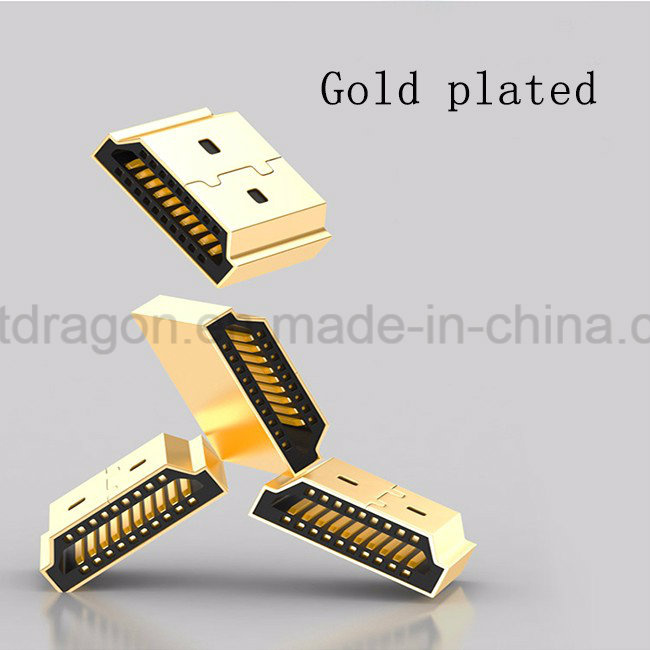

| 8) connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance |
9) Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain,
chrome (As Your Request) |
Packing:
1) Inner packing: Wooden reel, plastic reel available.
2) Outer packing: Cardboard box, pallet customers'request available.
3) Other packing available according to client's request
Samples:
1) We can make the samples according to customer's samples or designs.
2) Our designer team can finish the samples timely, the exact sample delivery time depends on.
Order and Mass Production:
1) We will send PROFORMA INVOICE to you when the order is confirmed.
2) Quality is under the control and supervision during the production.
3) Packing information will be confirmed before the production finished, If no special requirment, using our normal package.
FAQ:
* What's your company MOQ?
Our company has MOQ requirement, but we also accept small quantity.
* Whether these products quality assured ?
Most of cables are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
* When I want customized products, how to do?
We have Equipped with professional equipment, technicians & skilled employees, OEM & customized service is welcome. Drawings / samples are required.
* Can you send a sample for us to test?
1. If we have inventory and total amount is small,it's free.
2. If we don't have inventory, sample and freight cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
*After I pay, what about the lead time and shipping method?
Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish. As for the Lead time, 10~20 days.
Baoying Best-Dragon Electronic Co., Ltd. is a professional manufacturer which produces audio and video cables, coaxial cables, HDMI cables, speaker cables, telephone cables LAN cables, RCA cable and various connectors. Our products are mainly exported to India, America, German, Sweden, Israel and other European countries. We have a strong technical team, advanced production techniques and equipment as well as state-of-the-art testing instruments. We are able to improve existing product lines and create new series. Thus we are well equipped to complete OEM orders, designing and manufacturing products according to clients' specific requirements. Moreover, we can control the quality better and give our buyers the best price and the best service.
Welcome to visit our company in Changzhou City - two hours way from Shanghai. We are looking forward to cooperating with all the customers in the world.
