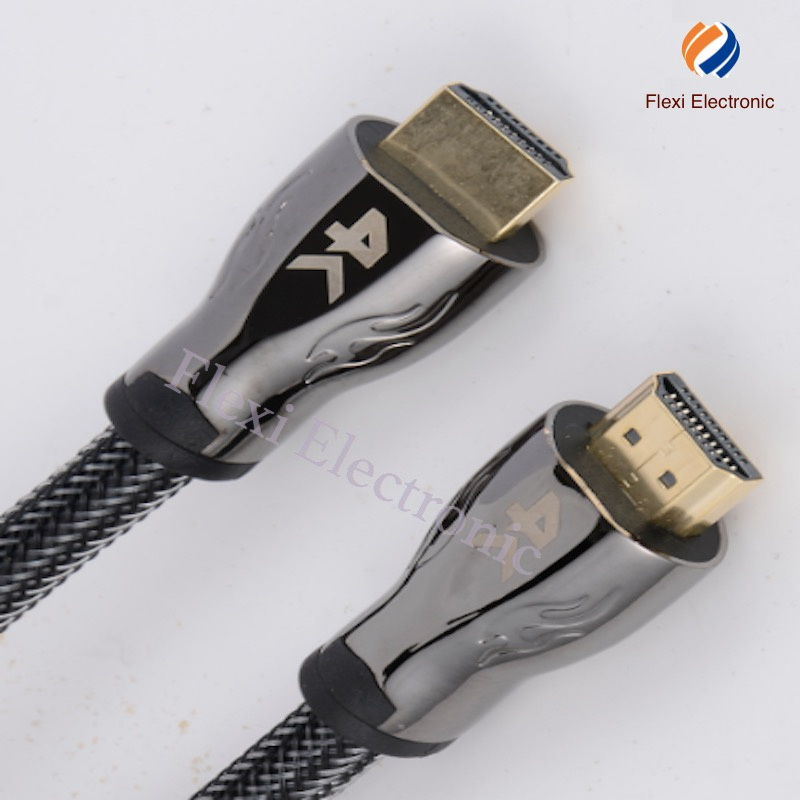

High Speed 3D Supports Aluminum 7m Cable V2.0 Bulk HDMI Cable 4k

Name: High Speed 3D Supports Aluminum 7m Cable V2.0 Bulk HDMI Cable 4k
Brand: all-electronics-online.com
SKU: 720761402
Availability: InStock
Rating: 4.6 (135 reviews)

Price:	US $ 0.9-7.9PCS
Min Order:	100PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Specifications

hdmi cable 2m real 1080P
SPECS:30# 28# 26# 24# 22#
A:gold B:nickel C:Ferrit coro D:Cable braiding

Wire Specification:

1.Related temperature:80 C

2.Reted voltage:30 V

3.Reference standard: High-Definition

Multimedia Interface Specification Version 1.4

4:Standed tinned copper conductor,32-22 AWG

5:color0coded Foam PE or PE insulation

6.Over 85% coverage tinned copper or copper alloy nraid shield

7.Lead free PVC jacket

8.Passes UL VW-1 & CSA FT1 vertical flame test

Electrical Characteristic:

1.Differential Impedance(20 C):100±10Ω

2.Differential Delay≤4.50n s/m

3.Propagation delay skew: within a pair:≤111 ps/m,between paris:≤1.78 ns/m

4.Far End Cross-Talk:≤-20dB,1-5100MHz

Application:

1.HDMI supports high-definition video,plus multi-channel digital audio on a single cable

2.HDMI provides a digatal audio and video interface between any source,such as a set-top box,DVD player,AV receiver and a digital television(DTV)

HDMI 1.3 Basic Spec
Part No	Core	Conductor		Insulation			Inner Shield		Overall Shield		Jacket		Conductor Resistance at 20 Max. Ω/km
Part No	Core	AWG	No./mm	Material	Thick/mm	Dia/mm	Drain Wire	Freeedge Foil/Mylar	Dual-Al-Mylar	Braid(No/No/mm)	Nom Thick/mm	Dia/mm	Conductor Resistance at 20 Max. Ω/km
FLX-H1	4P	32	7/0.080	Foam PE&skin	0.16	0.58	7/0.08	Y	Y	16/8/0.10	0.51	5.00	588
	1P	30	7/0.102	HDPE	0.12	0.55							381
	5C	28	7/0.127	HDPE	0.15	0.70							239
FLX-H2	4P	30	7/0.102	Foam PE&skin	0.23	0.76	7/0.102	Y	Y	16/9/0.10	0.51	6.00	381
	1P	30	7/0.102	HDPE	0.12	0.55							381
	5C	28	7/0.127	HDPE	0.15	0.70							239
FLX-H3	4P	28	7/0.127	Foam PE&skin	0.23	0.95	7/0.127	Y	Y	16/11/0.12	0.55	7.30	239
	1P	28	7/0.127	HDPE	0.15	0.70							239
	5C	28	7/0.127	HDPE	0.15	0.70							239
FLX-H4	4P	26	7/0.160	Foam PE&skin	0.38	1.25	7/0.160	Y	Y	24/8/0.12	0.52	8.50	150
	1P	26	7/0.160	HDPE	0.21	0.90							150
	5C	26	7/0.160	HDPE	0.21	0.90							150
FLX-H5	4P	24	7/0.200	Foam PE&skin	0.48	1.60	7/0.200	Y	Y	24/9/0.12	0.54	10.00	94.2
	1P	26	7/0.160	HDPE	0.21	0.90							94.2
	5C	26	7/0.160	HDPE	0.21	0.90							94.2
FLX-H6	4P	22	7/0.254	Foam PE&skin	0.50	1.80	7/0..254	Y	Y	24/10/0.12	0.65	11.00	59.4
	1P	26	7/0.160	HDPE	0.21	0.90							150
	5C	26	7/0.160	HDPE	0.21	0.90							150

HDMI 1.4 Basic Spec
Part No	Core	Conductor		Insulation			Inner Shield		Overall Shield		Jacket		Conductor Resistance at 20 Max. Ω/km
Part No	Core	AWG	No./mm	Material	Thick/mm	Dia/mm	Drain Wire	Freeedge Foil/Mylar	Dual-Al-Mylar	Braid(No/No/mm)	Nom Thick/mm	Dia/mm	Conductor Resistance at 20 Max. Ω/km
FLX-H7	4P	32	7/0.080	Foam PE&skin	0.16	0.58	7/0.08	Y	Y	16/8/0.10	0.51	5.50	588
FLX-H7	5C	28	7/0.127	HDPE	0.15	0.70			Y	16/8/0.10	0.51	5.50	239
FLX-H8	4P	30	7/0.102	Foam PE&skin	0.23	0.76	7/0.102	Y	Y	16/9/0.10	0.51	6.30	381
FLX-H8	5C	28	7/0.127	HDPE	0.15	0.70			Y	16/9/0.10	0.51	6.30	239
FLX-H9	4P	28	7/0.127	Foam PE&skin	0.23	0.95	7/0.127	Y	Y	16/11/0.12	0.55	7.60	239
FLX-H9	5C	28	7/0.127	HDPE	0.15	0.70			Y	16/11/0.12	0.55	7.60	239
FLX-H10	4P	26	7/0.160	Foam PE&skin	0.38	1.25	7/0.160	Y	Y	24/8/0.12	0.52	8.80	150
FLX-H10	5C	26	7/0.160	HDPE	0.21	0.90			Y	24/8/0.12	0.52	8.80	150
FLX-H11	4P	24	7/0.200	Foam PE&skin	0.48	1.60	7/0.200	Y	Y	24/9/0.12	0.54	10.50	94.2
FLX-H11	5C	26	7/0.160	HDPE	0.21	0.90			Y	24/9/0.12	0.54	10.50	94.2
FLX-H12	4P	22	7/0.254	Foam PE&skin	0.50	1.80	7/0..254	Y	Y	24/10/0.12	0.65	11.50	59.4
FLX-H12	5C	26	7/0.160	HDPE	0.21	0.90			Y	24/10/0.12	0.65	11.50	150

Workshop Details

Packaging & Shipping

Shipping Terms	DHL, UPS, FEDEX, TNT, EMS, or Collected by customer
Freight Cost	Prepaid or Collected by Customers
Delivery Date	15-20days as its order quantity
Delivery to Customer	4-5days after shipment
Package	PE bag in carton or as customer's requests
Paper Carton Size	493323.5cm, 333015cm, 262210.2cm

Our Services

MOQ	1000 pcs or as its raw material complexity
Place of Origin	Changzhou, Jiangsu, China
Price Terms	EXW, DDU, FOB shanghai, CIF, DDP
Payment Terms	PayPal, T/T, Western Union, 50% T/T in advance, balance before shipping.
Shipment Terms	By Express, By Sea, by Air, Collected by customers
Delivery Time	Usually 15-20 days, On-time delivery
Sample Time	Within 7 days.
Sample	Usually free of charge, charge cost as raw material complexity and samples quantity

1.If you have some questions or suggestions,contact us freely.

2.You can contact us by leaving us an alibaba message

3.Our working schedule:
8:30 a.m. to 6:00 p.m. (GMT +8) of Monday to Friday

On work days,we will reply you within 12 hours,
On weekend,we usually will reply you with 36hours,
All the message we will reply carefully,thanks for your patience

Prod Model:	FLX-H-35
Application:	Computer
Outer Diameter:	7.3mm
Shielding:	Combination
Connector Type:	HDMI
Gender:	Male-Male
Connector:	Nickel Plated
Jacket:	PVC or Rubber

FLEXI electronic is located in a beautiful city--Changzhou, Jiangsu, nearby the Shanghai port, which focus on customer research and development of high-end, fashion, personality 3C digital accessories. At present the company main business products includemobile power, audio video cables and various cable accessories, data cable, mobile phone frame, digital creativeaccessories and other products, with the developed provinces in China as the core, a second tier cities as the focus, with the line under the wings, leading the development of the industryleader in 3C consumption.

Now we have established a high reputation for providing quality products with competitive price. We have been concentrating on advanced management, professional working teams and integrated production facilities. Our products have been widely exported to USA, UK, South Korea, SouthAmerica, Midle-East countries, We provide OEM service for L. G etc brand, Products are widely exported to super-market.

Moreover, We are well equipped to complete OEM orders, and design and manufacture products according to clients' specific requirements.

We can provide superior quality, pretty reasonable price, high respose, Best service, Welcome to Join US for Win-Win cooperation.
