High-Tech Microwave Motion Sensor Module with Best Quality

Name: High-Tech Microwave Motion Sensor Module with Best Quality
Brand: all-electronics-online.com
SKU: 706737952
Availability: InStock
Rating: 4.7 (80 reviews)

Price:	US $ 55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Eagle 6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bea Microwave Sensor (Eagle 6):	Frequency;24.125GHz
Output:	Switching Sensor
Usage:	Position Sensor, Speed Sensor
Manufactured:	Large Output
Detection Type:	Waveband
Output Signal Type:	Microwave

Product Description

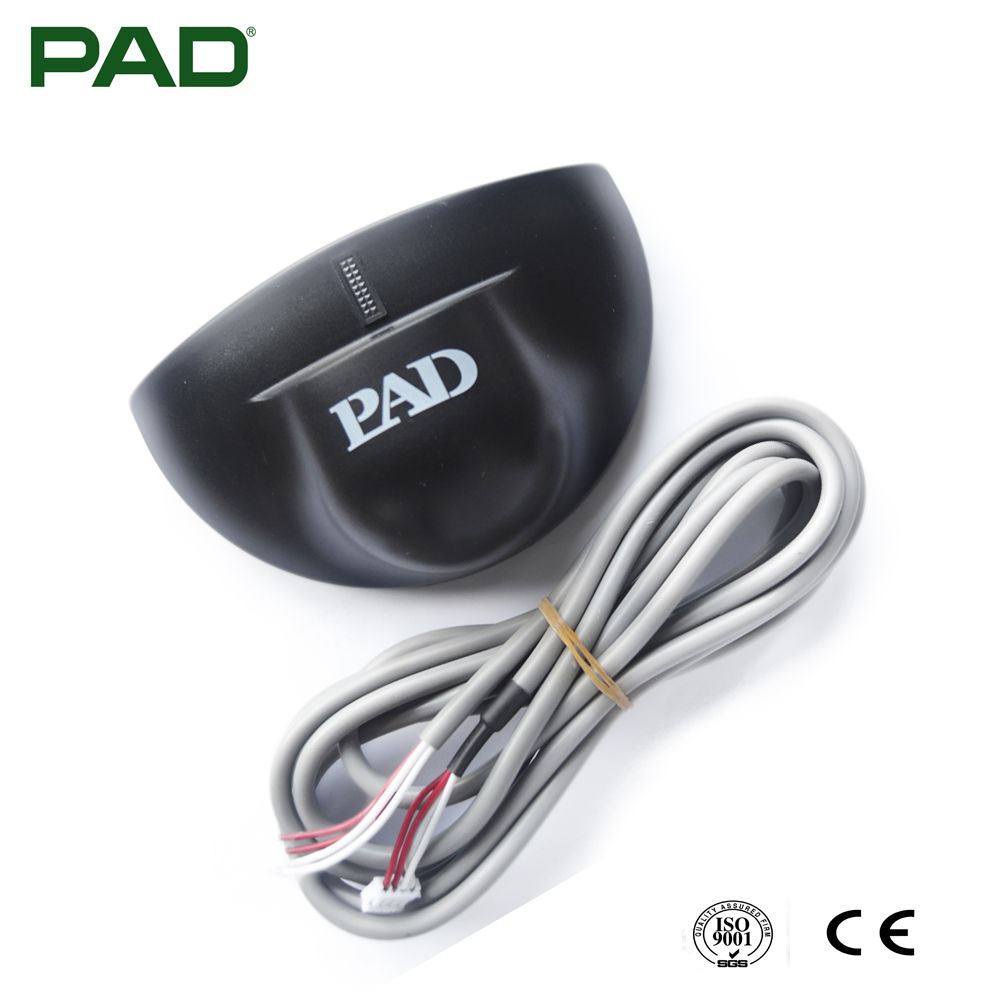

high-tech microwave motion sensor module

Automatic door component

Manufactured by famous compnaies, with high quality and sensitivity.

automatic door component
Frequency: 24.125 GHz

Supply Voltage: 12 to 24 VAC: +/- 10%

12 to 24 VDC: -10% / +30%

Mounting Height: Normal: 7'; Maximum: 10'-0"

Tilt Angle: 0° to 90° Vertical

-30° to +30° Lateral

Detection Area:

Wide13ft (W) x 6.5ft (D)

Narrow6.5ft (W) x 8.2ft (D) (supplied as optional)

Minimum Detection Speed:2 in/sec (measured in axis)

Power Consumption:< 2 W

Standard Output Relay :

Max Contact Voltage 60 VDC / 125 VAC

Max Contact Current 1 A (resistive)

Max Switching Power 30W (DC) / 60VA (AC)

Hold Time: 0.5 sec to 9 sec (adjustable)

Temperature Range:-4°F to 131F °

Dimensions:4.75in (W) x 3.15in (H) x 2.0in (D)

Weight:0.5lbs

Material:ABS

Housing Color:Black. Can be painted with non-metallic paint.

Cable Length: 6ft

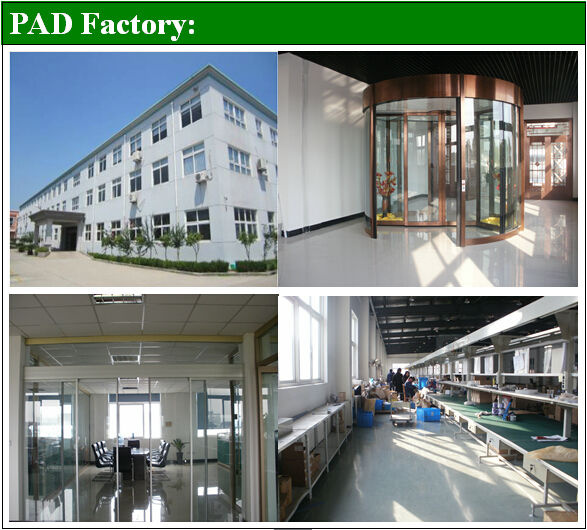

Shanghai PAD Automatic Doors Technology Co., Ltd. is a company (manufacturer) established in 2003, located near the Hongqiao airport, Shanghai, China.

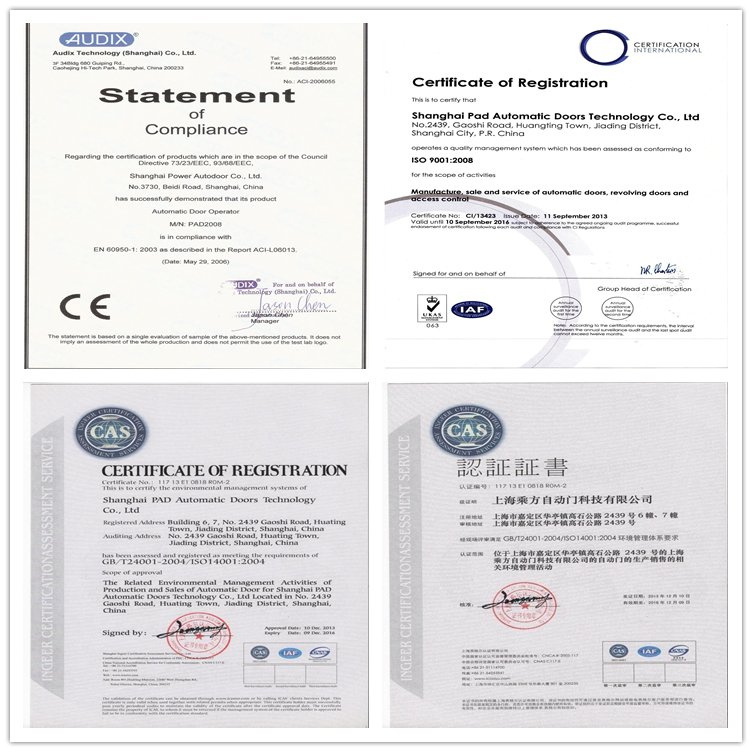

With CE and ISO9001: 2000 certificates, the company integrates Italian automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.

Today PAD products are widely adopted in 89 countries or regions around the world, and more and more customers are joining us. For someof them we provide OEM service, and for some more we deliver the goods with PAD as our common brand.

Our main products include:
A. Automatic sliding door operator
B. Automatic revolving door systems.
C. Automatic roller motors.
D. Accesories for autoamtic door industry.

Our products are mainly used in restaurants, hotels, clubs, government buildings, offices, factories, shops, residential areas, military zones, etc.

As the society develops, our products are also progressing with the times. Sincerely hope we can provide our services for more cusotmers around the world.
Welcome you to have a visit to our factory!
