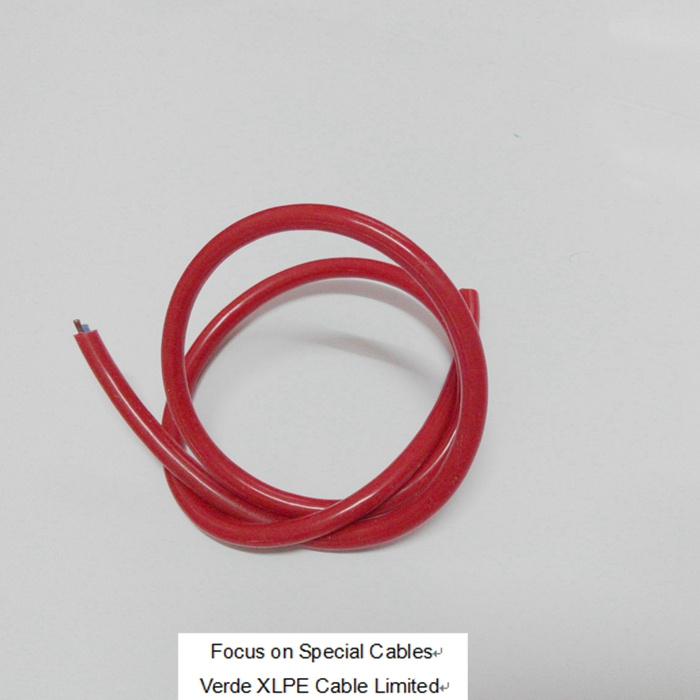

Super Flexible Cable Electric Wire 1.Description:Rated voltage 300/500V,450/750V Flexible cable
Conductor class: class5
Conductor material:Stranded Copper or Stranded Tinned Copper
Insulation:Special PVC
Sheathing:Specia PVC or Siliocne Rubber According to your request2.Specification:Core Nos.: 1core, 2core, 3core, 4core,5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........240mm2
More size and specification can be customized3.Insulation Color:Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request
4.Packing:1.100meter per roll then put into plastic bags or carton
2. at least 500meter per drum
5,Technical Data List (Just one part)More technical data specification can be sent to you by E-mail if you need.
1). H07V-R wire Type| Standard:GB/T 5023-2008,IEC60227,228, Different Standard can be customized according to your requirement |
| Description:general single core Flexible wire |
| Type in National standard:60227 IEC 02(RV) 450/750V H07V-R |
Size
(mm2) | Conductor class | Conductor Structure
Nos /dia (mm) | Nominal Thickness of Insulation
mm | Outer insulation diameter
mm | D.C Resistance of conductor
Ω/km | Calculated Weight
kg/km |
| 1.5 | 5 | 30/0.25 | 0.7 | 3.1 | 13.3 | 20.9 |
| 2.5 | 5 | 49/0.25 | 0.8 | 3.7 | 7.98 | 32.5 |
| 4 | 5 | 56/0.30 | 0.8 | 4.3 | 4.95 | 48.6 |
| 6 | 5 | 84/0.30 | 0.8 | 5.2 | 3.30 | 70.6 |
| 10 | 5 | 77/0.40 | 1.0 | 6.7 | 1.91 | 122.9 |
| 16 | 5 | 119/0.40 | 1.0 | 7.8 | 1.21 | 176.3 |
| 25 | 5 | 189/0.40 | 1.2 | 9.7 | 0.780 | 272.0 |
| 35 | 5 | 264/0.40 | 1.2 | 11.3 | 0.554 | 374.5 |
| 50 | 5 | 378/0.40 | 1.4 | 13.1 | 0.386 | 534.5 |
| 70 | 5 | 336/0.50 | 1.4 | 15.6 | 0.272 | 739.2 |
| 95 | 5 | 456/0.50 | 1.6 | 17.6 | 0.206 | 969.9 |
| 120 | 5 | 576/0.50 | 1.6 | 19.3 | 0.161 | 1186.2 |
| 150 | 5 | 720/0.50 | 1.8 | 22.8 | 0.129 | 1508.5 |
| 185 | 5 | 888/0.50 | 2.0 | 24.3 | 0.106 | 1862.5 |
| 240 | 5 | 1184/0.50 | 2.2 | 26.6 | 0.0801 | 2372.9 |
| | | | | | | |
|
| Standard:GB/T 5023-2008;GB/T 19666-2005,IEC60227,228 |
| Description:PVC insulated Fire Resistant Flexible Wire Cable |
| Type:NH-RV 450/750V H07V-R |
| Size | Conductor class | Conductor Structure
Nos /dia (mm) | Nominal Thickness of Insulation
mm | Outer insulation diameter
mm | D.C Resistance of conductor
Ω/km | Calculated Weight
kg/km |
| 1.5 | 5 | 30/0.25 | 0.7 | 3.56 | 13.3 | 25.6 |
| 2.5 | 5 | 49/0.25 | 0.8 | 4.2 | 7.98 | 38.2 |
| 4 | 5 | 56/0.30 | 0.8 | 4.77 | 4.95 | 55.0 |
| 6 | 5 | 84/0.30 | 0.8 | 5.66 | 3.30 | 77.8 |
| 10 | 5 | 77/0.40 | 1.0 | 7.16 | 1.91 | 131.8 |
| 16 | 5 | 119/0.40 | 1.0 | 8.26 | 1.21 | 186.5 |
| 25 | 5 | 189/0.40 | 1.2 | 10.16 | 0.780 | 283.8 |
| 35 | 5 | 264/0.40 | 1.2 | 11.76 | 0.554 | 388.3 |
| 50 | 5 | 378/0.40 | 1.4 | 13.56 | 0.386 | 549.8 |
| 70 | 5 | 336/0.50 | 1.4 | 16.1 | 0.272 | 756.5 |
| 95 | 5 | 456/0.50 | 1.6 | 18.1 | 0.206 | 988.1 |
| 120 | 5 | 576/0.50 | 1.6 | 19.8 | 0.161 | 1205.7 |
| 150 | 5 | 720/0.50 | 1.8 | 23.3 | 0.129 | 1529.9 |
| 185 | 5 | 888/0.50 | 2.0 | 24.8 | 0.106 | 1883.5 |
| 240 | 5 | 1184/0.50 | 2.2 | 27.1 | 0.0801 | 2394.5 |
| | | | | | | |
| | | | | | | | | | | | |

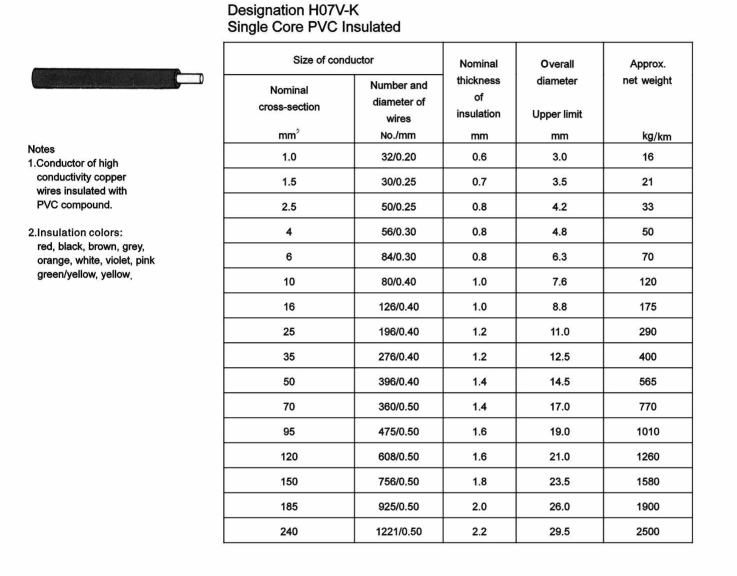

2).Single core Flexible cable (H07V-K Cable)
If you want to know more about us and our products,pls contact us.Linda LeeVice General ManagerVERDE XLPE CABLE LIMITEDTel:0086-371-55611184Mob:0086-13938400126Focus on Wires and CablesBe Your Most Reliable Supplier

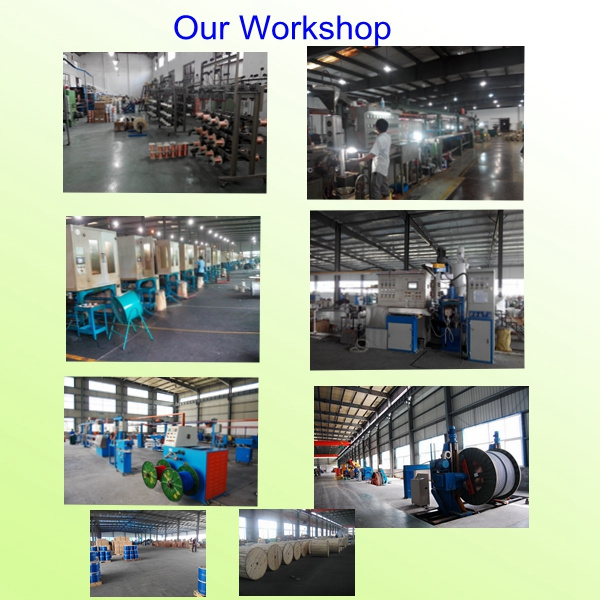

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
